Hydraulic pool lifter Metalu PK 150 kg
- PK 150 kg hydraulic lift for swimming pools
- Approved to lift 150 kg
- A water connection with 5.5 bar of pressure is required for operation
- Clockwise rotation angle 180º
- Turning radius 700 mm
- The seat has a travel of 1.056 meters
- No anchors, but a recessed bushing
- Portable and transportable
Tarifas de envío
Cada producto tiene asignada una de dos tarifas según su tamaño: tarifa plana o tarifa eco. La ficha del producto y el carrito indican cuál se aplica. Los importes llevan IVA y no tienen límite de peso ni de bultos.
| Destino | Tarifa plana | Tarifa eco | Envío gratis desde |
|---|---|---|---|
| España peninsular | 9,90€ | 6,90€ | 150€ |
| Baleares | 19,90€ | 9,90€ | 150€ |
| Portugal continental | 12,90€ | 8,90€ | 150€ |
| Alemania, Francia | 24,90€ | 15,90€ | 800€ |
| Austria, Bélgica, Italia, Luxemburgo, Países Bajos | 29,90€ | 21,90€ | 800€ |
| Dinamarca, Polonia, República Checa | 34,90€ | 34,90€ | 2.000€ |
| Eslovaquia, Eslovenia | 34,90€ | 34,90€ | 2.000€ |
| Bulgaria, Croacia, Estonia, Finlandia, Grecia, Hungría, Letonia, Lituania, Noruega, Rumanía, Suecia, Irlanda | 64,90€ | 45,90€ | 2.000€ |
Si su envío va a un país que no figura en esta tabla, contacte con nosotros. El envío gratis no incluye Canarias, Ceuta, Melilla, Azores ni Madeira.
Productos excluidos del envío gratis. Revestimientos y sus complementos, coronación, sal, cargas filtrantes, mangos telescópicos de más de 5 metros y equipos de depuración. Por su volumen y peso, sus gastos de envío se calculan y se muestran automáticamente en el proceso de compra.
Cobertores térmicos y de protección. Tienen una tarifa propia, con entrega en España peninsular, Baleares y Portugal continental:
| Importe del cobertor (IVA incluido) | Gastos de envío |
|---|---|
| Hasta 300 € | 24,90 € |
| Más de 300 € | Gratis |
El importe que cuenta es el del cobertor (o la suma de los cobertores del pedido), no el total del pedido. Si en el mismo pedido compra otros productos, sus gastos de envío se calculan según la tabla general.
Noruega. No pertenece a la Unión Europea: el pedido puede estar sujeto a impuestos de importación y trámites de aduana.
Questions about this product?
Questions about this product?
General characteristics of the PK portable hydraulic lift for swimming pools
- Approved to lift 150 kg
- For its operation it is necessary to have a water supply with a pressure of 3.5 bar. To lift 150 kg, 5.5 bar is required.
- Rotation angle: 180º, clockwise (downhill).
- Turning radius 700 m/m.
- The control knob is located to the right of the user (if the opposite rotation is required, please specify it in the order)
- The seat has a travel of 1.06 meters. Removable seat.
Operational Data of the PK portable hydraulic lift for swimming pools
- Net weight: 37 Kg
- Packed weight: 45 kg
- Climbing time empty: 24
- Rise time with 85 kg load: 27" (27")
- Lowering time empty: 50"
- Lowering time with 85 kg load: 22"
- Water capacity in piston: 9 liters

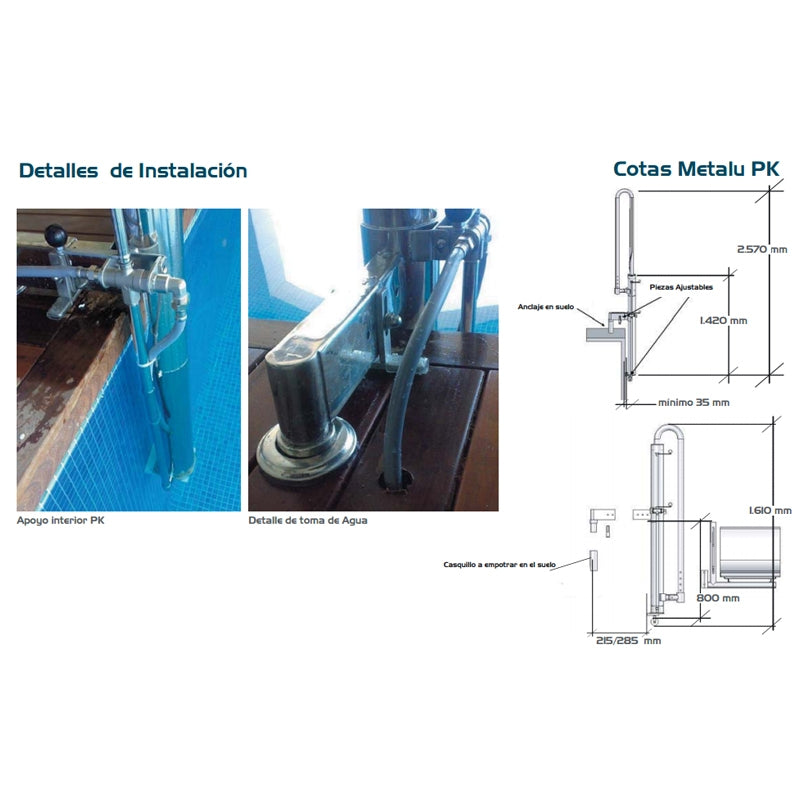

Pre-installation and Installation:
The following points should be considered when choosing the location site:
- That it is easy to access by the user.
- That it is not in a place of transit or parking by other bathers.
- That the water intake is as close as possible.
- We recommend placing the lift where the water has a depth of approximately 1.20/1.30 meters, so that if the user of the lift needs help, the person accompanying him/her can stand up safely.
- In the place where it has been decided to place the elevator, it is necessary to leave a water inlet of ½ inch and 3.5 bar. If the network does not have this pressure, a pressure group should be installed.
If the pool is already built, it is advisable to install the water intake after the lift has been installed.
- Installation is very simple.
- It only has anchorages on the outside of the pool.
Adjust the height of the seat and connect the hose to the water intake.
