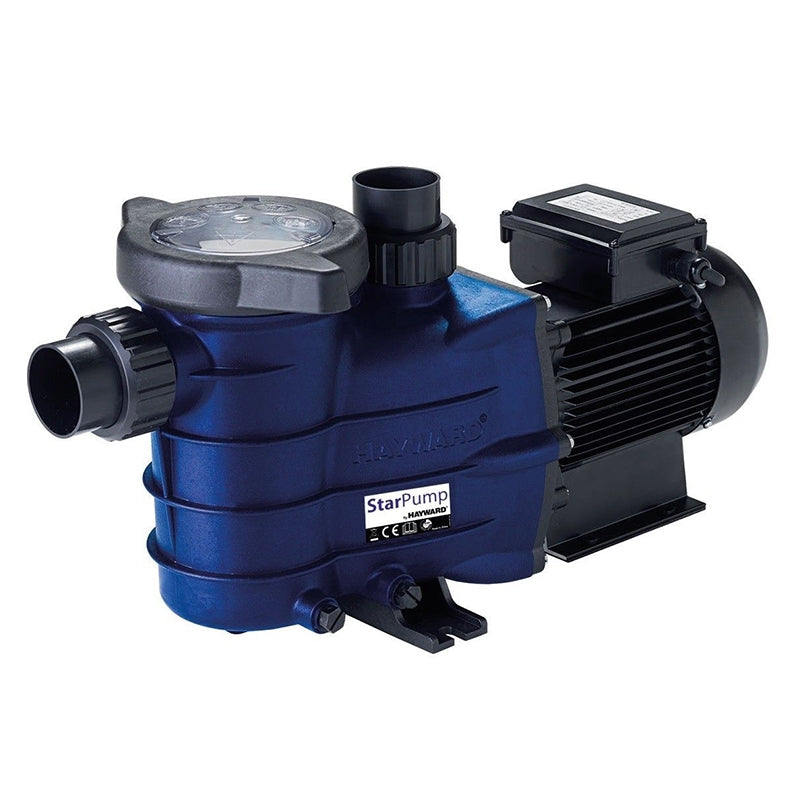

Swimming pool pump Hayward Starpump Powerline 1 HP Single Phase
- Swimming pool pump Hayward Starpump Powerline
- Power: 1 HP
- Manufacturer: Hayward
- Single-phase
- Flow rate: 15 m3/h
- 1.1 litre pre-filter basket
- Valid to replace models:
- Hayward Powerline
- Hayward Power-Flo II.
Tarifas de envío
Cada producto tiene asignada una de dos tarifas según su tamaño: tarifa plana o tarifa eco. La ficha del producto y el carrito indican cuál se aplica. Los importes llevan IVA y no tienen límite de peso ni de bultos.
| Destino | Tarifa plana | Tarifa eco | Envío gratis desde |
|---|---|---|---|
| España peninsular | 9,90€ | 6,90€ | 150€ |
| Baleares | 19,90€ | 9,90€ | 150€ |
| Portugal continental | 12,90€ | 8,90€ | 150€ |
| Alemania, Francia | 24,90€ | 15,90€ | 800€ |
| Austria, Bélgica, Italia, Luxemburgo, Países Bajos | 29,90€ | 21,90€ | 800€ |
| Dinamarca, Polonia, República Checa | 34,90€ | 34,90€ | 2.000€ |
| Eslovaquia, Eslovenia | 34,90€ | 34,90€ | 2.000€ |
| Bulgaria, Croacia, Estonia, Finlandia, Grecia, Hungría, Letonia, Lituania, Noruega, Rumanía, Suecia, Irlanda | 64,90€ | 45,90€ | 2.000€ |
Si su envío va a un país que no figura en esta tabla, contacte con nosotros. El envío gratis no incluye Canarias, Ceuta, Melilla, Azores ni Madeira.
Productos excluidos del envío gratis. Revestimientos y sus complementos, coronación, sal, cargas filtrantes, mangos telescópicos de más de 5 metros y equipos de depuración. Por su volumen y peso, sus gastos de envío se calculan y se muestran automáticamente en el proceso de compra.
Cobertores térmicos y de protección. Tienen una tarifa propia, con entrega en España peninsular, Baleares y Portugal continental:
| Importe del cobertor (IVA incluido) | Gastos de envío |
|---|---|
| Hasta 300 € | 24,90 € |
| Más de 300 € | Gratis |
El importe que cuenta es el del cobertor (o la suma de los cobertores del pedido), no el total del pedido. Si en el mismo pedido compra otros productos, sus gastos de envío se calculan según la tabla general.
Noruega. No pertenece a la Unión Europea: el pedido puede estar sujeto a impuestos de importación y trámites de aduana.
Questions about this product?
Questions about this product?

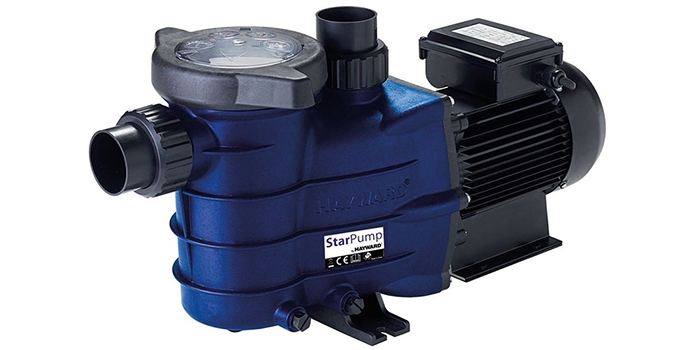

Swimming pool pump Hayward Starpump 1 hp single phase
This small sized pump is ideal for small pools, above ground pools and in-ground and tiny rooms.
- Power: 1 hp
- Current: single phase
- 1.1 litre pre-filter basket
- Flow rate: 15 m3/h
MULTI-PURPOSE
- To be glued to Ø50 mm or with adapters for Ø32/38 mm pipes
RESULTS
- Self-priming pump with closed and ventilated motor (IPX5)
- Quiet running
- High performance and resistance to chemical and salt corrosion

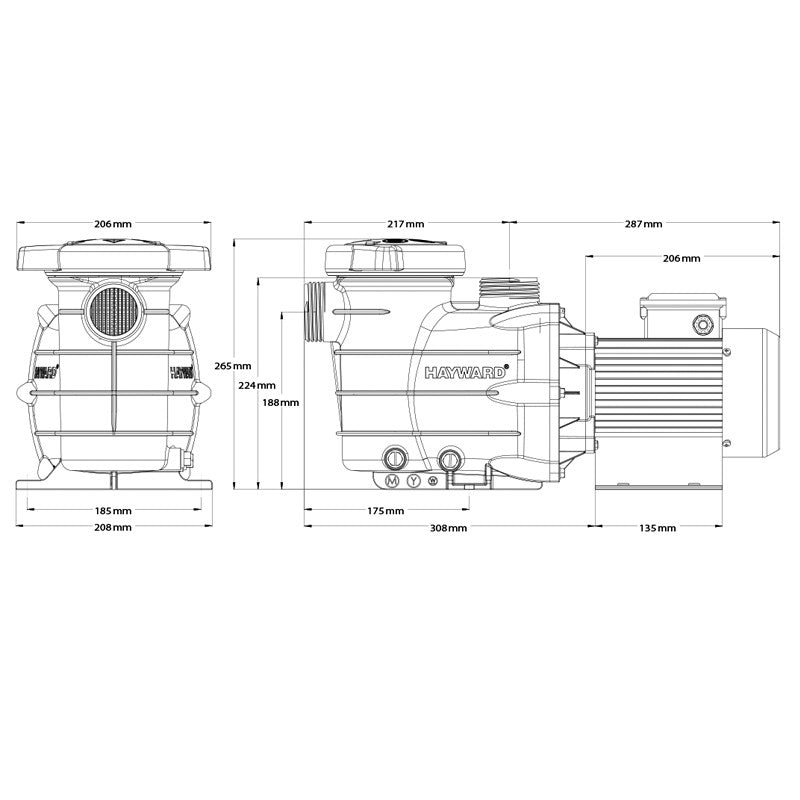

NOTE: This model is valid to replace the HAYWARD POWERLINE or HAYWARD POWER-FLO II pump. They share the same dimensions, so they are interchangeable without the need to make any modifications to the installation.

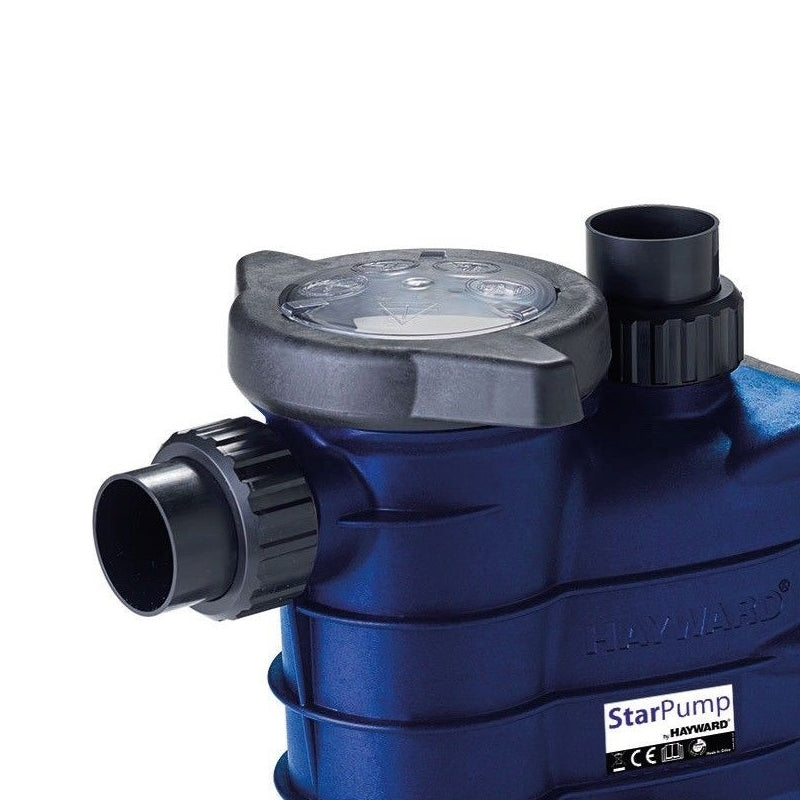

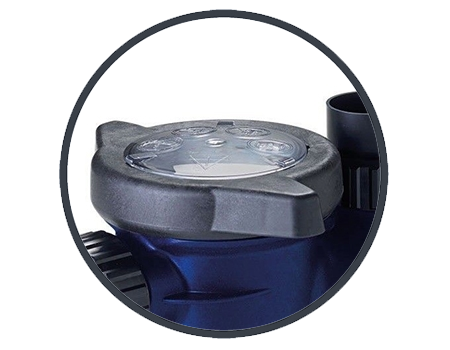

Easy access filter thanks to the twist lock lid (quarter turn opening).

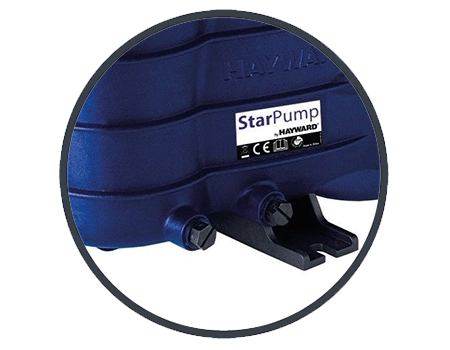

Draining plugs for easy winterisation.

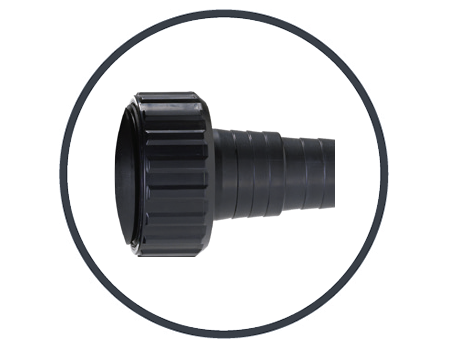

Outlet to Ø50 mm or with adapters for Ø32/38 mm pipes.
STARTING AND PRIMING INSTRUCTIONS
1. Fill the filter housing with water up to the level of the suction pipe. Never start the pump without water, as this water is necessary for cooling and lubricating the mechanical seal.
2. Open all suction and delivery valves, as well as the air vent on the filter, if fitted. Any air in the suction line needs to be vented so that it can be evacuated.
3. Start the unit and wait for priming for a certain period of time. Five minutes is not an excessive time for priming (priming depends on the suction lift and the horizontal length of the suction pipe). If the pump does not start or does not prime, see possible faults and solutions.
MAINTENANCE
1. Clean the pre-filter basket regularly; do not knock on it when cleaning. Check the seal of the pre-filter cover and replace it if necessary.
2. The motor shaft is mounted on self-lubricating bearings which do not require further lubrication.
3. Keep the motor clean and dry, and make sure that the ventilation openings are free of any obstruction.
4. Occasionally the mechanical seal may leak and must be replaced.
5. Except for cleaning activities, repairs, overhauls and maintenance must be carried out by an authorised technician of Hayward or a similarly qualified person

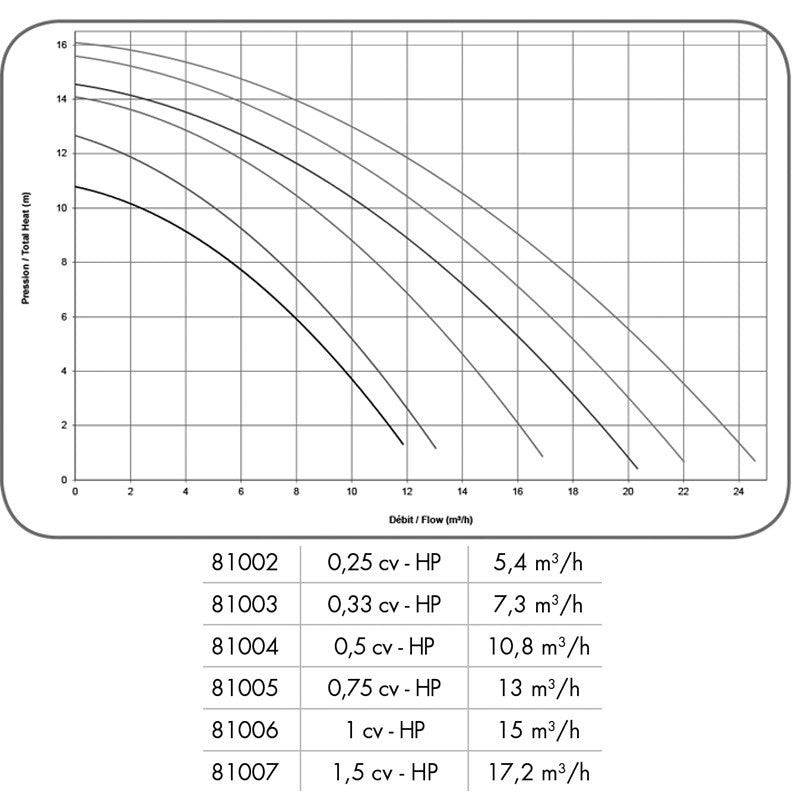

| STARPUMP POWERLINE 0,5 HP | STARPUMP POWERLINE 0,75 HP | STARPUMP POWERLINE 1 HP | |
| FLOW RATE | 10,8 m3/h | 13 m3/h | 15 m3/h |
| HEIGHT | 265 mm | 265 mm | 265 mm |
| OUTLET | 50 mm | 50 mm | 50 mm |
| WEIGHT | 8,65 kg | 9,16 kg | 9,16 kg |
| POWER CONSUMPTION P1 | 610 W | 790 W | 920 W |
| OUTPUT POWER P2 | 560 W | 610 W | 730 W |
| AMPERAGE | 2,6 A | 3,4 W | 4,0 A |
