Skypool 500 filtration pack + Aquasphere SSP 75M
The filtration pack includes the following:
- Filter Astralpool Skypool
diameter: Ø500 mm - Lateral selector valve Astralpool 6-way 1" 1/2 with links
- Pump Aquasphere SSP 75M
power: 3/4 hp single phase
Tarifas de envío
Cada producto tiene asignada una de dos tarifas según su tamaño: tarifa plana o tarifa eco. La ficha del producto y el carrito indican cuál se aplica. Los importes llevan IVA y no tienen límite de peso ni de bultos.
| Destino | Tarifa plana | Tarifa eco | Envío gratis desde |
|---|---|---|---|
| España peninsular | 9,90€ | 6,90€ | 150€ |
| Baleares | 19,90€ | 9,90€ | 150€ |
| Portugal continental | 12,90€ | 8,90€ | 150€ |
| Alemania, Francia | 24,90€ | 15,90€ | 800€ |
| Austria, Bélgica, Italia, Luxemburgo, Países Bajos | 29,90€ | 21,90€ | 800€ |
| Dinamarca, Polonia, República Checa | 34,90€ | 34,90€ | 2.000€ |
| Eslovaquia, Eslovenia | 34,90€ | 34,90€ | 2.000€ |
| Bulgaria, Croacia, Estonia, Finlandia, Grecia, Hungría, Letonia, Lituania, Noruega, Rumanía, Suecia, Irlanda | 64,90€ | 45,90€ | 2.000€ |
Si su envío va a un país que no figura en esta tabla, contacte con nosotros. El envío gratis no incluye Canarias, Ceuta, Melilla, Azores ni Madeira.
Productos excluidos del envío gratis. Revestimientos y sus complementos, coronación, sal, cargas filtrantes, mangos telescópicos de más de 5 metros y equipos de depuración. Por su volumen y peso, sus gastos de envío se calculan y se muestran automáticamente en el proceso de compra.
Cobertores térmicos y de protección. Tienen una tarifa propia, con entrega en España peninsular, Baleares y Portugal continental:
| Importe del cobertor (IVA incluido) | Gastos de envío |
|---|---|
| Hasta 300 € | 24,90 € |
| Más de 300 € | Gratis |
El importe que cuenta es el del cobertor (o la suma de los cobertores del pedido), no el total del pedido. Si en el mismo pedido compra otros productos, sus gastos de envío se calculan según la tabla general.
Noruega. No pertenece a la Unión Europea: el pedido puede estar sujeto a impuestos de importación y trámites de aduana.
Questions about this product?
Questions about this product?
what is leakage?

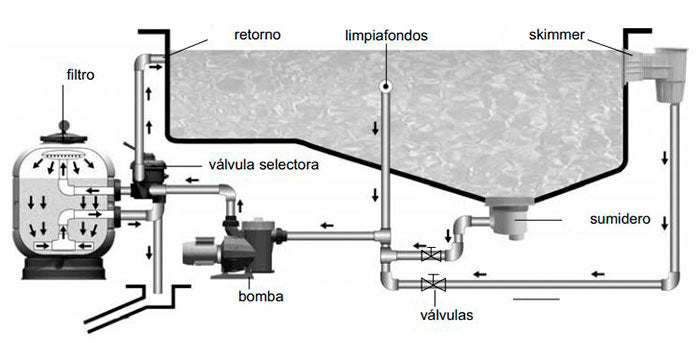

Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming
Filter Coral Alaska 500
- Recommended for pools up to 50 m3.
- Equipped with pressure gauge
- Screw-on ABS cover
- Includes 6-way selector valve 1" 1/2.
- Equipped with 8 nozzles
- Filter made of projected polyester and fibreglass.
- Filtration capacity: 10.000 l/h.
- Filtration speed: 50 m3/h.
- Maximum working pressure: 2,5 kg/cm2.
- Sand load: 85 kg.
- Glass load: 77 kg.
Comparison of the range Coral Alaska
ESPA Jardino Pool Nox 50 12M pump characteristics
- Power: 0.5 hp.
- Type of current: single-phase.
- Manufactured by ESPA.
- Completely silent.
- Self-priming (4 metres)
- Recirculation and filtration of water in small and medium sized swimming pools.
- Compatible with chlorinated water.
- Compatible with salt water (up to 7 grams/litre).
CHECKS PRIOR TO START-UP
- Once the connections defined in the previous section have been made, unscrew the relevant filter cover and fill the pump pre-filter with water up to the lower level of the suction pipe.
- Check that the pump shaft rotates freely.
- Check that the mains voltage and frequency correspond to those stated on the nameplate of the pump.
- Replace the pre-filter cover and screw it back in place as required.
- Check that the direction of rotation of the motor corresponds to that indicated on the fan cover. On three-phase motors, if the direction of rotation is incorrect, reverse two power supply phases on the protection panel.
- If the motor does not start, try to find the fault by referring to the list of the most common faults and their possible remedies given on the following pages.
nEVER RUN THE PUMP DRY!
STARTING THE PUMP
- Open all gate valves and energise the motor.
- Wait a reasonable time for the pipe to self-prime.
- Check the current draw and adjust the thermal relay accordingly.
PUMP MAINTENANCE
- Pool pumps do not require any specific maintenance. It is however recommended to clean the pump filter periodically, empty the pump body during periods of low temperatures through the drain plug.
- If inactivity persists, it is advisable to empty the pump of water, clean it and replace the filter cover with vaseline on the rubber gasket, making sure that the room where it will be stored remains dry and ventilated.
- In the event of a fault, the user must not tamper with the pump. Contact an authorised technical service.
- When it is time to dispose of the pump, it does not contain any toxic or polluting material.
