Cantabric 500 pool filter

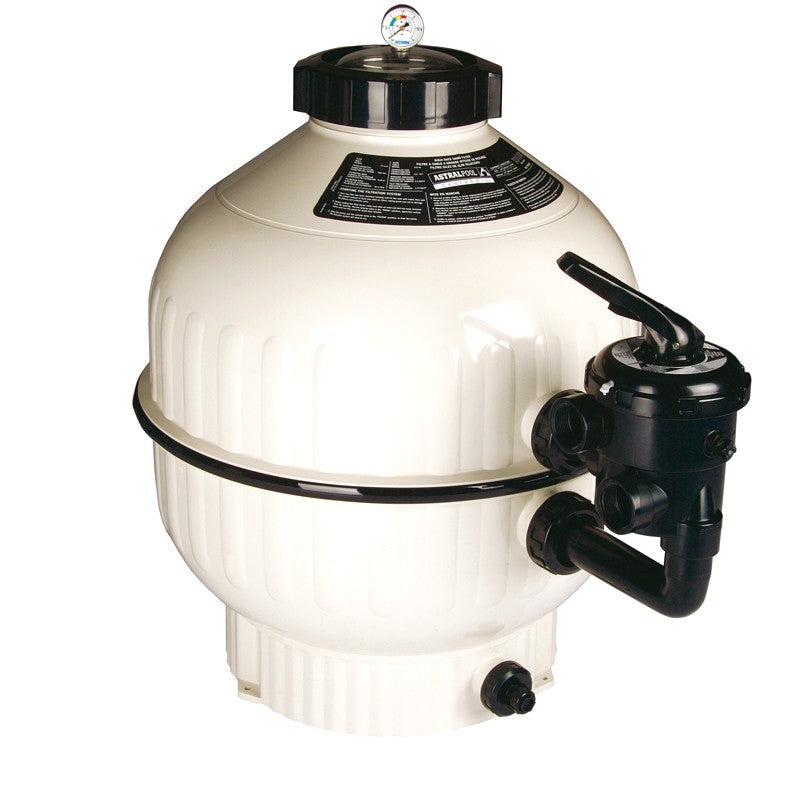

Filter Astralpool Cantabric 500

Filter injected in technical plastics. Ivory colour. The upper and lower parts of the filter are thermally welded together. Equipped with pressure gauge, manual air and water purges. Selector valve included. Max. filtration velocity 50 m3/h/m2. Maximum working pressure: 2.5 kg/cm2.

General characteristics of the filters Astralpool Cantabric:

• filter body made of unalterable plastic, resistant to chemical and atmospheric agents.
• Made to work outdoors.
• fitted as standard with AstralPool's 6+1 way selector valve, 1 1/2" for 400 mm, 500 mm and 600 mm diameters, 2" for 750 mm diameter and 2 1/2" for 900 mm diameter, with bayonet fitting, for filtering, washing, rinsing, recirculation, emptying, closing and wintering operations (all inlets and outlets are connected).
• transparent cover to facilitate visual inspection and access to the inside of the filter in the case of a side valve
• Manifold and diffuser for continuous performance
• Manual air bleed to remove air from inside the filter if necessary
• Incorporates a 3/4" manual water drain on the filter sand drain plug for easy drainage without loss of sand
• Sand drain of 1 1/2" for diameters of 400 mm, 500 mm and 600 mm and 2'' for diameters of 750 mm and 900 mm
• In its lower part, it incorporates a collector by means of arms to ensure a balanced flow and filter washing
• Pressure gauge to control filter backwashing.base integrated in the lower half of the filter, with holes for correct attachment to the floor.larger mouth of 225 mm to facilitate handling and loading of sand in diameters of 900 mm. For the rest of the range the upper mouth is 177 mm

Outstanding advantages of the Astralpool Cantabric filters:

• Easy drainage. No sand loss by means of a manual water drain incorporated in the sand drain plug.
• functionality. The advanced technology developed for the Cantabric filters provides extraordinary operational reliability with minimum maintenance, reflected in a safety that allows optimising the filtration of the pool for many years.
• In addition to its functionality, AstralPool has taken care to create a new image for its Cantabric filters, resulting in a product with an attractive and innovative design both in terms of its ivory colour and its shape, not to mention its adaptability to the needs of the location.
• wide range. Cantabric filters provide the ideal solution for a wide range of pool sizes, as they adapt to filtration needs for capacities ranging from 30 to 240 m3 with flow rates from 6,000 l/h to 30,000 l/h, with a filtration speed of 50 m3/h/m2.

Dimensions of the swimming pool filter Astralpool Cantabric
