Controlador automático Cloro Redox con salida a EV

Automatic controller Dosim Poolux Chlorine Redox with EV output

Regular price 509,00 €
Sale price Regular price €

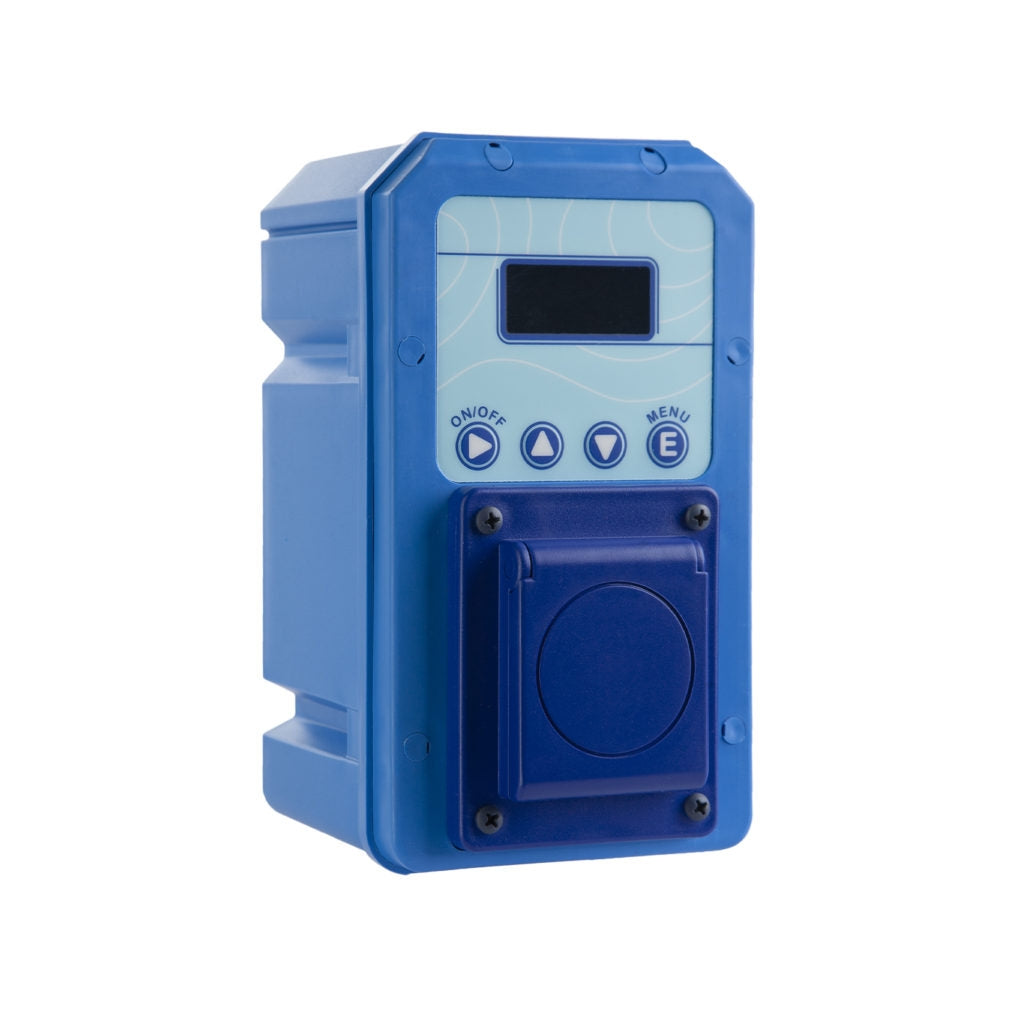

Automatic Chlorine Redox control with EV output

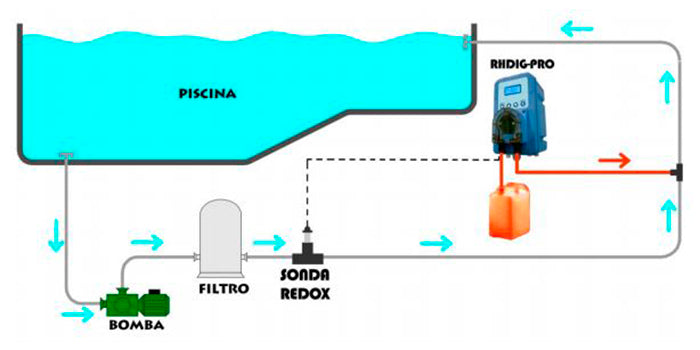

Metering pumps are a type of pump whose purpose is to inject a liquid (in swimming pools it is normal to inject a liquid depressant, ph increaser or liquid chlorine) into a fluid conduit.

The equipment comes with a schuko connector output for external connection

Includes redox potential regulator: from 0 to 1000 mV

Features Automatic redox control Dosim:

  • Power supply: 220 Vac.
  • Polypropylene (PP) IP 65 enclosure 92x180x160 mm
  • Consumption: 12 W.
  • Output to EV
  • With LCD display for reading from 0 to 999 mV
  • Asymmetry potential correction: ± 100 mV
  • Resolution: ± 1 mV
  • Two working values are pre-set on the keyboard by opening and closing the water flow through the tablet tank for proportional regulation.
  • Buffer solution 650 mV (50 ml.)
  • ORP sensor with gold tip.
  • RH combined electrode (V/T)
    - Max. pressure: 7 bar
    - Max. temperature: 90ºC at 3,5 bar
    - 5 mts. cable.
  • Electrode holder model PEA
