92 Series D.400 swimming pool filter
- Pool Filter Series 92
- Manufacturer: Coral
- Code: 01092001
- Diameter: 400 mm
- Material: high resistance laminated polyester in metallic colour
- Includes 6-way selector valve of 1" 1/2
- Includes pressure gauge, drain plug and ABS cap
- Stabilising base
Tarifas de envío
Cada producto tiene asignada una de dos tarifas según su tamaño: tarifa plana o tarifa eco. La ficha del producto y el carrito indican cuál se aplica. Los importes llevan IVA y no tienen límite de peso ni de bultos.
| Destino | Tarifa plana | Tarifa eco | Envío gratis desde |
|---|---|---|---|
| España peninsular | 9,90€ | 6,90€ | 150€ |
| Baleares | 19,90€ | 9,90€ | 150€ |
| Portugal continental | 12,90€ | 8,90€ | 150€ |
| Alemania, Francia | 24,90€ | 15,90€ | 800€ |
| Austria, Bélgica, Italia, Luxemburgo, Países Bajos | 29,90€ | 21,90€ | 800€ |
| Dinamarca, Polonia, República Checa | 34,90€ | 34,90€ | 2.000€ |
| Eslovaquia, Eslovenia | 34,90€ | 34,90€ | 2.000€ |
| Bulgaria, Croacia, Estonia, Finlandia, Grecia, Hungría, Letonia, Lituania, Noruega, Rumanía, Suecia, Irlanda | 64,90€ | 45,90€ | 2.000€ |
Si su envío va a un país que no figura en esta tabla, contacte con nosotros. El envío gratis no incluye Canarias, Ceuta, Melilla, Azores ni Madeira.
Productos excluidos del envío gratis. Revestimientos y sus complementos, coronación, sal, cargas filtrantes, mangos telescópicos de más de 5 metros y equipos de depuración. Por su volumen y peso, sus gastos de envío se calculan y se muestran automáticamente en el proceso de compra.
Cobertores térmicos y de protección. Tienen una tarifa propia, con entrega en España peninsular, Baleares y Portugal continental:
| Importe del cobertor (IVA incluido) | Gastos de envío |
|---|---|
| Hasta 300 € | 24,90 € |
| Más de 300 € | Gratis |
El importe que cuenta es el del cobertor (o la suma de los cobertores del pedido), no el total del pedido. Si en el mismo pedido compra otros productos, sus gastos de envío se calculan según la tabla general.
Noruega. No pertenece a la Unión Europea: el pedido puede estar sujeto a impuestos de importación y trámites de aduana.
Questions about this product?
Questions about this product?

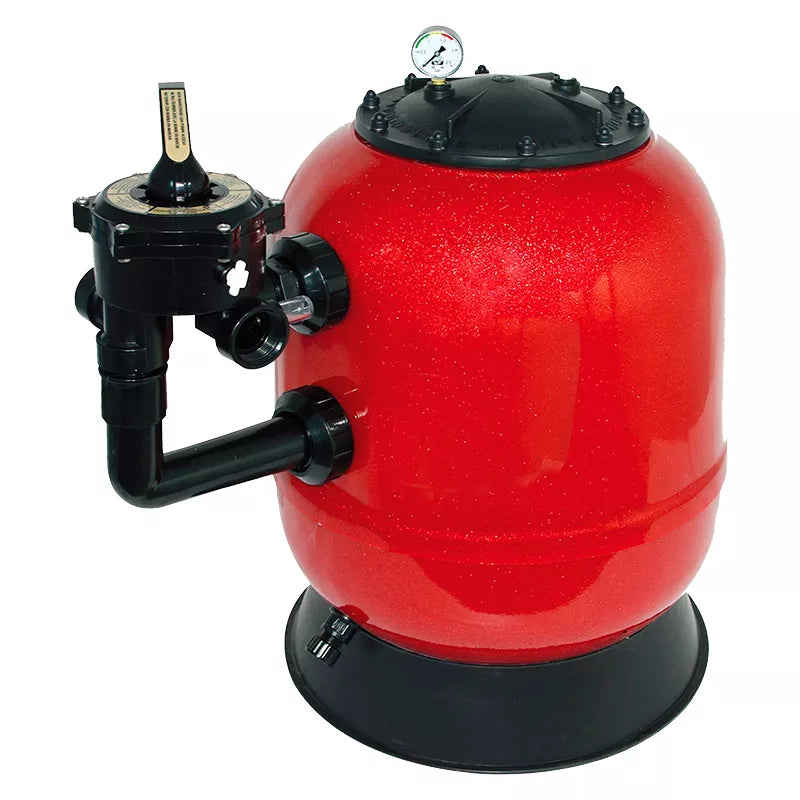

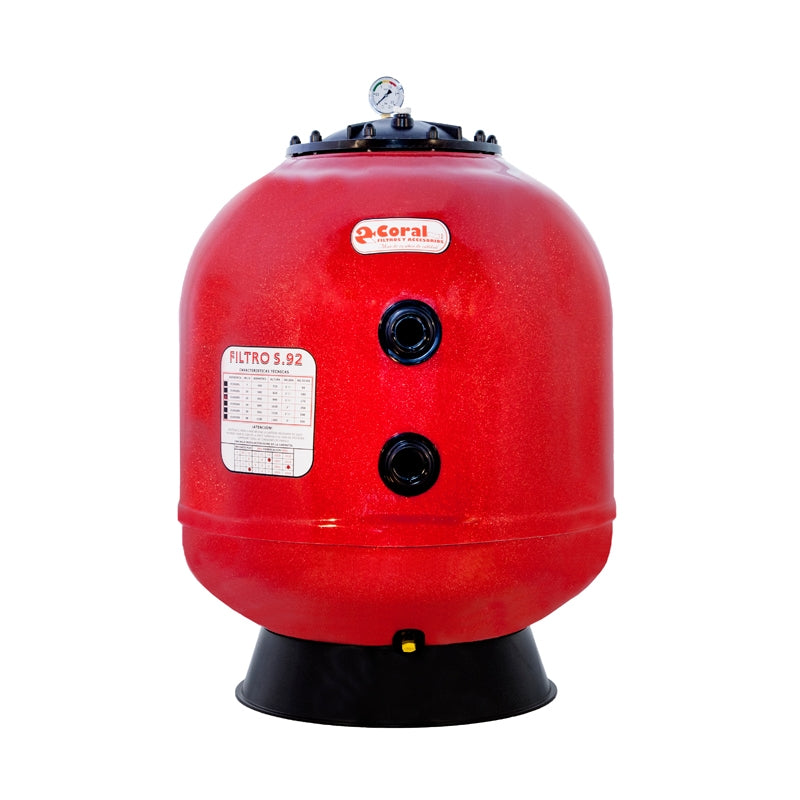

Swimming pool filter Coral Series 92 diameter 400 mm
The filter Coral Series 92 is a high resistance polyester laminated filter in metallic colour.
It includes all the elements for a correct functioning of the filtration system. It incorporates in the upper part a pressure gauge and a matt black ABS cover with screws. In the lower part it has a drain plug, as well as a stabilisation base.
It is supplied with a 6-way selector valve of 1" 1/2.
MAIN CHARACTERISTICS
- Diameter: 400 mm
- Filtration capacity: 7.000 l/h
- Filtration speed: 50 m3/h
- Maximum working pressure: 2,5 kg/cm2
- Sand load: 65 kg
- Glass load: 43 kg
- Crepinas: 8 units of 140 mm
Top cover with screws

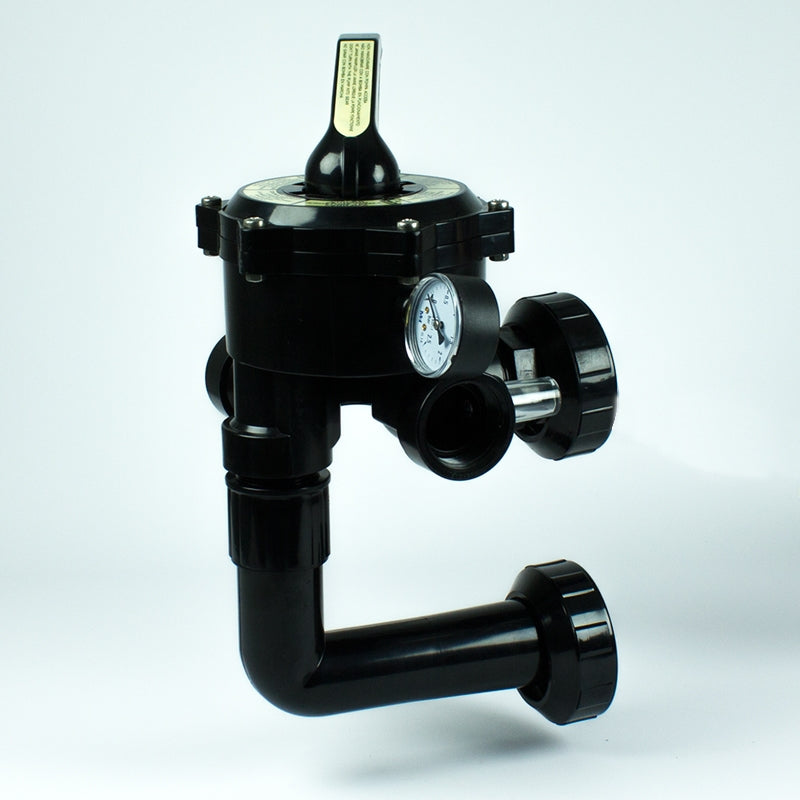

6-way selector valve 1" 1/2
Pressure gauge
Product manufactured at España
what is leakage?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming.
Commissioning
Once the sand filter has been filled (see manual), proceed as follows:
1. Open the valves on the suction pipes leading to the pool (skimmer and drain).
2. Turn the selector valve to the RINSE position.
3. Switch on the pump for 5 minutes.
4. Stop the pump and switch the selector valve to the RINSE position.
5. Reconnect the pump for 1 minute.
6. Stop the pump and switch the selector valve to the FILTRATION position.
The filter is now ready for operation.
Functions of the selector valve
Encuentra el producto perfecto para tu piscina | ||||||
|---|---|---|---|---|---|---|
| Diameter (mm) |
400 |
500 |
650 |
800 |
950 |
1100 |

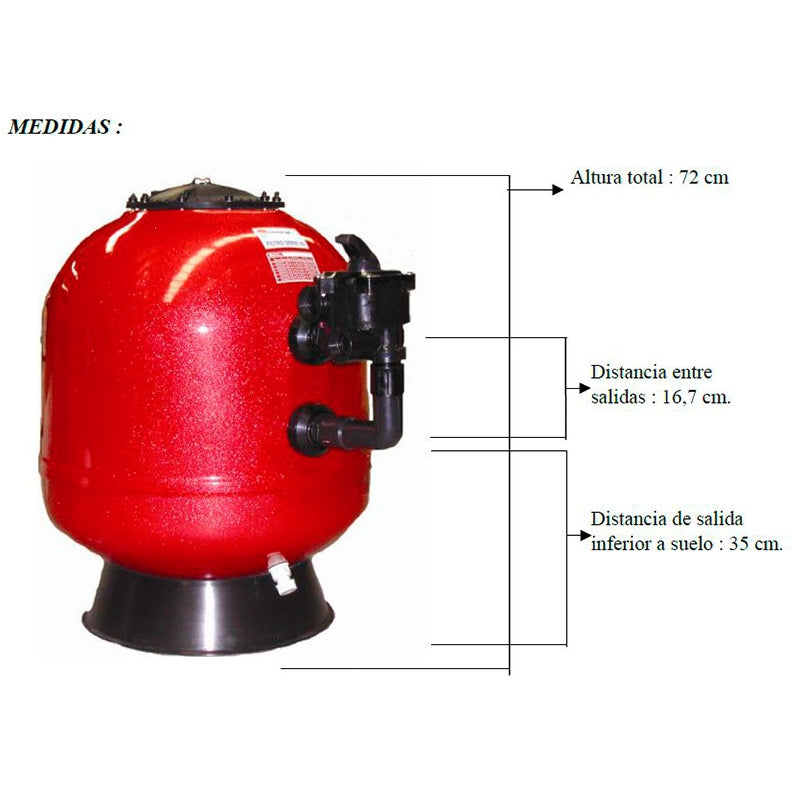

| Height (mm) |
720 |
820 |
940 |
1020 |
1120 |
1260 |
| Connections |
1" 1/2 |
1" 1/2 |
1" 1/2 |
2" |
2" 1/2 |
3" |
| Flow rate (m3/h) |
7 |
10 |
15 |
24 |
35 |
48 |
| Sand load (kg) |
65 |
100 |
175 |
350 |
500 |
850 |
| Filtration surface (m2) |
0,18 |
0,22 |
0,30 |
0,50 |
0,68 |
0,86 |
| WARRANTY |
2 years |
2 years |
2 years |
2 years |
2 years |
2 years 2 years |
