Spare parts Zodiac RV 4400 Tile

Replacement Parts for the Zodiac Vortex RV 4400 Tile Robot: Filters, Brushes, Suction Cup Wheels, and Genuine Parts

The Zodiac Vortex RV 4400 Tile is a corded electric pool cleaner manufactured by Zodiac Pool Care (Fluidra Group) and launched in 2015 as the successor to the Vortex 3. It performs a thorough cleaning of the pool —bottom, walls, and waterline—and features the Lift System for easier removal of the robot from the water at the end of the cycle.

The “Tile” version has a very clear technical distinction from the standard version: it features front wheels with suction cups to improve traction on vitrified mosaic, ceramic, and tile surfaces—surfaces where the standard version tends to slip. This feature also affects replacement parts: if your pool has vitrified mosaic tiles, the front wheels with suction cups are a key replacement part that you can install even if your robot isn’t the Tile version from the factory.

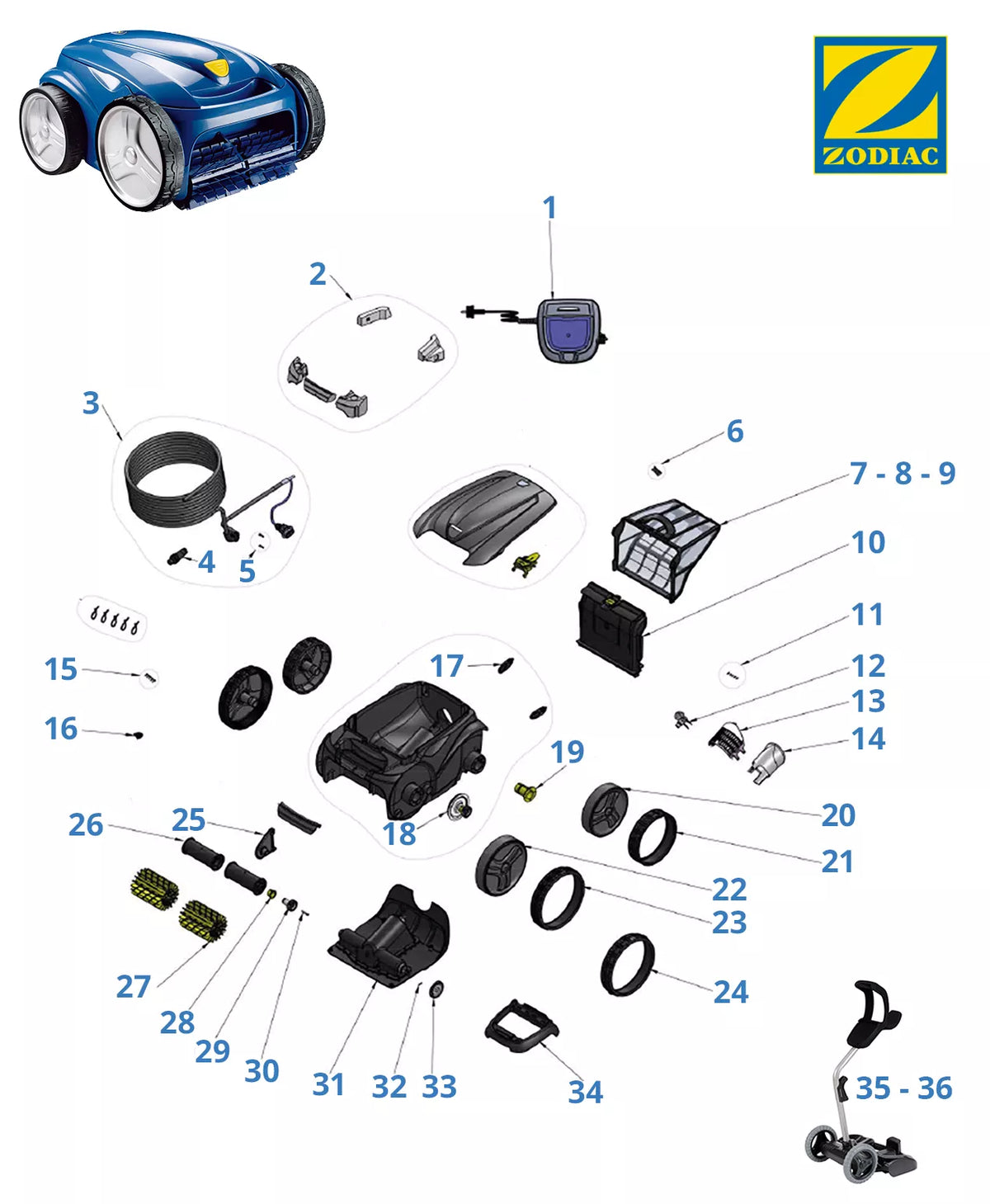

At Quimipool, you’ll find the original Zodiac replacement parts for the RV 4400. Also check out the complete section on pool cleaner replacement parts at Zodiac —the hub for electric pool cleaners across the entire corded range in the catalog—or contact our technical support if you need to identify a part using the exploded view diagram.

Related Categories: Pool Cleaner Replacement Parts Zodiac · Pool Cleaners Zodiac · Electric Pool Cleaners · Automatic Pool Cleaners · Robot Pool Cleaner Replacement Parts

Zodiac Vortex RV 4400 Tile: Model Specifications

Zodiac Original Replacement Parts for the RV 4400 Tile

The catalog is organized into five functional sections: filters, brushes and cleaning system, wheels and traction (including Tile-specific parts), structure and suction, and electrical and control.

Filters: three levels of filtration

Practical choice: If you’re not sure which one to use, start with the 100-micron (standard fine) filter and switch to another if specific issues arise (consistently cloudy water → 60 microns; lots of leaves → 200 microns).

Brushes and Cleaning System

Wheels and Traction — Key Component of the RV 4400

Frame and Suction

Electrical and Control

Important note on compatibility: Always verify compatibility in the product specifications. Many RV 4400 replacement parts are compatible with other models— Zodiac r Vortex —from the same generation. If you have any questions about the exact part number, contact our technical support team using the contact form.

Difference Between the Tile Version and the Standard Version of the RV 4400

The main difference between the RV 4400 Tile and the standard RV 4400 lies in the front wheels. The Tile version features covers with suction cups that provide additional grip on very smooth surfaces such as glass mosaic, ceramic, and tiles. The standard version has covers without suction cups, optimized for liners and concrete.

Choose based on your pool’s finish:

• Pool with vitrified mosaic, ceramic, or tile: Make sure the front wheels are the Tile model (with suction cups). If your robot has the standard covers and slips on the walls, you can upgrade just the front covers to the Tile version without replacing the entire robot
• Liner or concrete pool: the standard covers offer better performance. The suction cup can create excessive friction on textured surfaces and unnecessarily slow down the robot’s movement

Spare Parts Guide Based on Pool Finish

Preventive Maintenance for the RV 4400 Zodiac

Six basic rules to extend the robot’s service life:

• Clean the filter after each cycle to maintain optimal suction. The blue top cover provides quick access
• Check the condition of the brushes at the start of each season: if the bristles are worn or stiff, replace them before the first cycle
• Inspect the condition of the wheels: if the robot skids along the walls, check whether the wheel covers are the correct type for your pool surface (Tile for glazed mosaic tiles, Standard for liner/concrete). Also verify that the rubber pads are not worn smooth or hardened
• Do not leave the robot in the water between cycles: prolonged contact with chlorine causes rubber and plastic parts to degrade prematurely
• Store the cable without sharp kinks: internal cable breaks are the leading cause of the robot stopping working for no apparent reason
• Clean the suction impeller monthly: hair, fibers, and fine debris accumulate on the motor shaft and gradually reduce suction

Current Alternatives to the RV 4400 Tile

If your RV 4400 Tile has multiple simultaneous malfunctions and you’d prefer to consider a complete replacement, here are some options from the catalog:

• Current Zodiac Vortex Line: Check out the complete catalog at Zodiac, featuring current models that retain the Lift System and the concept of specific covers for vitrified mosaic tiles
• Dolphin: a strong alternative with the Wonder Brush line, specifically designed for vitrified tile
• Hayward and BWT: additional options for corded electric pool cleaners
• Cordless robots: if the cord has always been a weak point, consider cordless pool cleaners like the high-end Beatbot (pool floor + walls + waterline)

For the complete catalog by brand, check out the automatic pool cleaner hub.

Can’t find the replacement part for your Zodiac RV 4400 Tile? Our technical team can identify the exact part based on the part number from the exploded view diagram at Zodiac or the issue you describe. Call us at 91 128 55 90 or reach out via the contact form: remember that Tile covers with suction cups can also be installed on a standard RV 4400, so if your pool has vitrified mosaic tiles and the robot is slipping, this is the most cost-effective upgrade you can make without replacing the entire unit. See also pool cleaner replacement parts Zodiac, pool cleaners Zodiac, electric pool cleaners, and automatic pool cleaners.
