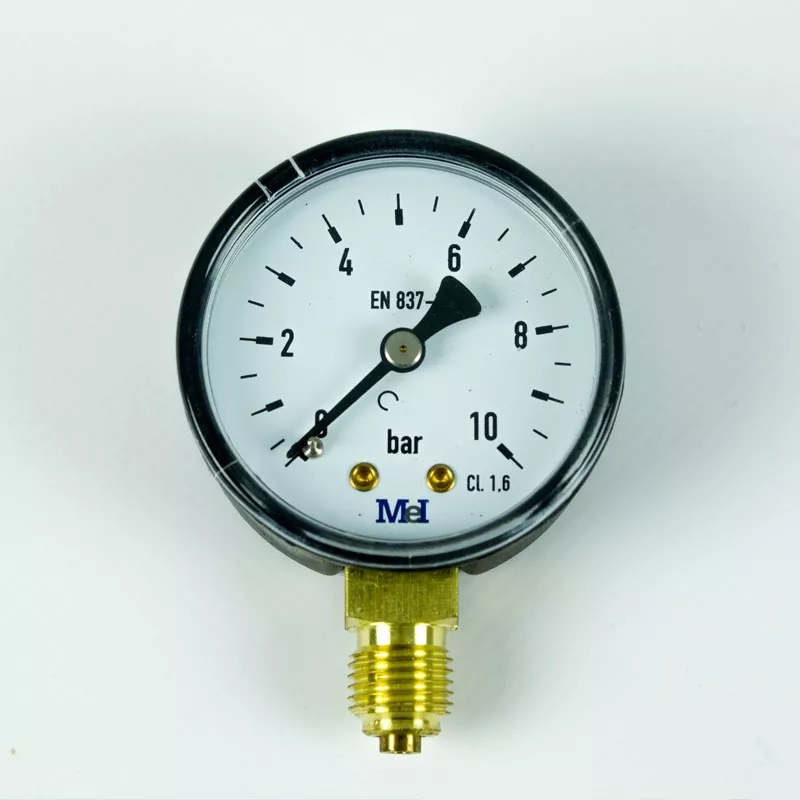

MeI pressure gauge range 0 to 10 bar
ref: 05GPAC1004033
sku: 1004033
- Pressure gauge from 0 to 10 kg/cm2.

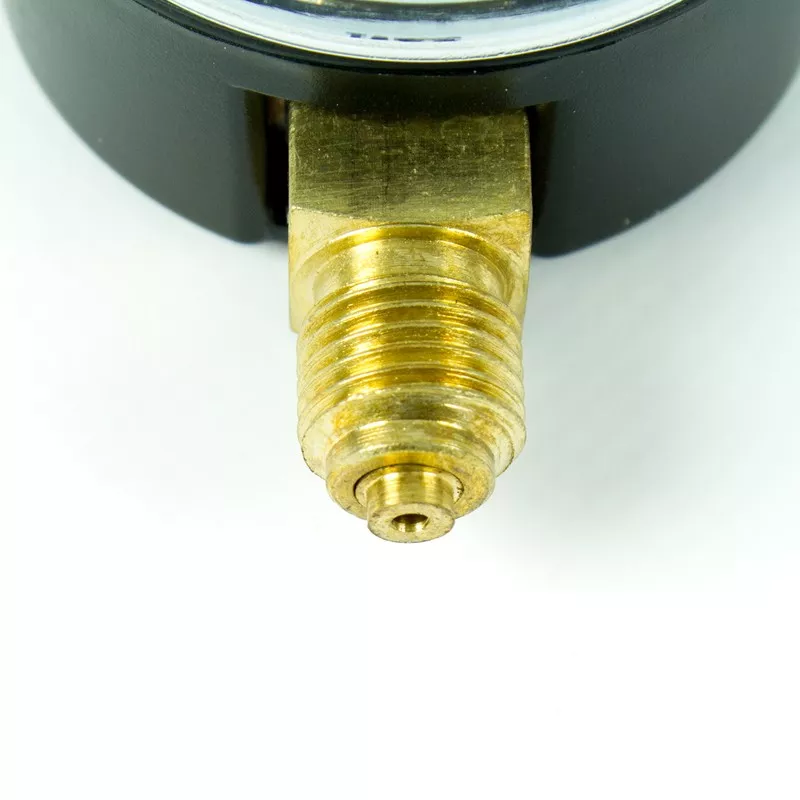

- 1/4" thread connection. Gas.
- Transparent plastic sight glass Ø 50 mm.
- Suitable for use with liquid or gaseous fluids that do not chemically attack copper alloys, are not highly viscous and do not crystallise.
- Their preferred application is in pneumatic and hydraulic circuits, compressors, filters and pressure regulators. They comply with CE standards.
€4.76
IVA included
Technical characteristics
Pressure gauge from 0 to 10
- Pressure gauge from 0 to 10 Kg./cm2. Thread 1/4" Gas Ø 63 mm.
- Suitable for use with liquid or gaseous fluids that do not chemically attack copper alloys, do not present a high viscosity and do not crystallise.
- Their preferred application is in pneumatic and hydraulic circuits, compressors, filters and pressure regulators. They comply with CE standards.
- Ambient temperature: -20...+60oC. Process fluid temperature: max. +60oC.
- Temperature error: Additional error when the temperature of the sensitive element deviates from 20oC. +/- 0,3 % every 10 oC variation.
- Working pressure: Max. 75% of V.F.E.
- Temporary overpressure: Not applicable.
- Process connection fitting: Brass.
- Tubular spring: In phosphor bronze "C" for scales ≥ 40 bar in spiral for scales > 40 bar.
- Housing: ABS plastic
- Sight glass: Transparent plastic. Mechanism: Brass.
- Indicator needle: Black lacquered aluminium.
