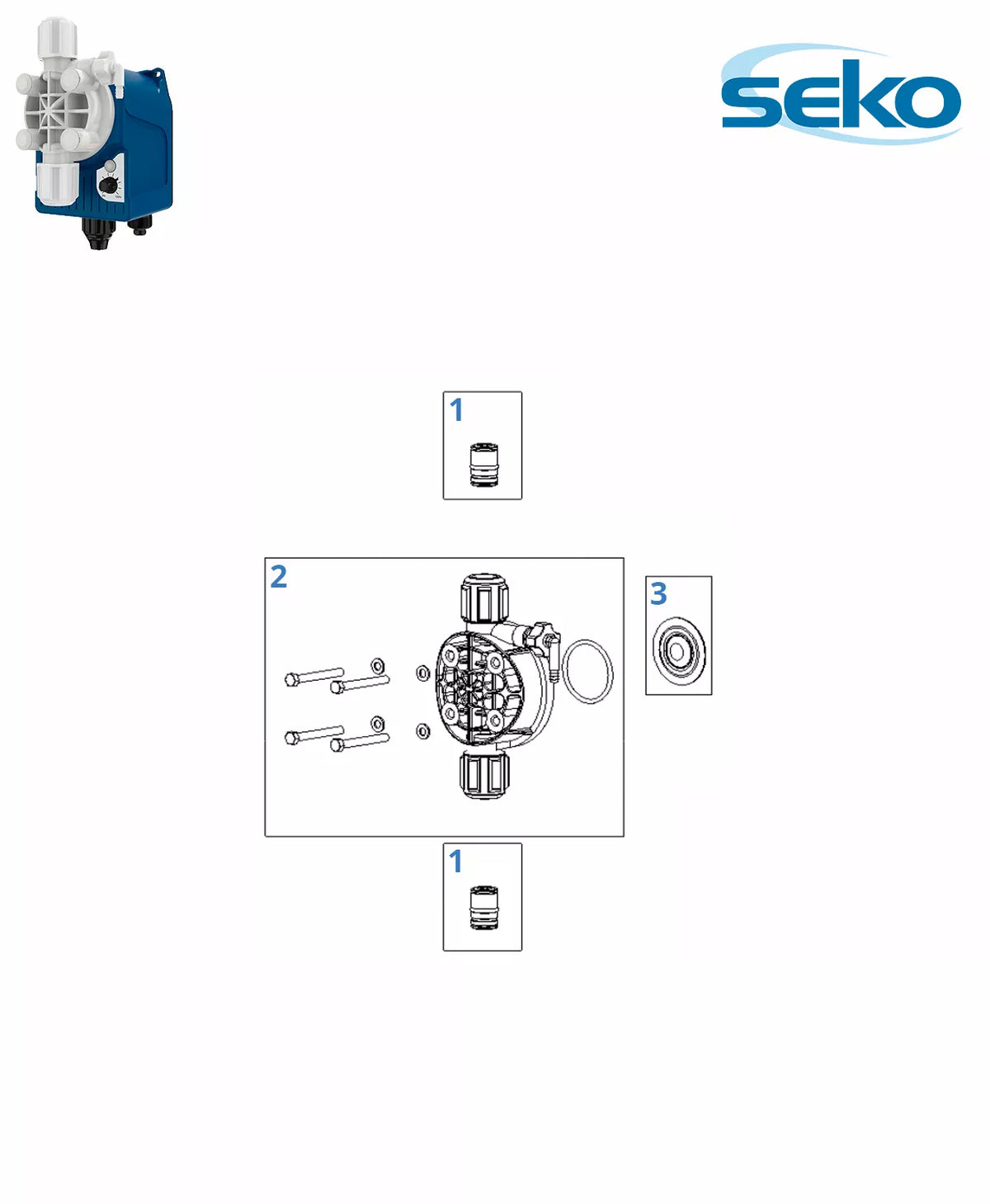

Seko, and Invikta Replacement Parts
| Position | Product | Quantity | Unit price |
|---|---|---|---|
| 1 |
Regular price
29,90 €
Sale price
Regular price
|
||
| 2 |
Regular price
59,90 €
Sale price
Regular price
|
||
| 3 |
Regular price
25,89 €
Sale price
Regular price
|
||
| 4 |
Regular price
78,90 €
Sale price
Regular price
|
Seko Invikta Metering Pump Replacement Parts: Complete Parts List with Prices
The Invikta is Seko ’s entry-level electromagnetic dosing pump: constant dosing adjustable from 0 to 100% via an analog potentiometer, with a PVDF-T pump head and PTFE (Teflon) diaphragm, designed for liquid chlorine or pH reducers. Since it is electromagnetic—with no mechanical motor or gears—wear and tear is concentrated in three very specific areas: the pump head, the diaphragm, and the ball valves. If your pump also has a pH controller, the electrode is the fourth part to monitor. Here is the complete parts list with prices and links to each part.
Related Categories: Dosage Pump Parts · Seko Dosage Pumps · Dosage Pumps · Technical Support
Head, Diaphragm, and Valves: The Heart of Dosing
The head, diaphragm, and valves work together with every dosing cycle: if the pump dispenses less than expected or fails to prime, the problem almost always lies in one of these three components.
| Replacement Parts | Estimated price | When to Use It |
|---|---|---|
| Invikta EM99106299 Pump Head | €59.90 | Cracked head, fluid leak, or loss of seal |
| Invikta EM99070063 Valves | €29.90 | The pump fails to prime or dispenses irregularly |
| Invikta/Kompact Diaphragm EM99106341 | €25.89 | End of service life for the PTFE diaphragm; internal leak or pressure loss |
pH control: electrode
| Replacement | Estimated price | What it does and when to replace it |
|---|---|---|
| Seko, 5-meter pH electrode | €78.90 | Erratic pH readings or a worn-out electrode; this is the most expensive part in the replacement kit |
Quick Diagnosis: From Symptom to Part
| Symptom | Probable cause | What to Check First |
|---|---|---|
| Does not prime or dispenses irregularly | Dirty or worn ball valves | Valves (€29.90) |
| Fluid leak in the pump body | Cracked head or broken diaphragm | Diaphragm (€25.89) instead of the entire head (€59.90) |
| Dosing becoming increasingly weak | PTFE diaphragm at the end of its service life | Diaphragm (€25.89) |
| Unstable or erroneous pH readings | Worn-out or poorly calibrated electrode | pH electrode (€78.90) |
| The pump won't start | Check the 230V power supply before inspecting hydraulic components | This part is not included in this parts list; check the plug and the potentiometer |
Before purchasing the pH electrode (€78.90)
It’s the most expensive part in the parts list. Before you decide:
- Calibrate the electrode with calibration solutions before assuming it’s faulty: many erratic readings are due to improper calibration, not a worn-out electrode.
- Check that the electrode doesn’t have limescale or dirt buildup on the sensing tip; gently cleaning it with water may solve the problem without having to buy anything.
- Check the installation date: pH electrodes have a limited service life, typically between 12 and 18 months of continuous use, so if it has already exceeded that period, it’s more likely that it needs to be replaced.
Is it worth repairing or buying a new one?
For a pump in this price range, replacing the head, diaphragm, and valves together costs around €115—a figure you should compare to the price of a new Invikta before making a decision. For isolated malfunctions—such as a faulty membrane or valves alone—repairing is always worth it: these are low-cost parts that have a significant impact on the pump’s performance.
Maintenance that prevents almost all breakdowns
- Clean the ball valves periodically, especially if you’re dosing products that can crystallize or leave residue.
- Visually inspect the diaphragm at least once per season; a diaphragm showing signs of stiffness or cracks should be replaced before it fails completely.
- If you use a pH electrode, calibrate it regularly with calibration solutions to prevent incorrect dosing of pH adjusters.
- Purge the suction line if you notice that the pump frequently loses its prime; trapped air is a common cause of irregular dosing.
Need help with your Invikta Seko r pump?
Proper maintenance ensures optimal performance. Replace any worn-out parts to extend the service life of your Invikta Seko dosing pump: the pump head, diaphragm, and valves work together in every cycle, so it’s best to inspect them as a set during seasonal maintenance. If you’re unsure which part you need, call us at 91 128 55 90, contact us via the contact form, or reach out to our technical support team. Shipping to mainland Spain within 24–48 hours; free shipping on orders over €150.
