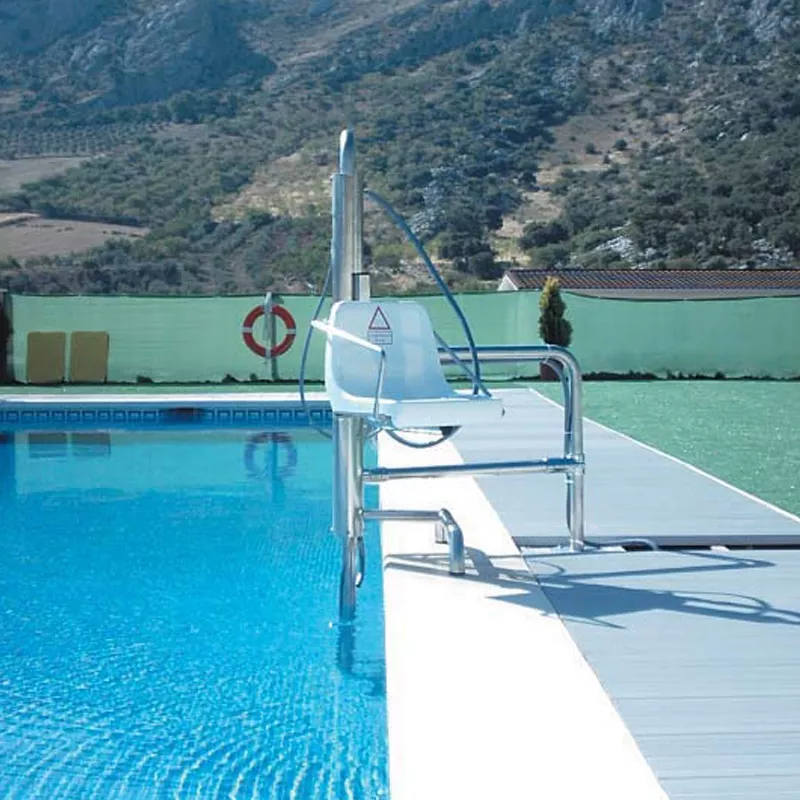

Hydraulic pool lifter Metalu B-2 150 kg

General characteristics of the hydraulic elevator for swimming pools B-2:

• Approved to lift 150 kg.
• For its operation it is necessary to have a water supply with pressure at 3.5 bar. To lift 150 kg, 5.5 bar is required.
• Rotation angle: 180º, clockwise (downhill).
• Turning radius 700 m/m.
• The control knob is located to the right of the user.
• The seat has a travel of 1.06 meters and is adjustable in height, normally placed at +0.53 meters and -0.53 meters above the water level.
• It adapts to any pool because all the grips are adjustable.

Operational Data of the fixed hydraulic lift B-2:

• Net weight: 50 Kg
• Packed weight: 62 kg
• Climbing time empty: 20"
• Climbing time with 85 kg load: 25"
• Lowering time empty: 42
• Lowering time with 85 kg of load: 20"
• Water capacity in piston: 8 liters

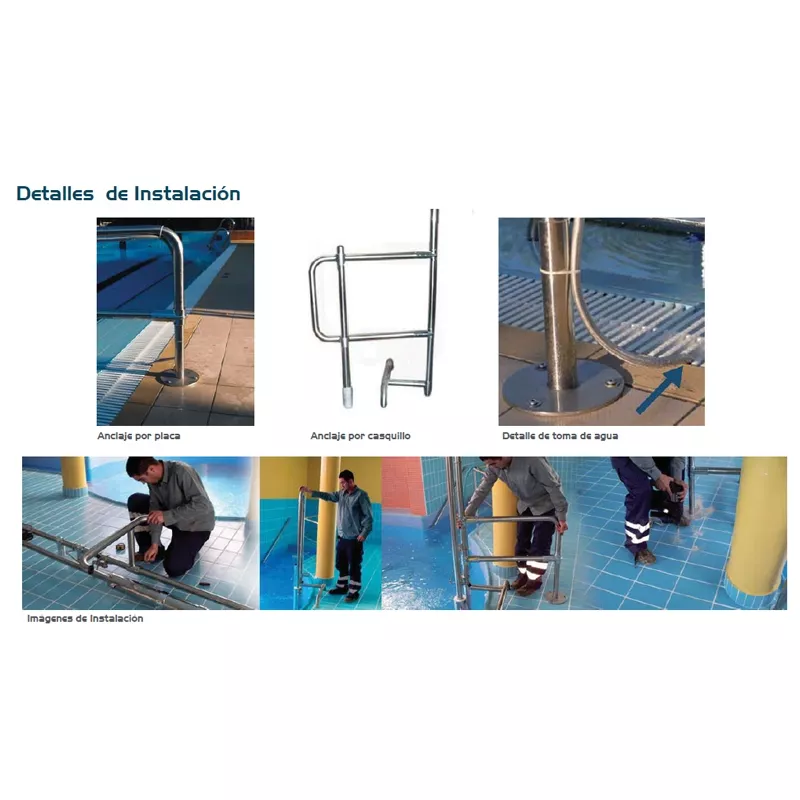

Pre-installation and Installation:

The following points should be considered when choosing the location site:

• That it is easy to access by the user.
• That it is not in a place of transit or parking by other bathers.
• That the water intake is as close as possible.
• We recommend placing the lift where the water has a depth of approximately 1.20/1.30 meters, so that if the user of the lift needs help, the person accompanying him/her can stand up safely.
• In the place where it has been decided to place the elevator, it is necessary to leave a water inlet of ½ inch and 3.5 bar. If the network does not have this pressure, a pressure group should be installed.

If the pool is already built, it is advisable to install the water intake after the lift has been installed.

• Installation is very simple.
• It only has anchorages on the outside of the pool.

Adjust the height of the seat and connect the hose to the water intake.
