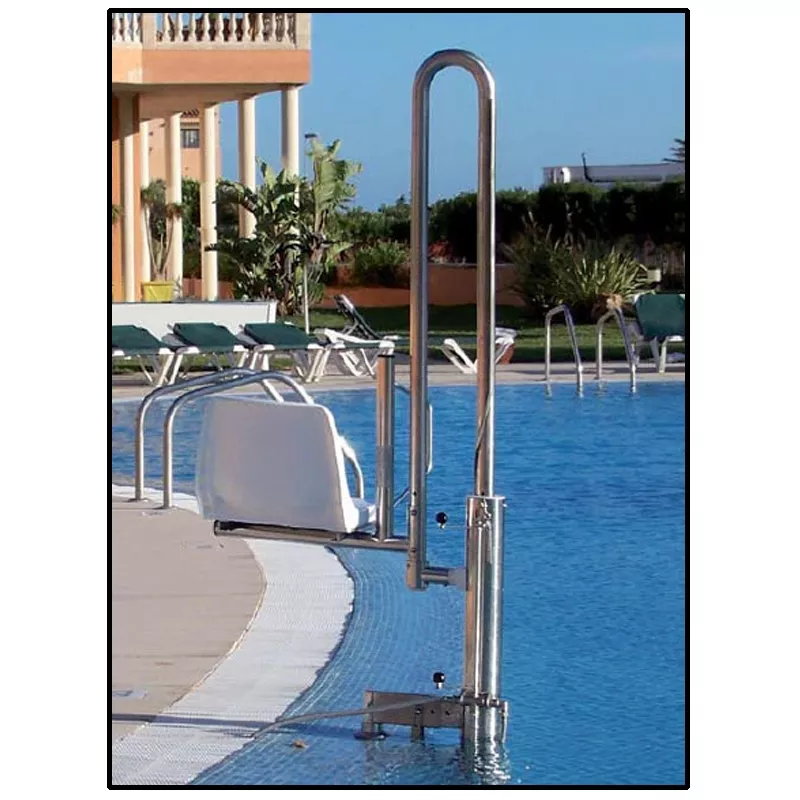

Hydraulic pool lifter Metalu PK 150 kg

General characteristics of the PK portable hydraulic lift for swimming pools

• Approved to lift 150 kg
• For its operation it is necessary to have a water supply with a pressure of 3.5 bar. To lift 150 kg, 5.5 bar is required.
• Rotation angle: 180º, clockwise (downhill).
• Turning radius 700 m/m.
• The control knob is located to the right of the user (if the opposite rotation is required, please specify it in the order)
• The seat has a travel of 1.06 meters. Removable seat.

Operational Data of the PK portable hydraulic lift for swimming pools

• Net weight: 37 Kg
• Packed weight: 45 kg
• Climbing time empty: 24
• Rise time with 85 kg load: 27" (27")
• Lowering time empty: 50"
• Lowering time with 85 kg load: 22"
• Water capacity in piston: 9 liters

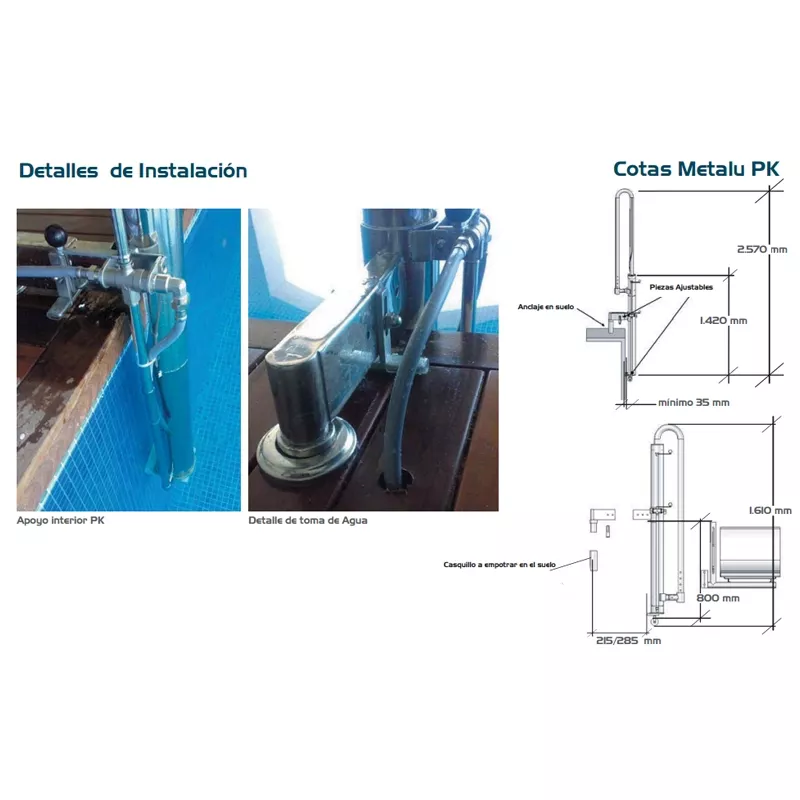

Pre-installation and Installation:

The following points should be considered when choosing the location site:

• That it is easy to access by the user.
• That it is not in a place of transit or parking by other bathers.
• That the water intake is as close as possible.
• We recommend placing the lift where the water has a depth of approximately 1.20/1.30 meters, so that if the user of the lift needs help, the person accompanying him/her can stand up safely.
• In the place where it has been decided to place the elevator, it is necessary to leave a water inlet of ½ inch and 3.5 bar. If the network does not have this pressure, a pressure group should be installed.

If the pool is already built, it is advisable to install the water intake after the lift has been installed.

• Installation is very simple.
• It only has anchorages on the outside of the pool.

Adjust the height of the seat and connect the hose to the water intake.
