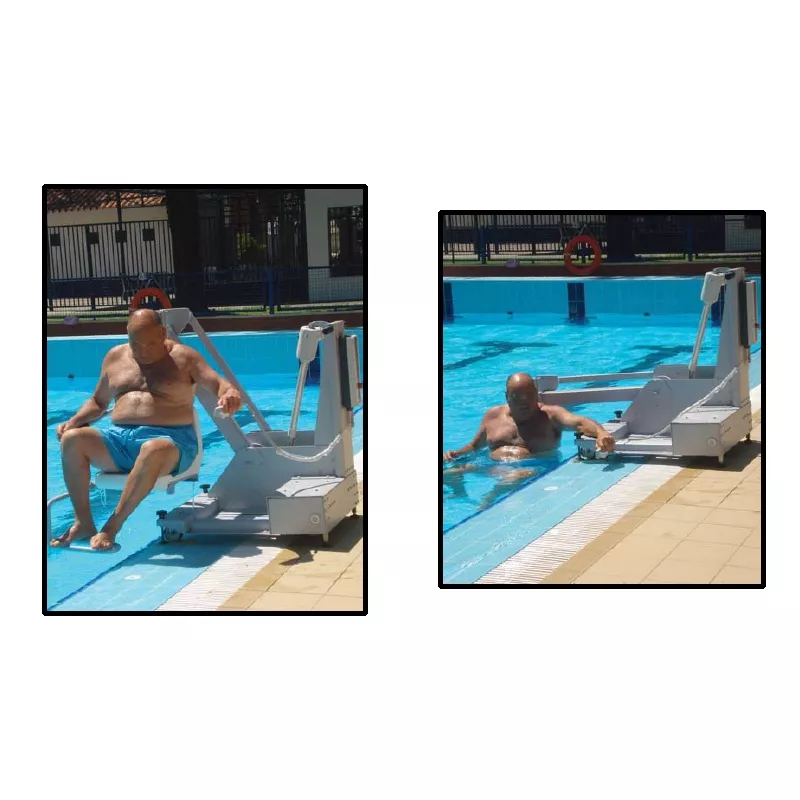

Metalu Model 400 150 kg battery pool lift for swimming pool
ref: 02EH400-150
- Battery operated aquatic lift for swimming pools Model 400
- Approved to lift 150 kg
- Made of lacquered stainless steel
- Electric actuator 24V IP 65 protection
- Removable seat, folding armrest and footrest
- Composed of 2 batteries + charger
- Base platform with counterweights and 4 wheels easy to transport
- Warranty: 3 years against all manufacturing defects, 5 years on spare parts, except for two years on batteries
€8,369.00
Free shipping
Technical characteristics
General characteristics of the 400 Series portable battery hoist:
- Approved to lift 150 kg.
- Transportable, allowing the lift to be used anywhere in the pool or to be stored when not in use.
- Metallic device with electric mechanism (24 V.)
Composed by:
- Base platform with counterweights and 4 wheels, 2 of them swivel.
- Safety mechanisms.
- Vertical prism.
- Pivoting arm.
- Electric mechanism.
- Electric actuator 24 V.
- Control box.
- Hand button panel.
- Battery.
- Battery charger.
- IP65 protection.
- Operated from hand pendant.
- 2 batteries + charger.
- Removable seat.
- Folding armrest.
- Footrest.
- Made of lacquered stainless steel.
Pre-installation and Installation:
When choosing the location site the following points must be taken into account:
- That it is easy to access by the user.
- That it is not in a place of transit or parking by other bathers.
- We advise to place the elevator where the water has a depth of 1,20/1,30 Mts approx. to the object of if the user of the elevator needs help, the person who accompanies him is safe doing foot.
Data Sheet
- Type of anchorage
- Mobile
- Maximum weight
- 150 kg
- Lift type
- Battery 24v
