Complete Hydraulic Lift Astralpool L-1000
- L-1000 Hydraulic Lift.
- Manufacturer: Astralpool.
- Code: 28620.
- Handrail length: 1000 mm.
- Lifting capacity up to 115 kg.
- Manufactured in stainless steel tube Ø 43 mm. AISI-316 bright polished.
- Includes everything necessary for installation: handrail, cylinder and accessories.
- Hydraulic mechanism with minimum water pressure of 3.5 Kg/cm2.
Technical characteristics
Hydraulic Lift Astralpool L-1000 complete

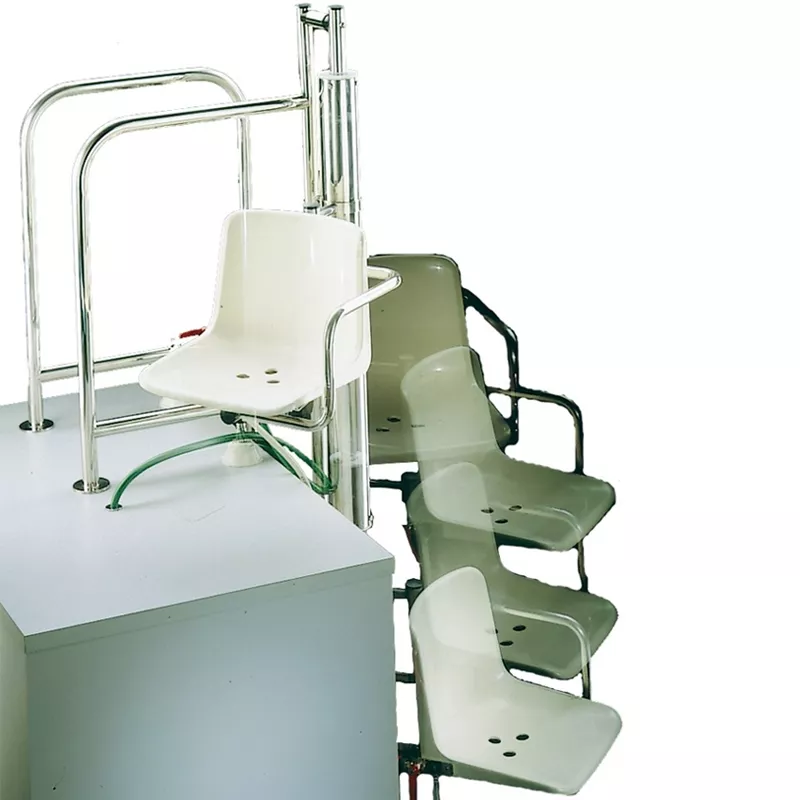

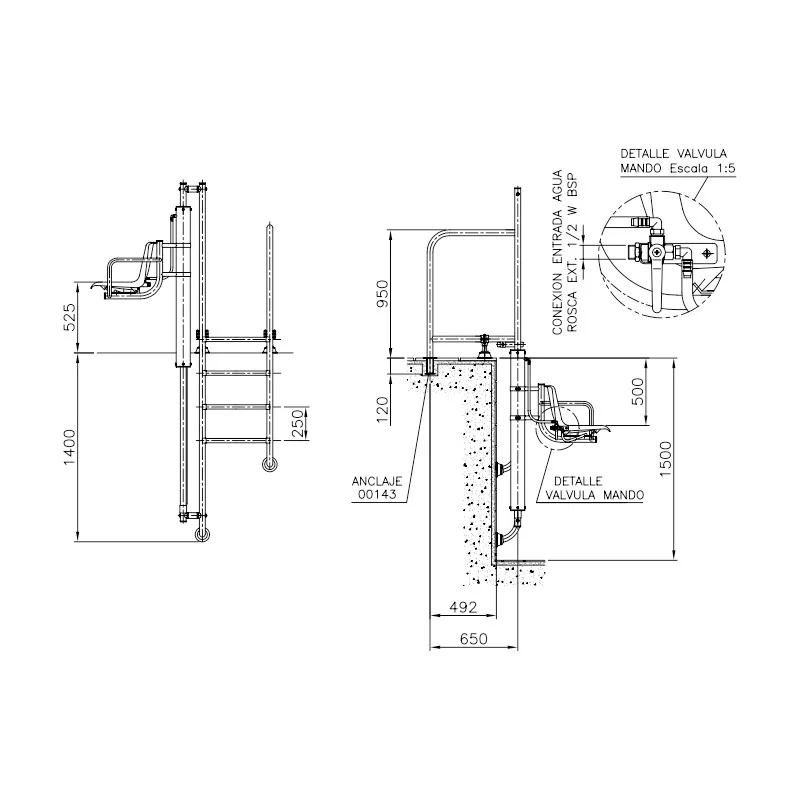

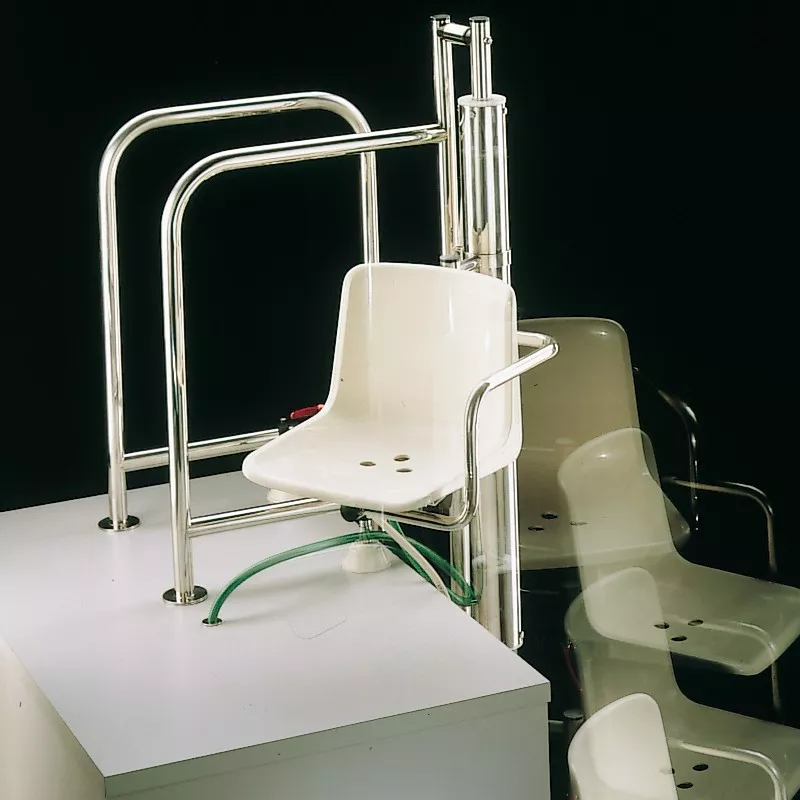

Hydraulic lift for people with physical limitations. It consists of a stainless steel structure in which the hydraulic mechanism is adapted in the central part, where the seat is supported and laterally a ladder valid for the monitor.
For the mechanism to work, it is necessary to have a water supply with a minimum pressure of 3.5 Kg/cm2. To complete the set, the handrail is necessary, together with the hydraulic cylinder and the complements.
In pools with perimeter overflow, the handrail model L-1000 will be used.
NOTE: For pools with a depth of less than 1.4 m., please consult us.
Lowering: When the user activates the side valve, the lowering movement starts automatically, emptying the water from the piston inside the pool.
Raising: When the valve is activated again, the chair returns to its initial position when the piston is filled with water from the mains.
Each cycle consumes an estimated 7 litres of water.
Characteristics:
- External fixing by means of two metal anchors and two adjustable front brackets.
- Connection to water inlet with a pressure between 3 and 5 kg/cm2.
- Lifting capacity up to 115 Kg.
- Rotating movement of 100º.
- Handrail length: 1000 mm.
- Includes everything necessary for installation: handrail, cylinder and accessories.
- All metal parts are made of AISI-316 stainless steel.
