Complete Hydraulic Lift Astralpool L-650
- L-650 Hydraulic Lift.
- Manufacturer: Astralpool.
- Code: 28619.
- Handrail length: 650 mm.
- Lifting capacity up to 115 kg.
- Made of Ø 43 mm stainless steel tube. AISI-316 bright polished.
- Includes everything necessary for installation: handrail, cylinder and accessories.
- Hydraulic mechanism with minimum water pressure of 3.5 Kg/cm2.
Technical characteristics
Hydraulic Lift Astralpool L-650 complete

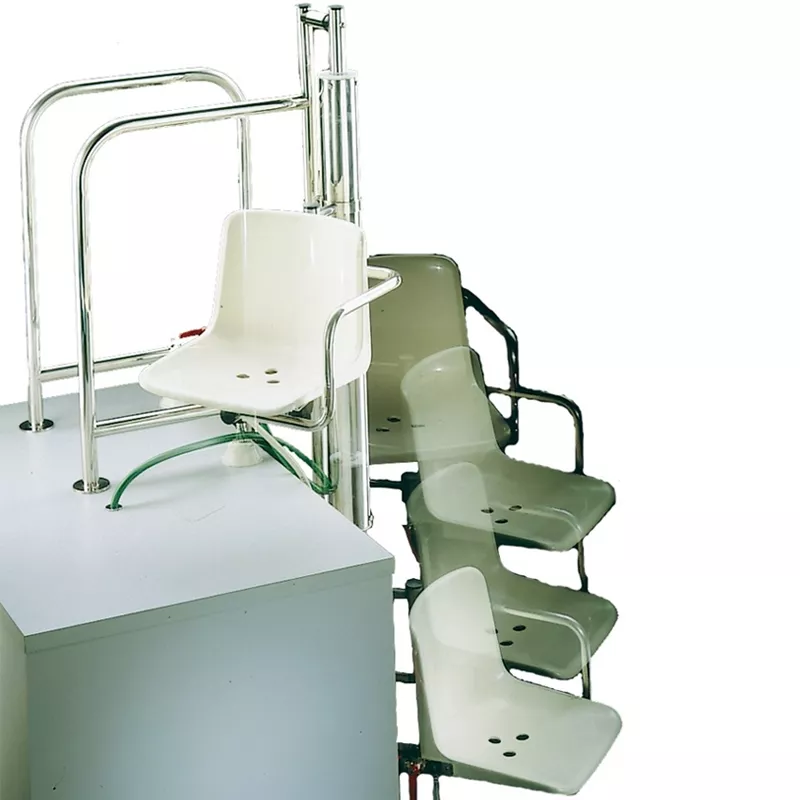

Hydraulic lift for people with physical limitations. It consists of a stainless steel structure in which the hydraulic mechanism is adapted in the central part, where the seat is supported and laterally a ladder valid for the monitor.
For the mechanism to work, it is necessary to have a water supply with a minimum pressure of 3.5 Kg/cm2. To complete the set, the handrail is necessary, together with the hydraulic cylinder and the complements.
In pools with perimeter overflow, the handrail model L-1000 will be used.
NOTE: For pools with a depth of less than 1.4 m., please consult us.
Lowering: When the user activates the lateral key, the lowering movement starts automatically, emptying the water from the piston inside the pool.
Raising: When the key is activated again, the chair recovers its initial position when the piston is filled with water from the mains.
In each cycle, it is estimated that 7 litres of water are consumed.
Characteristics:
- External fixing by means of two metal anchors and two adjustable front brackets.
- Connection to water inlet with a pressure between 3 and 5 kg/cm2.
- Lifting capacity up to 115 Kg.
- 100º swivel movement.
- Handrail length: 650 mm.
- Includes everything necessary for installation: handrail, cylinder and accessories.
- All metal parts are made of AISI-316 stainless steel.
