Neptuno 400 swimming pool filter filter system
ref: 06FI01099002
ean13: 8410189009756
sku: 540061
- Neptune Series Pool Filter
- Manufacturer: Coral
- Code: 01099002
- Diameter: 400 mm
- Material: high density injected polypropylene
- Transparent cover with thread
- INCLUDES 6-WAY SELECTOR VALVE 1" 1/2.
- Easy to view pressure gauge
€209.00
IVA included
Free shipping
Technical characteristics

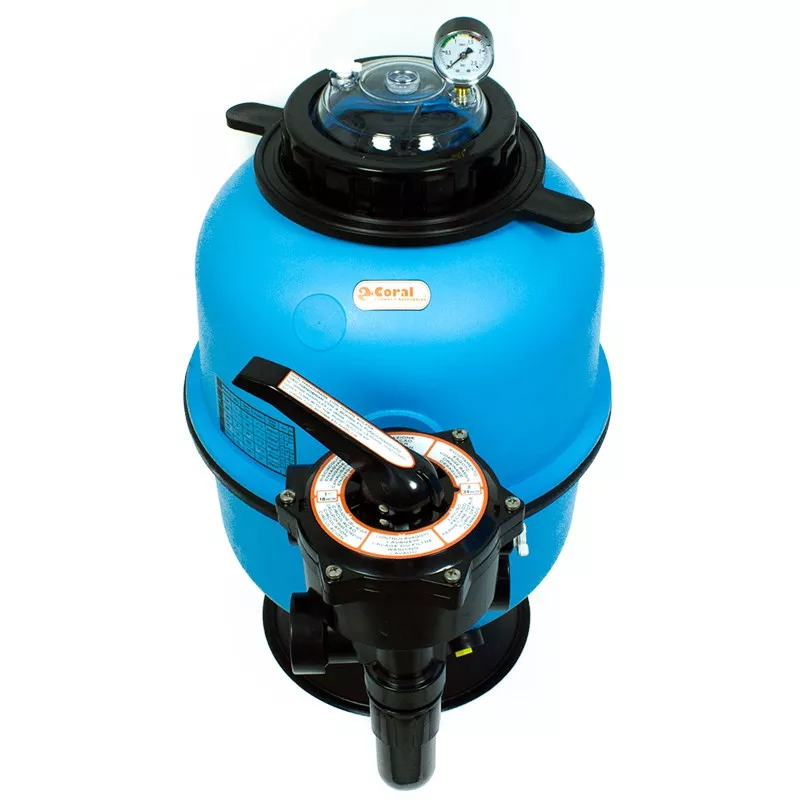

Swimming pool filter Coral Neptuno 400
The Neptuno filter is injected in high-density polypropylene for greater resistance over time.
It includes all the elements for the correct functioning of the filtration system.
MAIN CHARACTERISTICS
- Diameter: 400 mm
- Filtration capacity: 7.000 l/h
- Filtration speed: 50 m3/h
- Maximum working pressure: 2,5 kg/cm2
- Sand load: 60 kg
- Glass load: 54 kg
Screw-on top cover

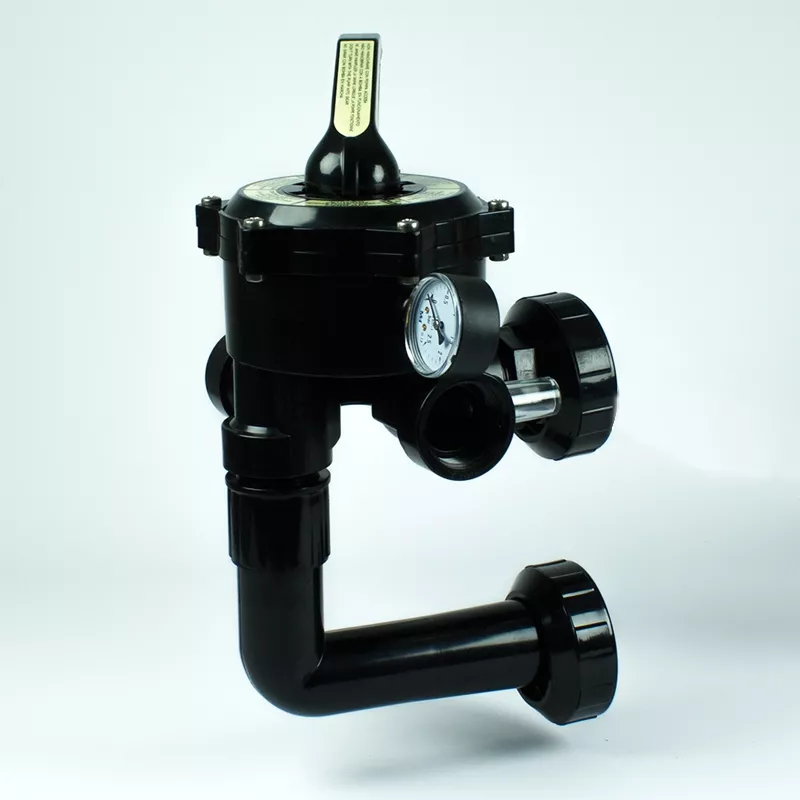

6-way selector valve 1" 1/2
Pressure gauge
Product manufactured at España
what is leakage?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming.
Commissioning
Once the sand filter has been filled (see manual), proceed as follows:
1. Open the valves on the suction pipes leading to the pool (skimmer and drain).
2. Turn the selector valve to the RINSE position.
3. Switch on the pump for 5 minutes.
4. Stop the pump and switch the selector valve to the RINSE position.
5. Reconnect the pump for 1 minute.
6. Stop the pump and switch the selector valve to the FILTRATION position.
The filter is now ready for operation.
Functions of the selector valve
 |
|
|
|
|
| NEPTUNE 300 | NEPTUNE 400 | NEPTUNE 500 | NEPTUNE 600 | |

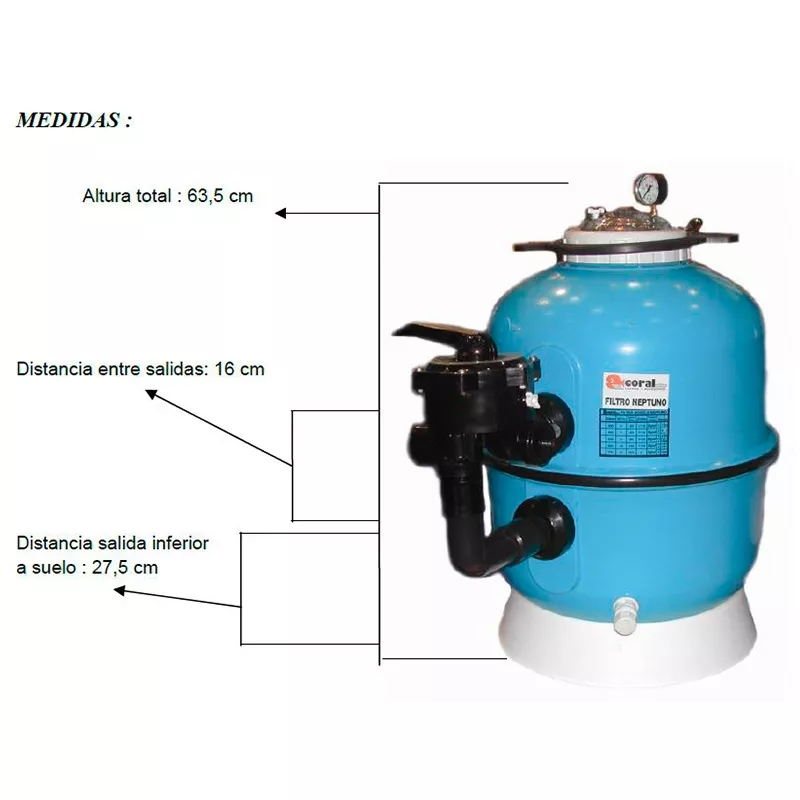

| Diameter (mm) | 300 | 400 | 500 | 600 |
| Height (mm) | 535 | 635 | 725 | 855 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 | 1" 1/2 |
| Flow rate (m3/h) | 4 | 7 | 10 | 14 |
| Sand load (kg) | 30 | 60 | 100 | 150 |
| Filtration surface (m2) | 0,10 | 0,14 | 0,20 | 0,28 |
| GUARANTEE | 2 years | 2 years | 2 years | 2 years |
Data Sheet
- Recommended pool size
- 0-20 m3
- Filter diameter
- 400 mm
- For pumps
- 0.5 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 50 - 100 kg
- Material
- Injected plastic
- Type of filtration
- Sand
