Star Plus 450 pool filter
ref: 06FI57469
sku: 57469
- Swimming pool filter Star Plus series.
- Code: 57469.
- Diameter 450 mm.
- Made of reinforced polyester.
- INCLUDES 6-WAY SELECTOR VALVE 1" 1/2.

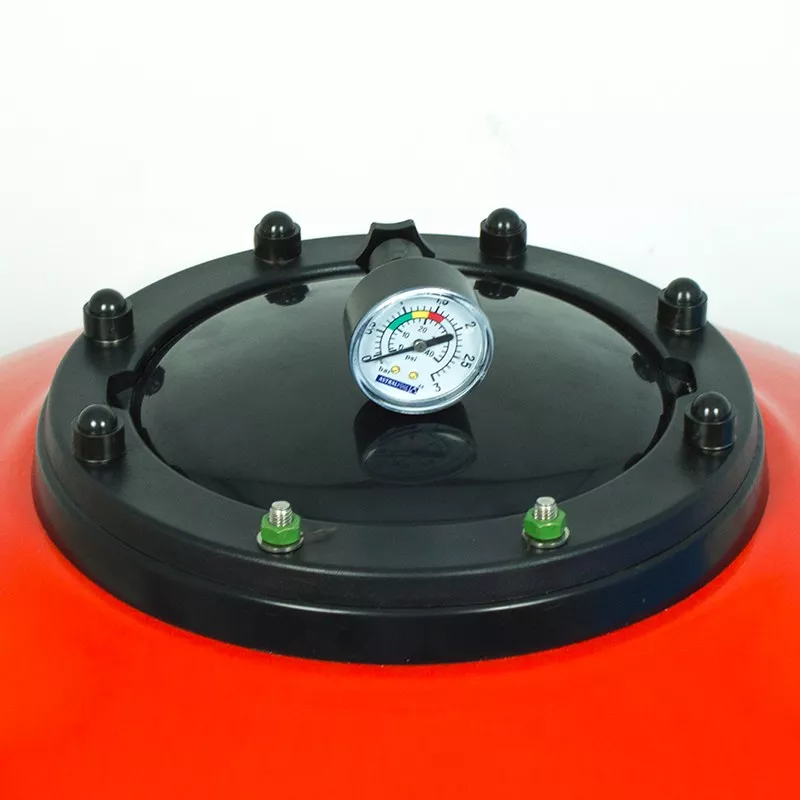

- Pressure gauge on top.
- Cover with screws.
€339.00
IVA included
Free shipping
Technical characteristics
what is leakage?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming
Star Plus 450 Filter
- Recommended for pools up to 40 m3.
- Equipped with pressure gauge and air-water drain.
- Screw lid, with new design.
- Includes 6-way selector valve 1" 1/2.
- Fitted with manifold and diffuser in inalterable plastic material.
- Filter made of reinforced polyester and fibreglass.
- Excellent satin red finish.
- Maximum flow rate: 8 m3/h.
- Filtration speed: 50 m3/h.
- Maximum working pressure: 2.5 kg/cm2.
- Sand load: 70 kg.
- Glass load: 63 kg.
Comparison
 |
|
|
|
|
|
| STAR PLUS 450 | STAR PLUS 500 | STAR PLUS 600 | STAR PLUS 750 | STAR PLUS 900 | |
| Diameter (mm) | 450 | 500 | 600 | 750 | 900 |
| H (mm) | 765 | 760 | 805 | 940 | 1085 |
| M (mm) | 430 | 415 | 455 | 555 | 620 |
| N (mm) | 305 | 290 | 330 | 325 | 390 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 | 2" | 2" |
| Flow rate (m3/h) | 8 | 9,5 | 15 | 22 | 32 |
| Pool volume (m3) | 64 | 72 | 112 | 168 | 248 |
| Sand load(kg) | 70 | 85 | 125 | 300 | 430 |
| Operating pressure (bar) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 14 | 16 | 21 | 38 | 55 |
| WARRANTY | 2 years | 2 years | 2 years | 2 years | 2 years |
Data Sheet
- Recommended pool size
- 20-50 m3
- Filter diameter
- 450 mm
- For pumps
- 0.5 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 50 - 100 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
