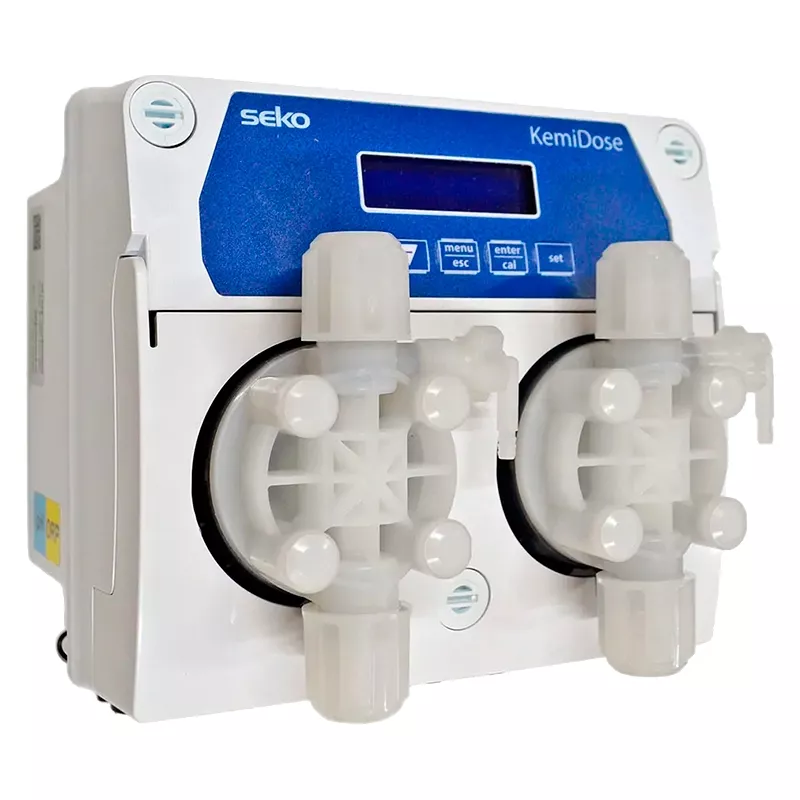

Metering Pump Seko KemiDose Double pH/ORP 5 l/h with WiFi
ref: 05BDKDPR5050AWH00
sku: KDPR5050AWH0
- KemiDose pH/ORP electromechanical dosing pump KemiDose
- Manufacturer: Seko
- Order No: KDPR5050AWH00
- Flow rate 5 l/h at 5 bar
- Measuring range pH: 0 to 14
- ORP measuring range: 200 to 999 mV
- Calibration assisted
- BNC connector with protection
- Included:
- pH probe
- ORP probe
- calibration solutions
- complete installation kit
€1,174.99
IVA included
Free shipping
Technical characteristics
Metering pump Seko KemiDose pH/ORP 5 l/h with WiFi
The electromechanical metering pump model KEMIDOSE PH/ORP, is the most advanced metering pump on the market in its sector, compact, simple, complete, ideal for the most demanding customers.
GENERAL TECHNICAL CHARACTERISTICS
- Manufacturer: Seko
- Code: KDPR5050AWH00
- Dosing proportional to pH and ORP signal
- 220 to 240 Vac power supply
- IP65 protection
- Measuring range pH: 0 to 14
- ORP measuring range: 0 to 1000 mV
- BNC connector with protection
- Digital LCD display
- Proportional dosing and ON/OFF
- Both acid and alkaline dosing option
- Auxiliary relay and dry contact alarm relay
- Assisted and automatic two-point calibration for pH (pH4 and pH7) and 465 mV for ORP
- Warranty: 3 years
Free SEKOLINK App for remote control via WiFi
Thanks to the SekoLink application it is possible to manage your pool:
- Monitoring with limited management.
- Free application for Smartphones, compatible with Android and iPhone.
- For end users.
A WiFi connection is required to make use of these functionalities.
The dosing pump Seko KemiDose pH/ORP includes:
Collar diameter 50 mm
Bottom filter
Bracket with screws
FPM valve (3/8")
Probe holder PSS3 (1/2")
PH probe
ORP probe
Buffer solution pH4
Buffer solution pH7
Buffer solution 465 mV
Injection valve reducer
Temperature probe
4x6 pvc pipe (4 metres)
PE pipe 4x6 (5 metres)
Water
Data Sheet
- Pump type
- Electromagnetic
- Allows level control
- Yes
- Pump control
- Digital
- Automatic control of
- Chlorine ORP and pH
