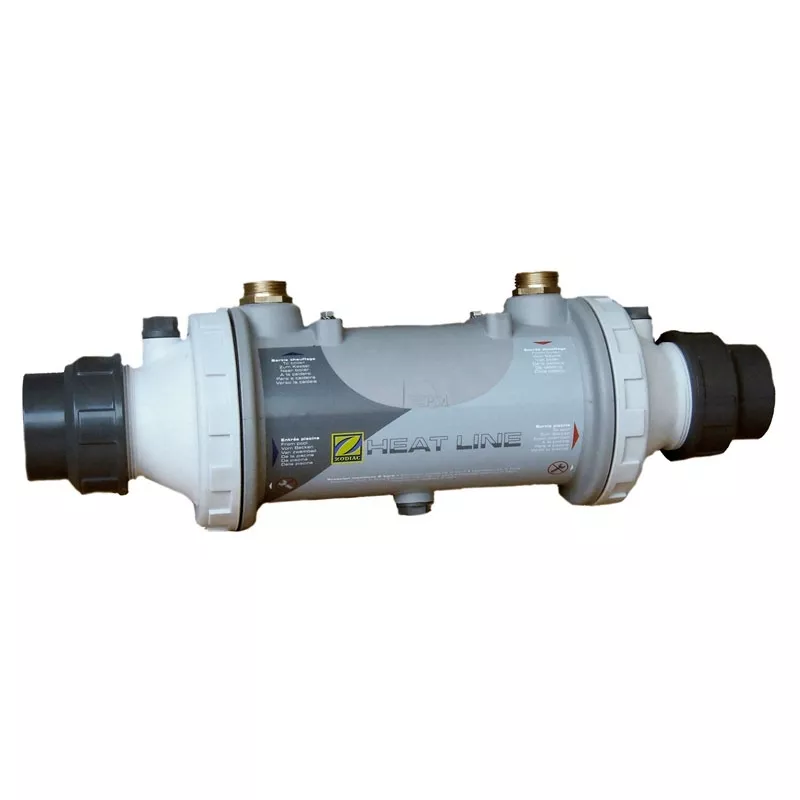

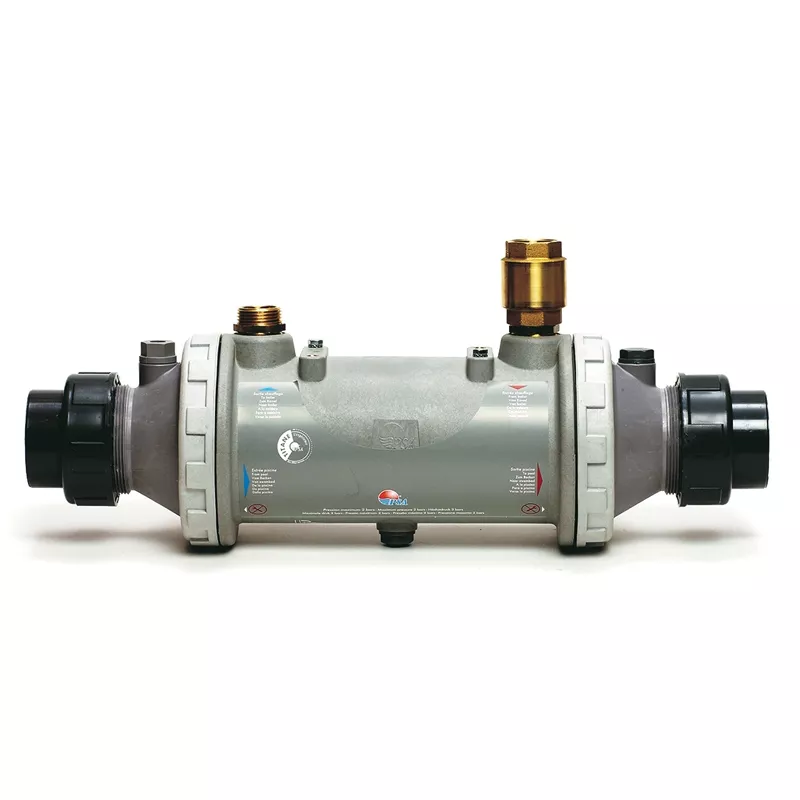

Heat Exchanger Zodiac Heat Line 20 basic
ref: 08CAW49NT20
ean13: 9317545032795
sku: W49NT20
- Heat Exchanger Zodiac Heat Line Basic
- Code: W49NT20
- Compatible with all types of heating (heat pump, boiler, geothermal, solar)
- Maximum robustness with titanium tubes and Noryl-Polyamine casing

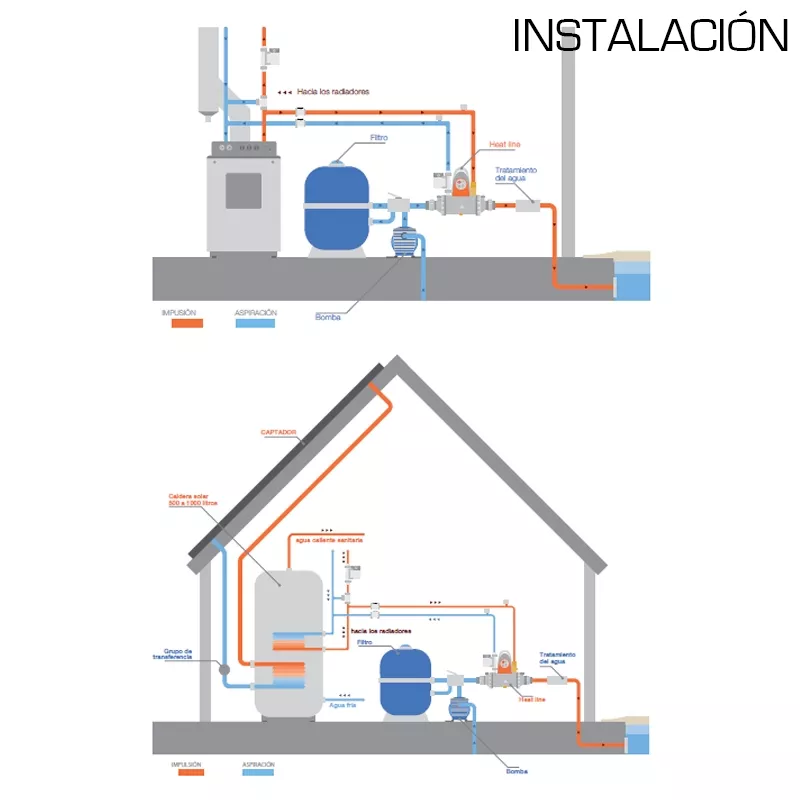

- Easy installation close to the boiler and at the filtration outlet, very resistant
- Power with primary at 90ºC: 20KW
- For outdoor, indoor or covered pools
€669.00
IVA included
Free shipping
Technical characteristics
Heat exchanger Zodiac
The purpose of an exchanger is to transfer calories from one circuit to another. The larger the exchange surface, the more calories the secondary circuit can take from the primary.
The plate heat exchanger is better suited to low-temperature primaries, as it has a larger exchange surface area than a multi-tube heat exchanger.
Heat Line features
- Noryl / injected polyamide casing.
- Titanium tubes.
- Non-return valve.
- Power with primary at 90ºC: 20 KW.
- Primary flow rate (heating): 0.9 m3/h.
- Secondary flow (swimming pool): 10 m3/h.
- Compatible with all types of domestic heating systems.
- Maximum resistance (titanium plates and Noryl / polyamide body).
MODEL | Heat Line 20 | Heat Line 40 | Heat Line 70 |
TECHNICAL CHARACTERISTICS | |||
Power with primary at 90º C (kW) | 20 | 40 | 70 |
Power with primary at 60º C (kW) | 8.5 | 17 | 30 |
Power with primary at 45º C (kW) | 4 | 8 | 14 |
Maximum pressure (pool circuit) | 2 bar | 2 bar | 2 bar |
Maximum admissible temperature | 90º C | 90º C | 90º C |
CONNECTIONS | |||
Primary (heating) | 26/34 Ø mm | 26/34 Ø mm | 26/34 Ø mm |
Secondary (swimming pool) | 63 or 50 Ø PVC | 63 or 50 Ø PVC | 63 or 50 Ø PVC |
Flow rate (m3/h) primary | 0.9 | 1.7 | 3 |
Flow rate (m3/h) secondary | 10 | 15 | 20 |
EQUIPMENT | |||
Body | noryl/polyamide injected | injected noryl/polyamide | injected noryl/polyamide |
Tubes | Titanium | Titanium | Titanium |
Data Sheet
- Power input (at 60ºC)
- 8,5 KW
- Plates / resistors
- Titanium
