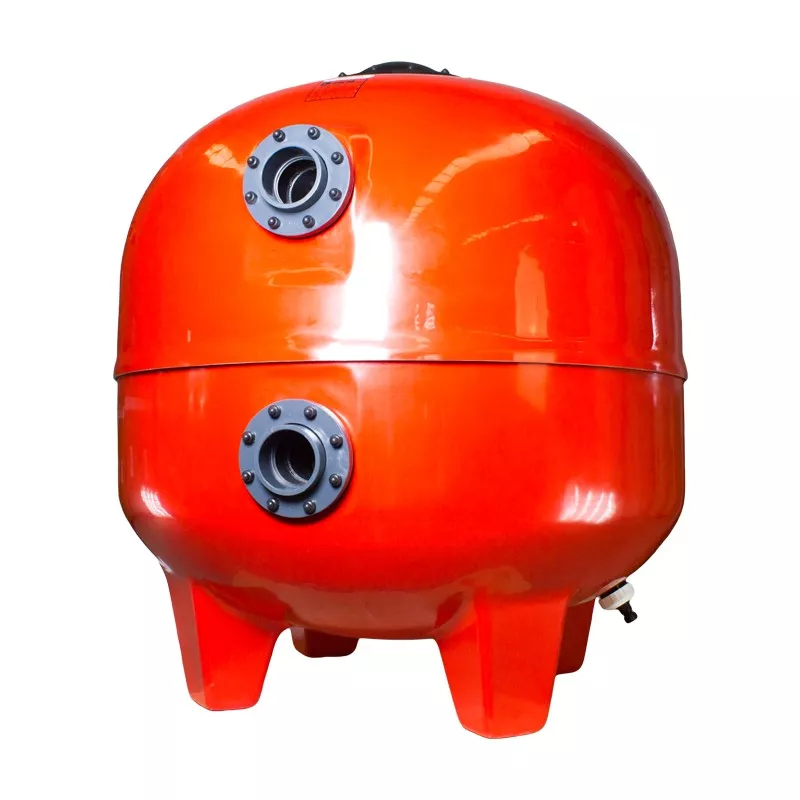

Industrial filter diameter 2.000
ref: 06FI01001415
ean13: 8410189003280
sku: 510009
- Dimensions 2.000 mm ø and 2.200 mm height
- Made of polyester resin and fibreglass
- Lid made of plastic material fixed with screws
- Internal filtration system by means of PVC collector arms
- Connections at 110 mm ( 4" )
- Load of silex sand 3.300Kg and 1.200 of gravel NOT INCLUDED
- The battery of 5 butterfly valves and the pressure gauge panel should be included separately
Technical characteristics
Industrial filter
Laminated filter made of resin and fibreglass. Totally anti-corrosive, with PVC collectors and diffusers.
Characteristics Filter:
- 2,000 diameter filter.
- Filtration capacity: 62.000 litres/hour.
- Outlet: 4" - 110 mm.
- Height: 2.200 mm.
- Kg. of flint sand: 3.300 (not included)
- Kg. of gravel: 1.200 (not included)
- Maximum temperature 50ºC.
- Maximum working pressure 2,5 Kg/cm2.
- FILTRATION SPEED: 20 M3/H/M2
The battery of 5 butterfly valves and the pressure gauge panel should be included separately.
These filters can be supplied with speeds of 30, 40 and 50 m3/h/m2.
