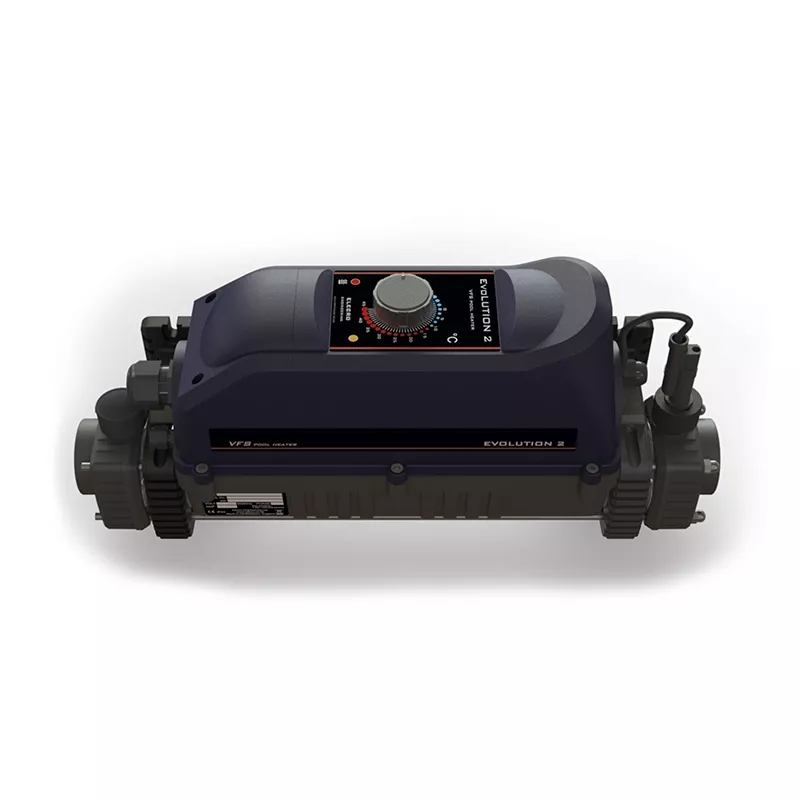

Pool heater Elecro Evolution 2 Titanium 3 KW mono
ref: 08CAELE1500289
- EVOLUTION 2 pool heater.
- Power: 3 KW.
- Type of current: single-phase.
- Manufacturer: Elecro.
- Code: ELE-150-0289.
- Titanium heater and stainless steel tube. AISI-316.
- Temperature control from 0º to 40ºC.
- Maximum pressure: 5 bar.
€695.00
IVA included
Free shipping
Technical characteristics
Features Elecro Evolution 2
- Easy to install.
- Robust and durable.
- Safe and reliable.
- Quiet operation.
- Analogue control with 1ºC accuracy.
- Titanium heating element.
- Stainless steel tube. AISI 316 STAINLESS STEEL TUBE
- Flow detector allows safe use from 1000 litres per hour.
- Floor or wall mounting.
- Safety control thermostat with manual reset button.
- 100% efficiency throughout the life of the product.
- Potentiometer.
Technical specifications
- Power supply: 220~240V.
- Minimum flow:
- 2-6 KW: 1 m3/h
- 9-24 KW: 4 m3/h - Maximum flow: 17 m3/h.
- Heating element: titanium.
- Control thermostat: 0~45ºC(differential 1ºC).
- Safety switch: 60ºC (manual reset).
- Flow detector: contact wire covered with a thin layer of gold and titanium shaft.
- High temperature wiring, silicon sheath and stranded copper conductors.
- Schneidr Electric contactor.
- Seals: special high temperature polymer formulation.
- Water connections: 1.5" BSP female connection, with ABS adapter for 1.5" pipes up to 50 mm.
- Operating pressure: 4 bar max.
- Application of the standards:
- European Electromagnetic Compatibility directive 89/336/EEC and 93/068/EEC - Standardised norms:
- EN55014 - EN55104
- EN5501
- EN5502
- CEI 801-4
- CEI 801-2
- CEI 801-3
- The European Low Voltage Directive 72/23/EEC The Harmonised Standard EN 60335-2-35
The heater provides the efficiency, safety and above all the reliability necessary to heat the pool to the desired temperature effortlessly.
All Elecro heaters comprise unique and proven loop heaters, through which the water flows in a vortex. This technology provides superior efficiency and a long life expectancy for the product, allowing it to prevent the formation of deposits on the heaters.
The heater feet integrate a "ball-and-socket" design. They allow the heater to be installed on the floor or vertically to the wall to control the thermostat as easily as possible.
The analogue thermostat allows the water temperature to be controlled with 1°C accuracy.
Designed and manufactured to the highest standards. The Elecro Evolution heater is easy to install, simple to use and offers a durable and robust heating solution.
 |
|
|
|
||
| EVOLUTION 2 3 KW | EVOLUTION 2 6 KW | EVOLUTION 2 9 KW | EVOLUTION 2 12 KW | ||
| POWER (W) | 3.000 | 6.000 | 9.000 | 12.000 | |
| POWER SUPPLY (V) | 200 - 240 | 200 - 240 | 200 - 240 | 200 - 240 | |
FLOW (m3/h) |
Minimum | 1 | 1 | 4 | 4 |
| Maximum | 17 | 17 | 17 | 17 | |
THERMOSTAT (º C) |
control | 0 - 45 | 0 - 45 | 0 - 45 | 0 - 45 |
| security | 60 | 60 | 60 | 60 | |
| PRESSURE (bar) | 4 max | 4 max | 4 max | 4 max | |
Data Sheet
- Type of current
- Single-phase 220V
- Power input (at 15ºC)
- 0 - 3 kw
- Resistance in
- Titanium
- Thermostat
- Analogue
