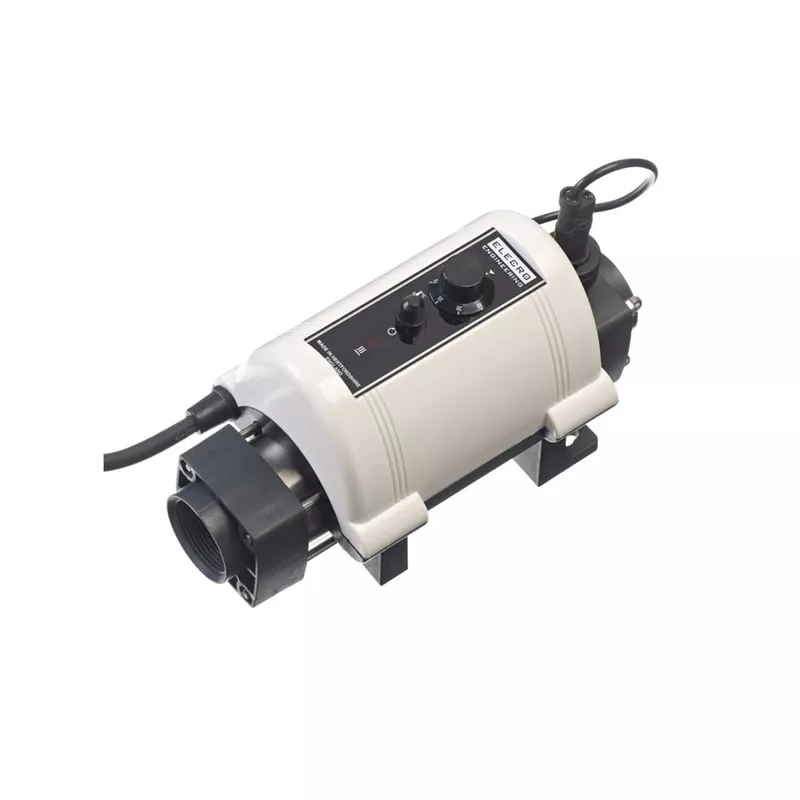

Swimming pool heater Elecro Nano 3 KW mono
- Nano pool heater.
- Power: 3 KW.
- Type of current: single phase.
- Manufacturer: Elecro.
- Code: N-AGP-EU-T.
- Titanium heating element.
- Dimensions: 422 x 150 x 206 mm.
- Easy to install: Plug&Play.
- Includes electrical connection cable.
Technical characteristics
ELECRO NANO FEATURES
- Easy to install: Plug&Play.
- Fully equipped.
- Robust and durable.
- Safe and reliable.
- Ideal heater for recharging/reserving the heat pump.
- Analogue thermostat control with 1°C accuracy.
- Anti-corrosive titanium heating element.
- Stainless steel tube. BS 316L (EN1.4432).
- The flow detector allows safe use from 1000 litres per hour.
- Floor or wall mounting.
- Safety control thermostat with manual reset button.
- 100% efficiency for the life of the product.
TECHNICAL SPECIFICATIONS
- Power supply: 220~240V.
- Minimum flow: 1 m3/h
- Maximum flow: 17 m3/h.
- Heating element: titanium.
- Control thermostat: 0~40ºC(graduation 1ºC).
- Safety thermostat: 55ºC (manual reset).
- Flow detector: contact wire covered with a thin layer of gold and titanium shaft.
- High temperature wiring, silicone sheath and stranded copper conductors.
- Schneidr Electric contactor.
- Seals: special high temperature polymer formulation.
- Water connections: 1" 1/2 BSP female thread, with 1" 1/2 or 1" 1/4 adapters for connection to flexible pipe.
- Operating pressure: 4 bar maximum.
- Application of the standards:
- European Electromagnetic Compatibility directive 89/336/EEC and 93/068/EEC - Standardised norms:
- EN 55014 - EN55104
- EN5501
- EN5502
- CEI 801-4
- CEI 801-2
- CEI 801-3
- The European Low Voltage Directive 72/23/EEC The Harmonised Standard EN 60335-2-35
The Nano Splasher heater is equipped with anti-corrosive titanium heaters, which enable it to offer very high robustness and durability.
The design of the heater offers the user safety, reliability and efficiency. It has also been designed to be very easy to install with its"Plug&Play" character. The analogue thermostat provides control over the pool temperature, while the safety thermostat prevents the heater from overheating.
Robust and reliable, this heater is built to last. It allows you to reach a perfect bathing temperature with very simple controls.
The heaters Elecro comprise unique and proven loop heaters, through which the water flows in a vortex. This technology provides superior efficiency and a long life expectancy, preventing the formation of deposits on the heating elements.
The heater can be floor or wall mounted. Adapters are supplied to allow connections to standard flexible piping for above ground pools. Likewise, the inlet and outlet connectors are designed to connect to metric pipe standards.
Protection and safety of the equipment is provided by the flow detector which allows the device to operate from 1000 litres per hour.
Data Sheet
- Type of current
- Single-phase 220V
- Power input (at 15ºC)
- 0 - 3 kw
- Resistance in
- Titanium
- Thermostat
- Analogue
