Ramses Aster 550 Sena 1 hp underground shed

what are the contents of the shed?

• Ramses model Ramses underground shed
• Aster filter filter of 550 mm Ø with FLAT manual selector valve TOP
• Pump model Sena of 1CV
• 50 mm Ø PVC pipes and valves

Main advantages of the 41910:

• The compact Ramses thanks to its special reinforcements on the sides avoids any kind of deformation.
• The use of a TOP valve reduces the size of the compact as well as making it easier for the user to handle.
• It has a return valve that facilitates the maintenance option.
• The outlet fittings of the Selector Valve are glued, thus reducing the possibility of leakage.
• All selector valve outlets have three-piece fittings, so they can be disassembled without having to cut the pipes.

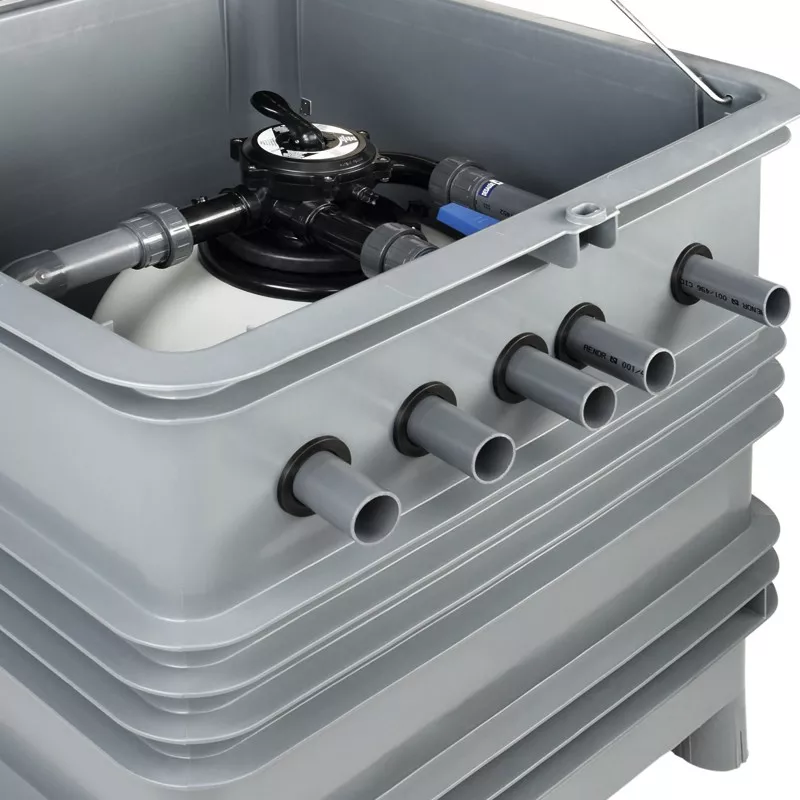

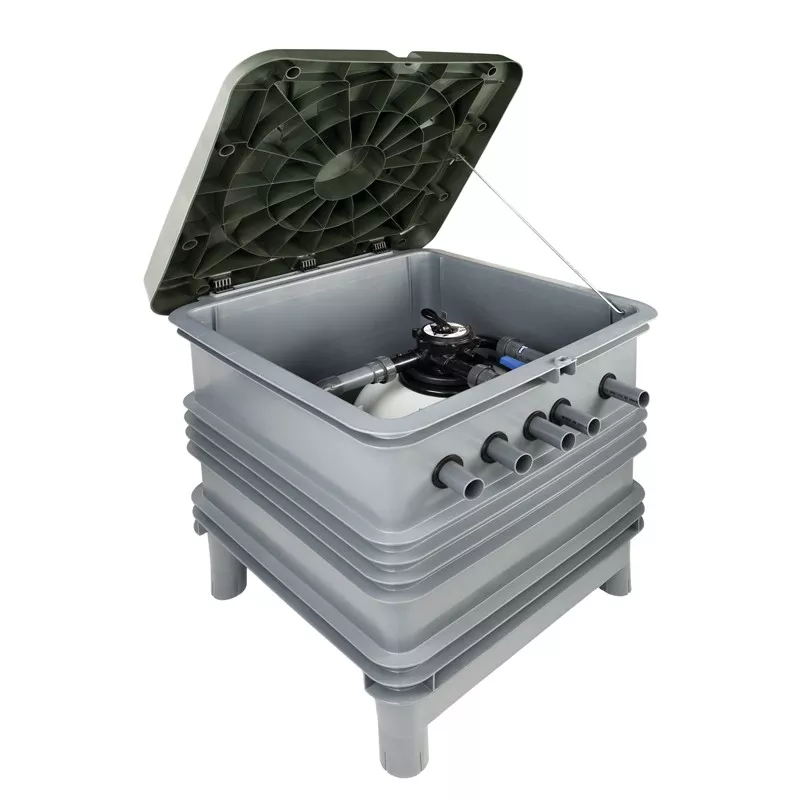

Compact for in-ground use for swimming pools, consisting of an injected fibreglass-reinforced polymer housing and a cover.

It houses a Ø 550 mm Aster filter with a TOP manual selector FLAT valve and a 1 HP Sena recirculation pump.

Characteristics Astralpool Aster filters

• Laminated sand filters, in polyester resin and fibreglass, ivory colour.
• It stands out for the use of 1" diameter collectors and diffuser made of unalterable plastic material PVC and PP.
• Equipped with pressure gauge, manual air vent and manual water drain.
• Six-way side selector valve for filtering, washing, rinsing, recirculation, emptying and shut-off operations.
• Polypropylene base, except for 900 mm diameter, which is made of polyester resin and fibreglass.
• Maximum filtration speed: 50m3/h/m2.
• Maximum working pressure: 2.5 kg/cm2.
• Screwless lid with quick opening and closing. Patented system.

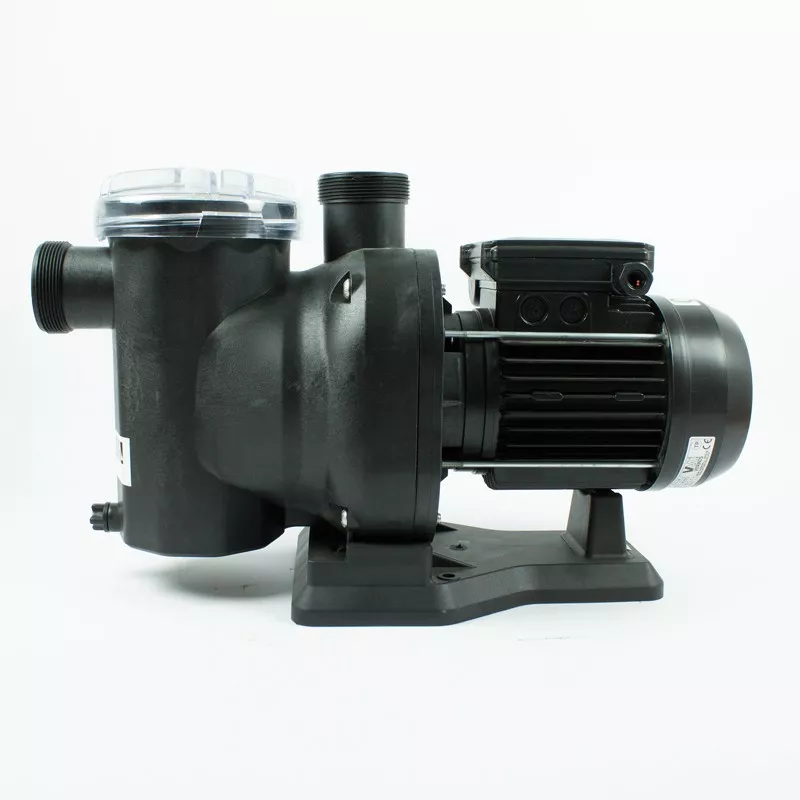

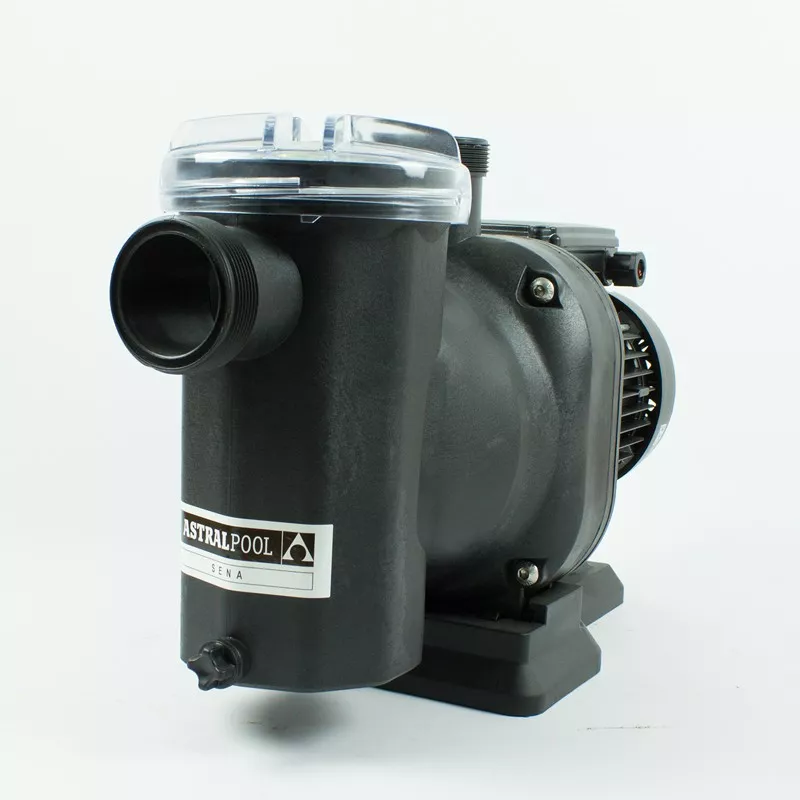

Sena pool pump

In the Sena family of pumps, both maximum flow and low noise levels go hand in hand with the intention of fully satisfying the requirements of the private pool and with an attractive design that is already characteristic of AstralPool. It is worth highlighting their self-suction capacity, above 2 m without a foot valve.

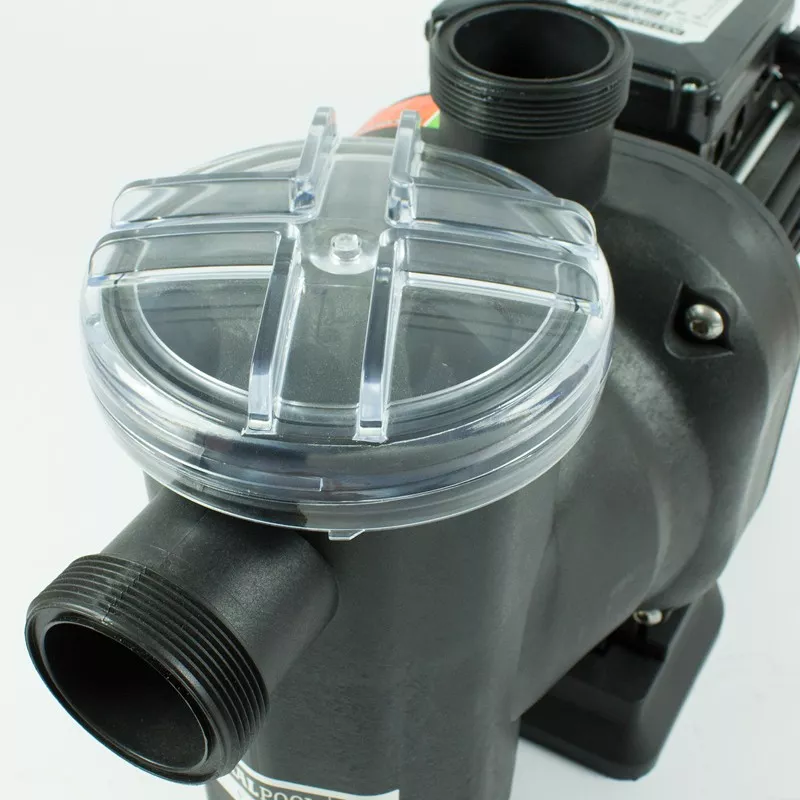

In addition, Sena pumps are made of technical plastics with a 2-litre pre-filter and a transparent cover that allows the inside of the pre-filter to be seen.

The characteristics of the pool pump Astralpool Sena:

• Stainless steel pump screws.
• Connection fittings for suction and impulsion of 1,5" for Ø 50mm hose.
• Mechanical seal made of AISI 316.
• Impeller made of NORYL ®.
• Pump body and diffuser made of polypropylene with mineral charge and glass fibre.
• Class F insulation and IP-55 motor protection, allowing them to work in environments with high humidity and high temperatures.
• Self-priming capacity above 2 m.
• Standard range at 50 Hz, also available at 60 Hz.
