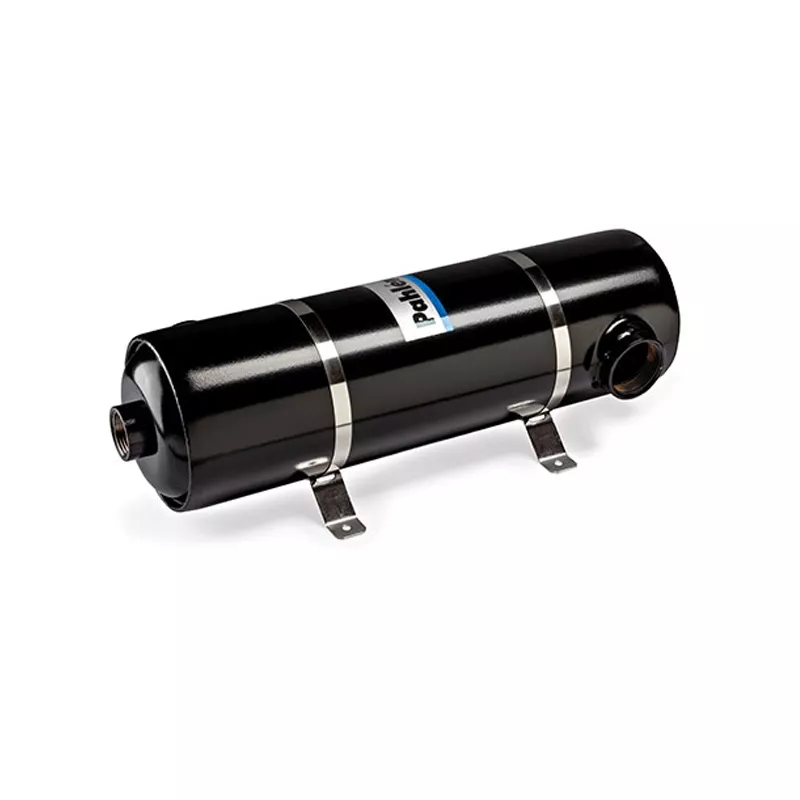

75 KW Pahlén Maxi-Flo MF260 heat exchanger
ref: 08CAHEW0075
sku: 11367
- Water-water exchanger.
- Power: 75 KW.
- Manufacturer: Pahlén.
- Recommended for use in swimming pools and other installations where there is a high heat demand with a low pressure drop.
€779.00
IVA included
Free shipping
Technical characteristics
TECHNICAL CHARACTERISTICS OF THE PAHLÉN HEAT EXCHANGER
- Light and compact design.
- Made of AISI-316 stainless steel, which protects against corrosion caused by pool water treatment products.
- Includes stainless steel fixings.
- Primary working pressure Drop H (m): 0.4 bar.
- Secondary working pressure Drop H (m): 1.0 bar.
- Capacity with temperature difference of 60º-70º.
- Maximum working temperature: 110 ºC.
INSTALLATION
All models can be installed with heaters, heat pumps, solar panels or other heat sources.
Water-water exchanger made of AISI-316 stainless steel for maximum heat transfer efficiency.
Ideal for installations where there is a high heat demand with a low pressure drop:
- Solar collectors.
- Boilers.
- Swimming pools.
Data Sheet
- Power input (at 60ºC)
- 75 KW
- Plates / resistors
- Stainless steel. AISI-316
