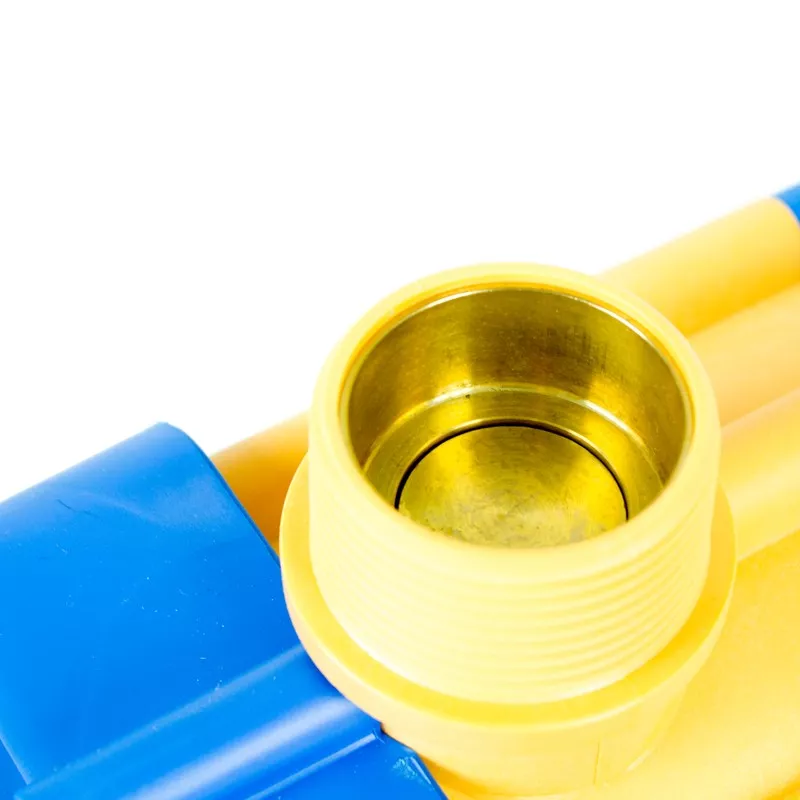

MasControl Pressure Controller

MASCONTROL is the enhanced version of the Presscontrol - the component is extra-large and has 1" 1/4 fittings. This allows for reduced pressure losses and increased flow rates.

Pressure Controller Applications

• MasControl is a newly designed device that ensures optimum control of electric pumps installed in hydraulic systems. Thanks to the electronic control and the hydraulic design, it eliminates pressure fluctuations, typical of an installation with an expansion vessel (it replaces the traditional expansion tank system). It does not require air recharging and eliminates annoying pressure and flow variations during use).
• Derived from a hydraulic project and equipped with electronic logic, it detects pressure and flow at the same time and automatically manages the operation of the pump.
• It reduces the number of motor starts, thus saving money.
• Protects the pump against dry running. No regulation or maintenance is required.

MasControl operation.

• This electronic controller commands the pump to start and stop automatically when any tap or valve in the installation is opened or closed. When the pump starts, it keeps running as long as any tap remains open, transmitting a constant flow and pressure to the network.

what does the Pressure Controller incorporate?

• Manual start button
• Safety system that prevents the pump from running without water.
• Check valve

Technical characteristics of the MasControl pressure controller.

• Start pressure 1.5 kg/cm2.
• Max. pressure 10 kg/cm2. Max. current 16 Amp.
• Voltage 220 volt. single phase.
• Max. recommended flow 7.800 l/h.
• For pumps up to 2 hp. Without cables.
