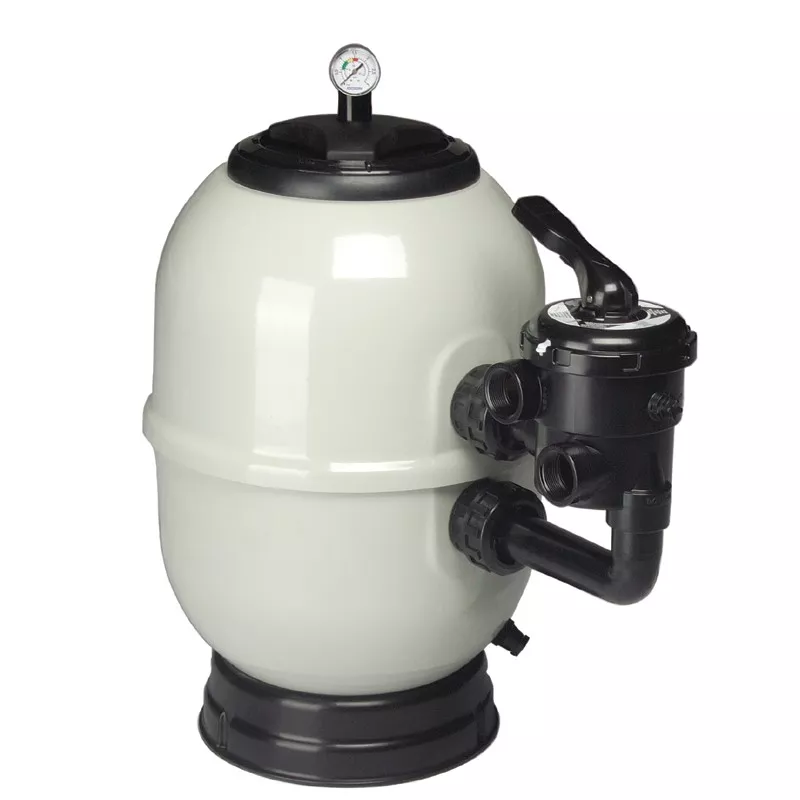

Astrapool Aster D.750 Filter with Side Selector Valve
ref: 06FI00500
- Astralpool swimming pool filter Aster series
- Code 00500
- Diameter 750 mm
- Constructed of polyester resin and fibreglass
- Quick-opening top cover
- INCLUDES 6-WAY 2" SELECTOR VALVE.
- With pressure gauge, manual air and water purge
€999.00
IVA included
Free shipping
Technical characteristics
what type of pool is the Astralpool Aster D.750 recommended for?
Recommended for private pools up to 120 m3.
General characteristics of Astralpool Aster Filters
- Laminated sand filters, in polyester resin and fibreglass, ivory colour.
- It stands out for the use of 1" diameter collectors and diffuser made of unalterable plastic material PVC and PP.
- Equipped with pressure gauge, manual air vent and manual water drain.
- Six-way side selector valve for filtering, washing, rinsing, recirculation, emptying and shut-off operations.
- Polypropylene base, except for 900 mm diameter, which is made of polyester resin and fibreglass.
- Maximum filtration speed: 50m3/h/m2.
- Maximum working pressure: 2.5 kg/cm2.

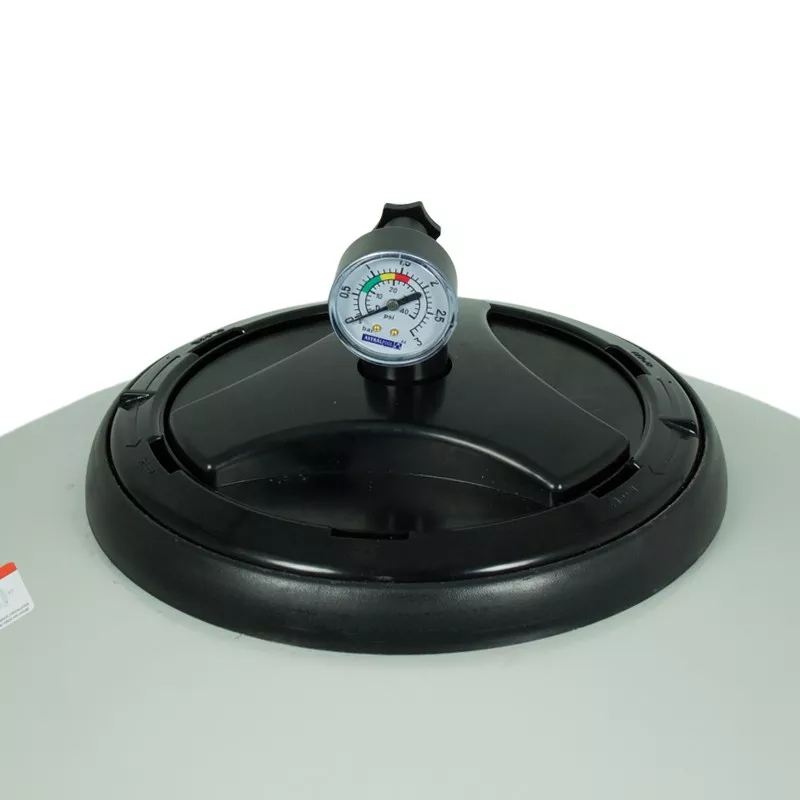

- Screwless lid with quick opening and closing. Patented system.
Delivery contents:
- Aster Filter
- 2" selector valve
- Pressure gauge, manual air vent and manual water drain kit
Filter dimensions Astralpool Aster with Side Selector Valve
 |
|
|
|
 |
|
|
|
| ASTER 350 | ASTER 450 | ASTER 500 | ASTER 600 | ASTER 650 | ASTER 750 | ASTER 900 | |
| D (mm) | 350 | 450 | 500 | 600 | 650 | 750 | 900 |
| H (mm) | 780 | 795 | 770 | 850 | 880 | 945 | 1050 |
| M (mm) | 420 | 430 | 415 | 455 | 480 | 555 | 660 |
| N (mm) | 295 | 305 | 290 | 330 | 355 | 325 | 390 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 | 1" 1/2 | 1" 1/2 | 2" | 2" 1/2 |
| Sand load (kg) | 50 | 70 | 95 | 125 | 200 | 240 | 400 |
| Flow rate (m3/h) | 5 | 8 | 9 | 14 | 15 | 21 | 30 |
| Max. working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 12,5 | 15,5 | 18 | 21 | 24 | 30 | 51 |
| WARRANTY | 2 years | 2 years | 2 years | 2 years 2 years | 2 years | 2 years 2 years | 2 years |
Data Sheet
- Recommended pool size
- 80-120 m3
- Filter diameter
- 750 mm
- For pumps
- 1.5 HP
- Valve
- Side 2
- Sand load (kg)
- 250 - 300 kg
- Material
- Laminated polyester
