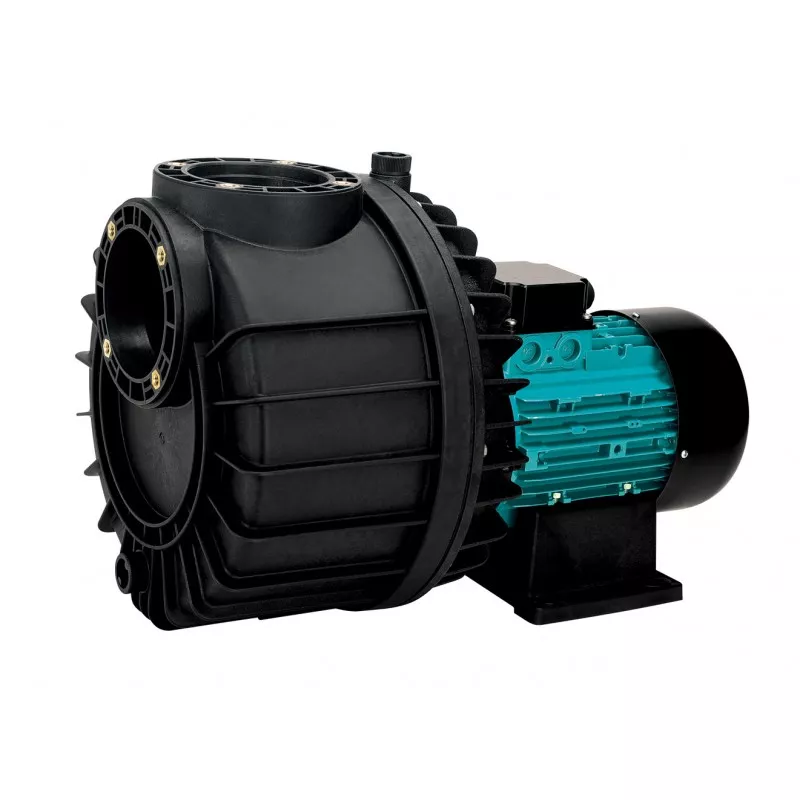

Counter-current swimming pump Espa Nadorself 300M
ref: 03NC43702
ean13: 8421535149675
sku: 203166
- Pump Espa mod. NADORSELF 300M
- Single-phase 230 V and a power of 2.95 HP
- Asynchronous motor with constant speed and continuous operation
- Max. flow rate 65 m3/h
- Designed for counter-current swimming in swimming pools, balneotherapy centres, gyms and spas, both public and private
- With a 2 1/2" curved impeller adjustable in 3 positions
€769.00
IVA included
Free shipping
Technical characteristics
Nadorself pump
Self-priming and compact centrifugal pumps for moving large volumes of water.
Specially designed for counter-current swimming equipment in private, collective and public swimming pools, in balneotherapy or thalassotherapy centres or in private or public gyms and spas.
This equipment can transform a swimming pool into a space for leisure, sport and health, especially in small swimming pools.
The self-priming capacity of this model, which is achieved thanks to a front suction flap, allows for great flexibility in installation, which can be carried out in technical areas without the need for building work on the part adjacent to the pool basin. Its configuration in plastic materials makes it highly resistant to the corrosion of swimming pool water, regardless of the disinfection system used
Outstanding features of the Nadorself series:
It incorporates an original and useful 2 1/2" curved impulsion threaded adjustable to 3 positions and 2 1/2" threaded flanged fitting on the axial suction. The single-phase models incorporate thermal protection of the motor.
Characteristics of the Nadorself series:
- Foot / Base: Included.
- Racors: Threaded.
- Purge plug: Yes.
- Check valve: No.
Electrical characteristics.
- Electrical insulation: Class F.
- Service factor: S1.
- Degree of protection: IP55.
- Reset: Automatic.
- Motor type: Asynchronous.
- Motor rotation type: Constant speed.
- Type of service: Continuous.

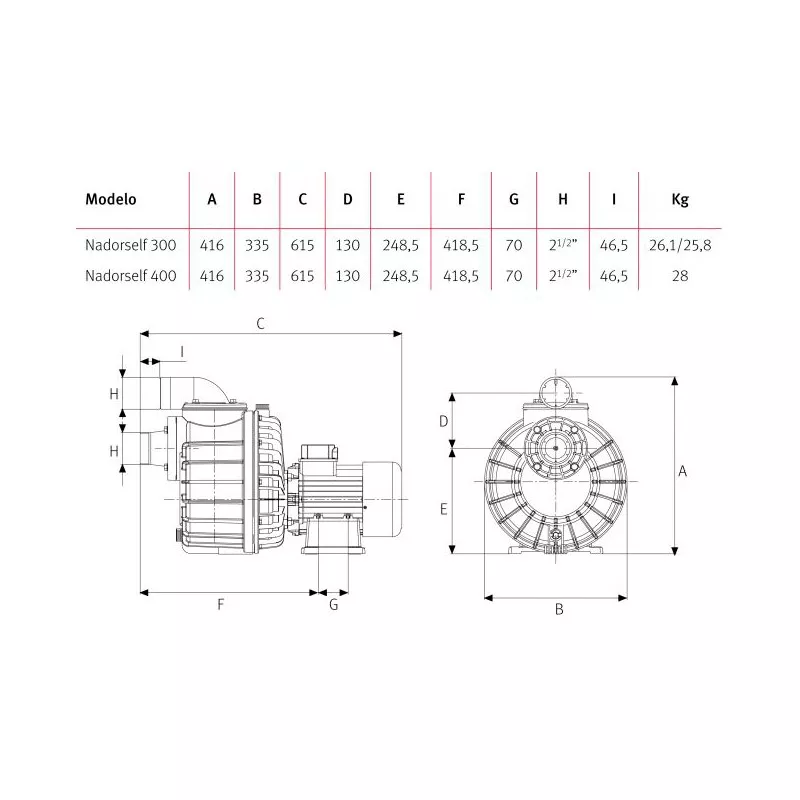

Constructive characteristics.
- Inlet diameter: 2 1/2" G.
- Discharge diameter: 2 1/2" G.
- Sealing by means of: Mechanical seal.
- Stages: Single-stage centrifugal pump.
- Motor cooling: Fan.
- Suction type: Self-priming.
- Suction connection type: Thread.
- Type of connection at discharge: Thread.
- Impeller type: Closed.
Materials.
- Mechanical seal: Alumina-Graphite.
- Suction body: PP + 30% GF.
- Discharge body: PP + 30% GF.
- Enclosing body: PP + 30% GF.
- Diffuser: PP + 30% GF.
- Pump shaft: Stainless steel AISI 420.
- Motor shaft: Stainless steel AISI 420.
- Motor casing: Aluminium.
- Impeller/s: PPO + 30% GF.
- Seals: NBR.
- Base-foot material: PP + 30% GF.
- Seal base material: PP + 30% GF.
- Screws: Stainless steel AISI 304.
Limits of use.
- Maximum suction (m): 4.
- Maximum number of motor starts (starts/minute): 0,5.
- Maximum working pressure (bar): 4.
- Liquid temperature (ºC): Min: 4 - Max: 35.
Electrical Data
| Single-phase motors | Three-phase motors | Intensity | Absorbed Power P1 KW | Motor Power P2 | Capacitor Capacity | |||
| 50 hz | 50 hz | 1- | 3- | 1- | 3- | KW | HP | |
| Nadorself 200M | Nadorself 200 | 10,2 | 7/4,1 | 2,2 | 2,2 | 1,5 | 2,01 | 40µF-450V |
| Nadorself 300M | Nadorself 300 | 13,4 | 8,6 | 3 | 3 | 2,3 | 3,08 | 60µF-450V |
| Nadorself 400 | 11,8 | 3,8 | 3 | 4,02 | ||||

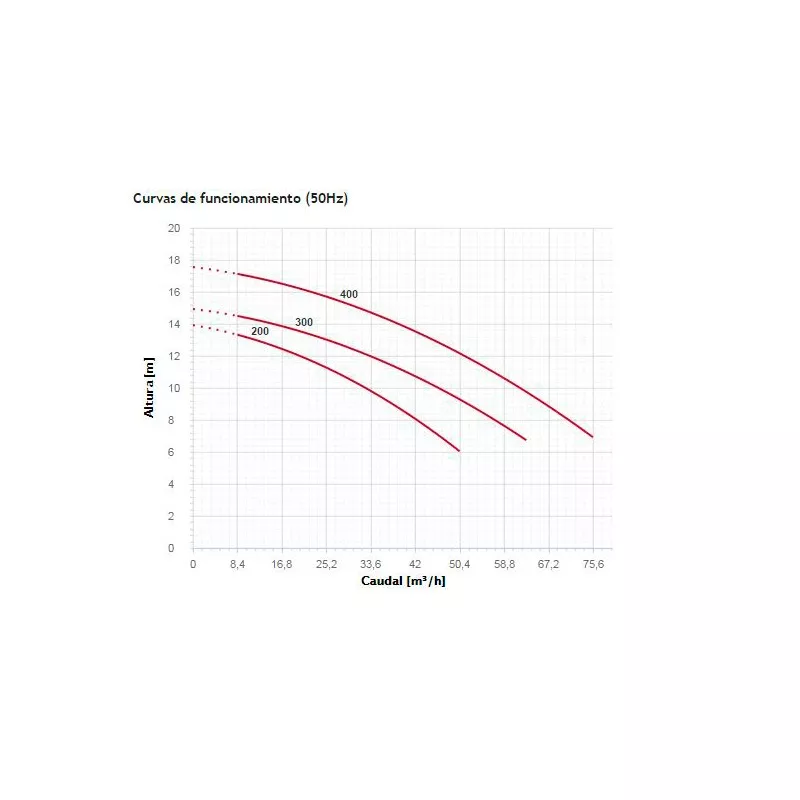

Hydraulic Data.
| Single-phase motors | Three-phase motors | Flow rate (l/min) | 0 | 140 | 280 | 420 | 560 | 700 | 840 | 980 | 1120 | 1260 |
| 50 Hz | 50Hz | Flow rate (m3/h) | 0 | 8,4 | 16,80 | 25,2 | 33,6 | 42,0 | 50,4 | 58,8 | 67,2 | 75,6 |
| Nadorself 200M | Nadorself 200 | mca | 13,9 | 13,3 | 12,4 | 11,3 | 9,8 | 8,1 | 6,0 | |||
| Nadorself 300M | Nadorself 300 | 14,9 | 14,5 | 13,9 |
13,0 |
12,0 | 10,7 | 9,3 | 7,6 | |||
| Nadorself 400 | 17,6 | 17,1 | 16,5 | 15,7 | 14,7 | 13,5 | 12,2 | 10,6 | 8,9 | 6,9 |
