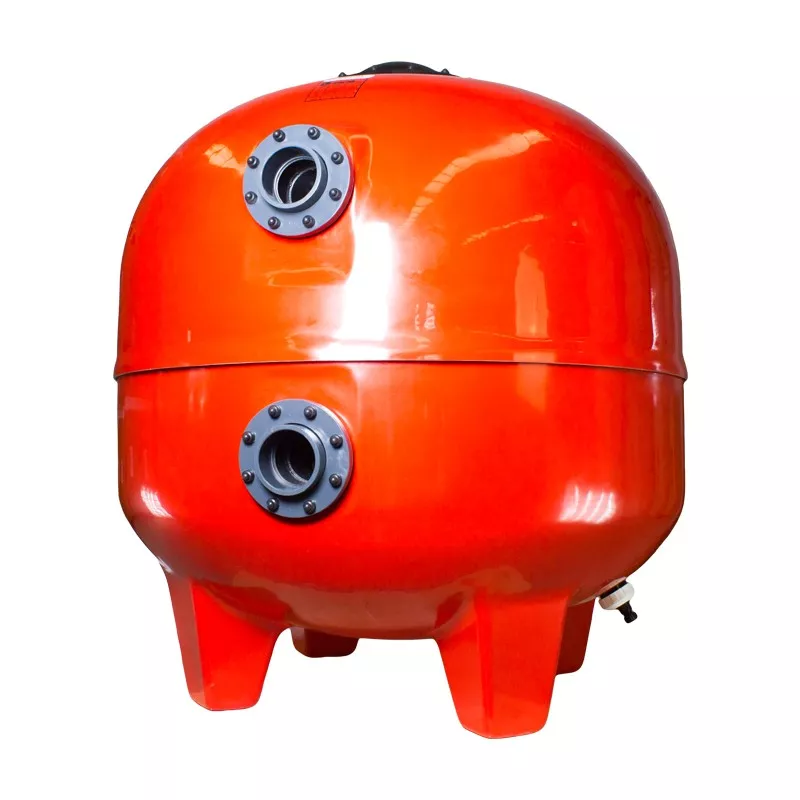

Industrial filter diameter 2.400
ref: 06FI01001417
ean13: 8410189003303
sku: 510013
- Dimensions 2.400 mm ø and 2.510 mm height
- Constructed of polyester resin and fibreglass
- Lid made of plastic material fixed with screws
- Internal filtration system by means of PVC collecting arms
- Connections at 125 mm ( 4 1/2" )
- Load of silex sand 4900 Kg and 2000 of gravel NOT INCLUDED
- The battery of 5 butterfly valves and the pressure gauge panel should be included separately
Technical characteristics
Industrial filter
Laminated filter made of resin and fibreglass. Totally anti-corrosive, with PVC collectors and diffusers.
Filter characteristics:
- 2,400 diameter filter.
- Filtration capacity: 84,000 litres/hour.
- Outlet: 4" 1/2 - 125 mm.
- Height: 2.510 mm.
- Kg. of flint sand: 5.900 (not included)
- Kg. of gravel: 3.000 (not included)
- Maximum temperature 50ºC.
- Maximum working pressure 2,5 Kg/cm2.
- FILTRATION SPEED: 20 M3/H/M2
The battery of 5 butterfly valves and the pressure gauge panel should be included separately.
These filters can be supplied with speeds of 30, 40 and 50 m3/h/m2.
