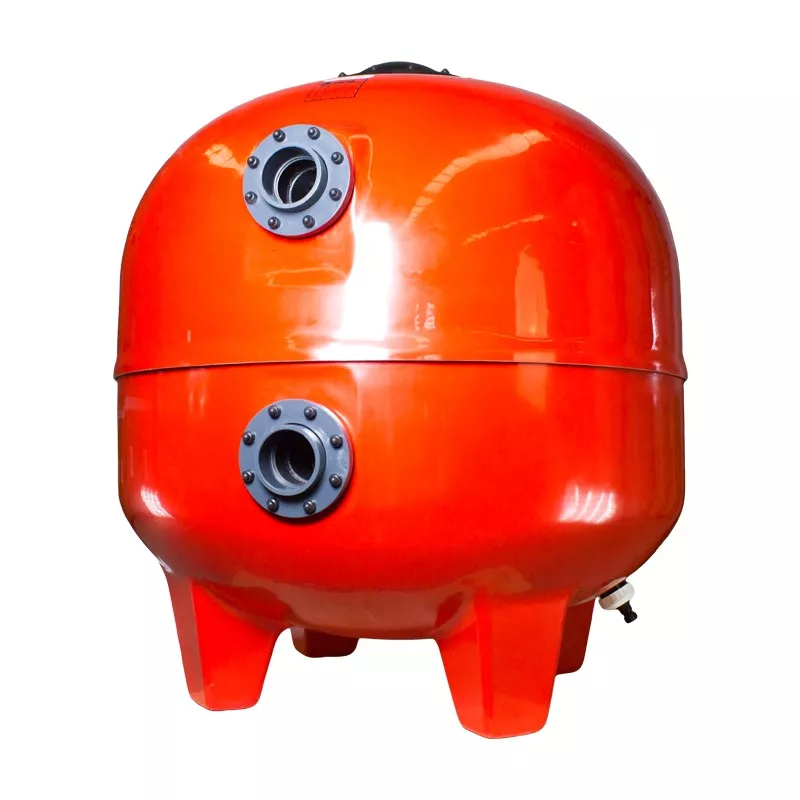

Industrial filter diameter 1.800
ref: 06FI01001414
ean13: 8410189003273
sku: 510007
- Dimensions 1.800 mm ø and 2.000 mm height
- Made of polyester resin and fibreglass
- Lid made of plastic material fixed with screws
- Internal filtration system by means of PVC collecting arms
- Connections at 90 mm ø ( 3" )
- 2600 Kg of silex sand and 900 Kg of gravel NOT INCLUDED
- The battery of 5 butterfly valves and the pressure gauge panel should be included separately
Technical characteristics
Industrial filter
Laminated filter made of resin and fibreglass. Totally anti-corrosive, with PVC collectors and diffusers.
Filter characteristics:
- 1,800 diameter filter.
- Filtration capacity: 50.000 litres/hour.
- Outlet: 3" - 90 mm.
- Height: 2.000 mm.
- Kg. of flint sand: 2.600 (not included)
- Kg. of gravel: 900 (not included)
- Maximum temperature 50ºC.
- Maximum working pressure 2,5 Kg/cm2.
- FILTRATION VELOCITY: 20 M3/H/M2
The battery of 5 butterfly valves and the pressure gauge panel should be included separately.
These filters can be supplied with speeds of 30, 40 and 50 m3/h/m2.
SHIPPING COSTS ARE NOT INCLUDED.
