Astrapool NanoFiber Auto 200 filter with automatic valve
ref: 06FI67357A
sku: 67357-A
- Swimming pool filter Astralpool NanoFiber Auto 150
- Code: 67357-A
- Filtration surface: 6,0m2
- Flow rate: 18 m3/h
- Automatic top handle
- Operations: filtration and backwashing
- Nanofibre cartridge
- Filtration degree: 5-8 microns
- Compatible with existing equipment
- 2" connections
- Equipped with pressure gauge

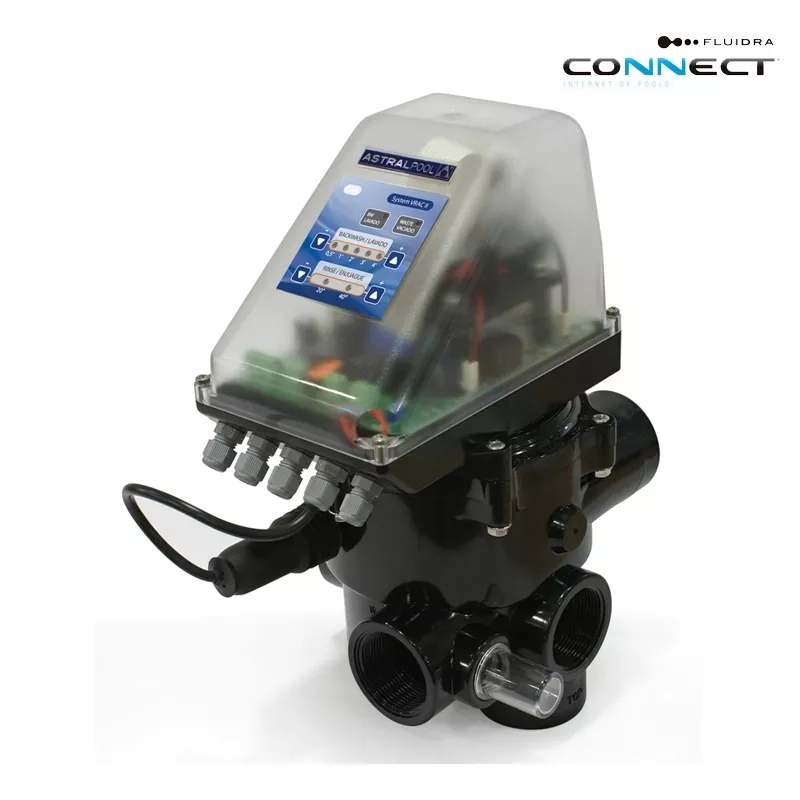

- Includes 2" automatic selector valve Astralpool 57187
Technical characteristics
Self-cleaning filter NanoFiber Auto
The shower starts in the backwash position. In order to achieve a correct backwashing of the filter medium, the upper filter handle has to be turned. The upper filter handle is manually operated and can be easily automated. Turning the handle in turn causes the cartridge to rotate, which ensures that the cartridge is completely clean.
Both the Nanofiber filter material and the central collector shower system are exclusive to AstralPool. More efficient filtration: water flow redirection system.
The water flow is directed tangentially. This innovative fact favours the homogeneous distribution of dirt, increasing the filter's useful life.
Characteristics Filter 67357-A
- Handles. Easier to open and transport.
- Constructive Material. Injected plastic.
- Maximum temperature: 40º C.
- Connections: 2 inches.
- Pressure gauge: Max. pressure 2,5 bar.
- Tinted plastic. Easy to check the level of dirt in the water.
- Filtration quality: Up to 5-8 microns (µ).
- Operations: Filtration and Backwashing.

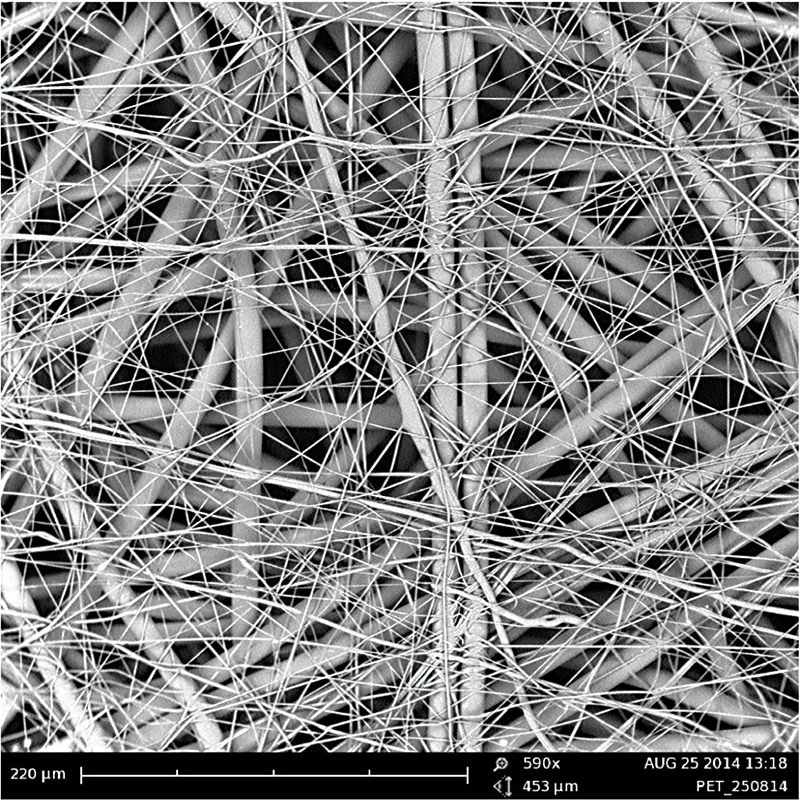

The NanoFiber self-cleaning filter for residential pools is not a cartridge filter per se. The key is the filter material that makes up the filter. This material offers a higher filtration quality due to its network of nanofibres compared to other filters. In addition, its easy handling makes the Nanofiber filter a very good purchase choice.
Innovation in cartridge filters
- Easy to use
- Reliable
- Lower water consumption
- Higher filtered water quality
- Compact
- Easy to clean
- Slow fouling without fouling
- Compatible with existing or existing filtering and pumping equipment
- Replacement cartridges
A comparative filtration effectiveness report conducted through physicochemical testing by an external laboratory confirms that:
1) The overall average pore size is superior to other cartridge filtration systems.
2) NanoFiber filter filtration is looser and more scaled, preventing early fouling.
The NanoFiber filter offers less selective but more efficient filtration.
Data Sheet
- Recommended pool size
- 80-120 m3
- For pumps
- 1 HP - 1.5 HP
- Material
- Injected plastic
- Type of filtration
- Cartridge
