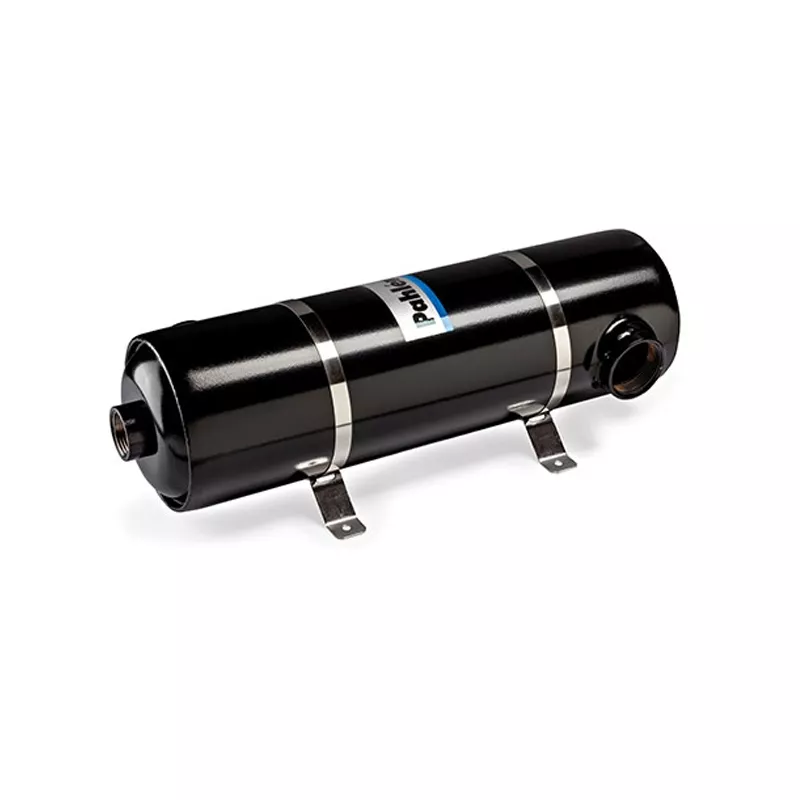

Pahlén Maxi-Flo MF135 heat exchanger 40 KW
ref: 08CAHEW0040
sku: 11365
- Water-water exchanger.
- Power: 40 KW.
- Manufacturer: Pahlén.
- Recommended for use in swimming pools and other installations where there is a high heat demand with a low pressure drop.
€489.00
IVA included
Free shipping
Technical characteristics
TECHNICAL CHARACTERISTICS OF THE PAHLÉN HEAT EXCHANGER
- Light and compact design.
- Made of AISI-316 stainless steel, which protects against corrosion caused by pool water treatment products.
- Includes stainless steel fixings.
- Primary working pressure Drop H (m): 0.05 bar.
- Secondary working pressure Drop H (m): 0.8 bar.
- Capacity with temperature difference of 60º-70º.
- Maximum working temperature: 110 ºC.

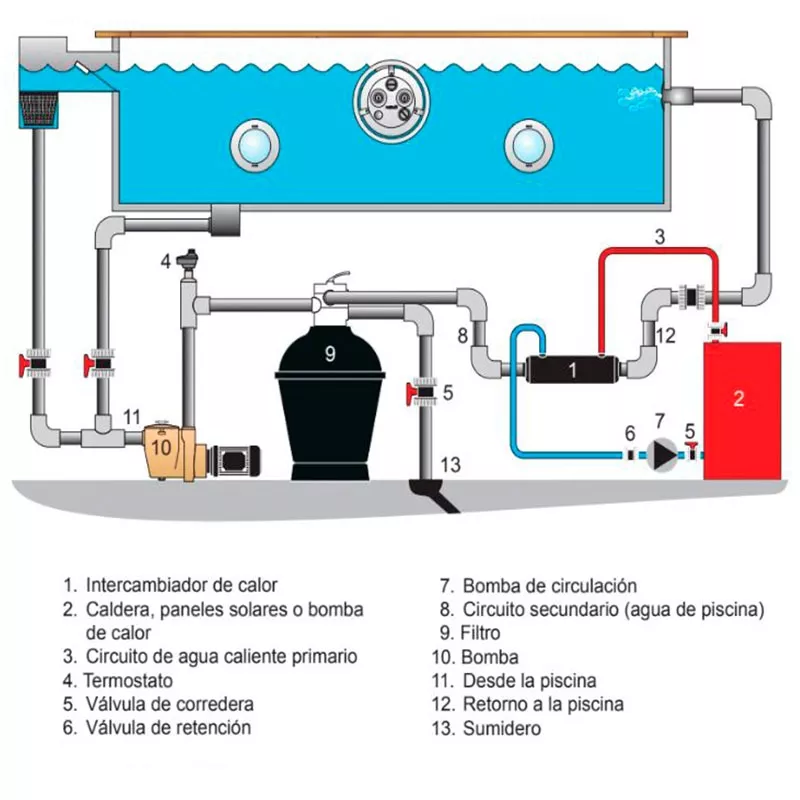

INSTALLATION
All models can be installed with heaters, heat pumps, solar panels or other heat sources.
Water-water exchanger made of AISI-316 stainless steel for maximum heat transfer efficiency.
Ideal for installations where there is a high heat demand with a low pressure drop:
- Solar collectors.
- Boilers.
- Swimming pools.
 |
|
|
|
|
| Maxi-Flo 40 | Maxi-Flo 60 | Maxi-Flo 75 | Maxi-Flo 120 | |
| Technical Characteristics | ||||
| KW | 40 | 60 | 75 | 120 |
| kBtu/h | 135 | 200 | 260 | 400 |
| Primary L/min | 25 | 30 | 35 | 50 |
| Primary Press drop H (m) | 0.05 | 0.15 | 0.4 | 0.5 |
| Secon L/Min | 200 | 250 | 300 | 360 |
| Secon. Press drop H (m) | 0.8 | 1.4 | 1.0 | 1.5 |
Data Sheet
- Power input (at 60ºC)
- 40 KW
- Plates / resistors
- Stainless steel. AISI-316
