RPG 500 surface hut Hayward 0,8 HP
ref: 06FI06160005
sku: 6160005

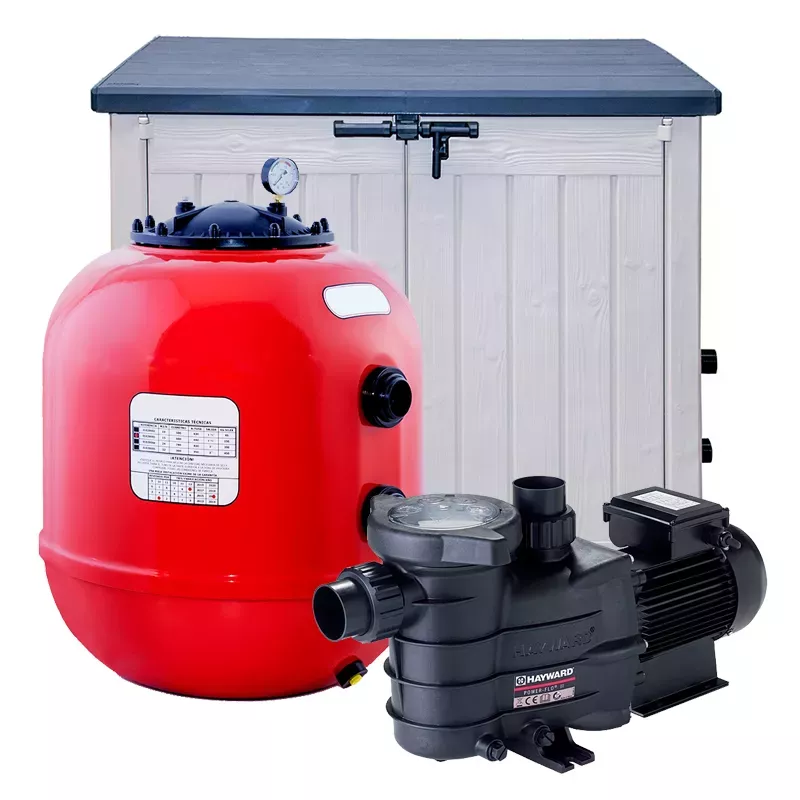

- Surface mounted housing
- Including:
- Filter RPG D.500
- Pump Hayward Powerline 0,8 HP
- PVC fittings
- Ball valves - Hinged cover with safety locking lid with hydraulic spring and double front door
- Ideal for pools up to 50 m3
- Ready to connect to pipes
- Electrical panel not included
The position of the elements may vary from the image.
€999.00
IVA included
Free shipping
Technical characteristics
what are the contents of the shed?
- RPG 500 filter.
- Pump Hayward Powerline 0.8 HP.

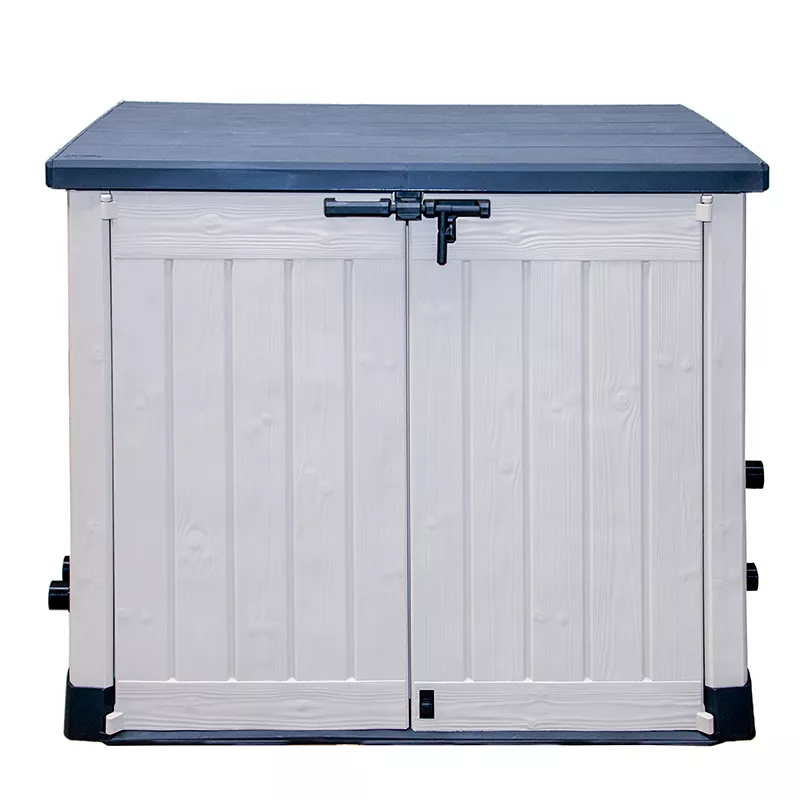

- Elevated casingdesigned for outdoor installation. Lid with reinforced rim, safety lock and hydraulic spring. Double door and hinged lid imitating wood with easy opening and metal hinges for better access.
- PVC accessories.
- Ball valves.
RPG D.500 pool filter with selector valve
- Polyester and fibreglass filter.
- Round plastic base.
- 6-way side selector valve 1" 1/2.
- Pressure gauge.
- Manual and automatic air venting.
- Recommended flow rate: 10 m3/h.
- Connections: 1" 1/2.
- Flint sand load: 85 kg.
- no. of nozzles: 8.
- Dimensions: 500 x 680 mm.
Pump Hayward Powerline 0,8 CV
- Single-phase 220 V.
- Power: 0,8 CV.
Data Sheet
- Recommended pool size
- 20-50 m3
- Filter diameter
- 500 mm
- Empty Booth
- No
- Type of hut
- Surface
- Electrical Cabinet
- No
- Power (hp)
- 0.75 HP
