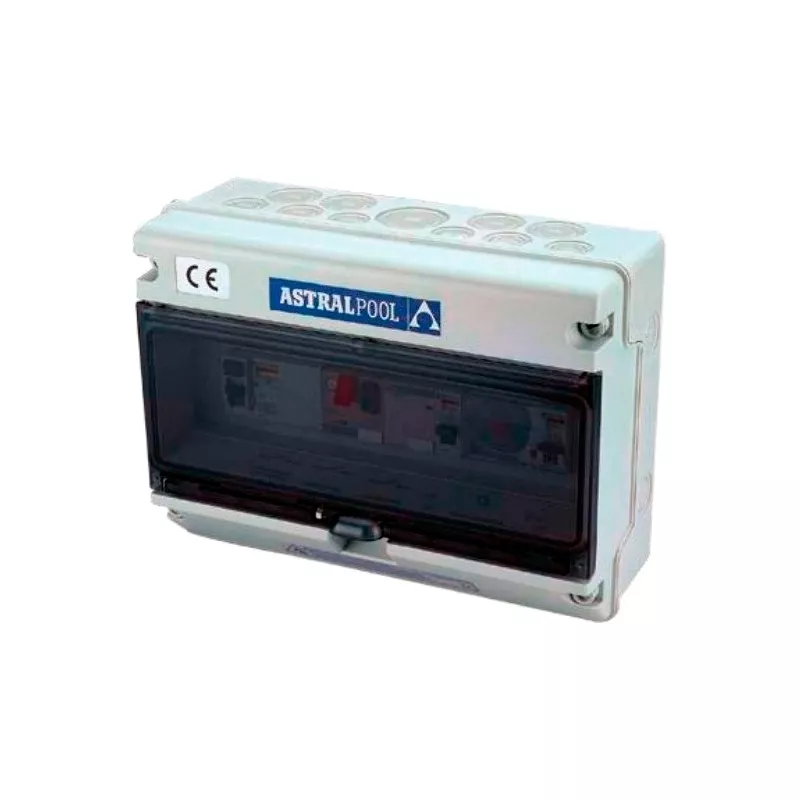

Swimming pool control panel for 1 pump 3/4 - 1 hp + differential Three phase
ref: 04AR25729
ean13: 8420382637373
sku: 25729
- Control panel for filtration pump from 3/4 to 1 hp Three-phase
- Consisting of: differential switch, automatic/stop/manual switch, circuit breaker, timer, contactor and magneto-thermal switch for spotlight
- TRANSFORMER NOT INCLUDED
- Easy and simple to install and program.
- Difference in protection in three-phase version
€390.00
IVA included
Free shipping
Technical characteristics
what type of pool is this panel suitable for?
- For swimming pools with a pump from 3/4 to 1 hp Three phase
- Differential to protect against shunts
- Allows you to set it in manual, off or automatic mode
- Clock timer
- Switch for spotlights
- TRANSFORMER NOT INCLUDED
- Differential protection in three-phase version.
Characteristics 25729 panel:
IP-65 protection. Transparent cover with lock and key.
24H control clock with programming steps every ¼h. Connection for remote control of the pump (run/stop,...) for auxiliary equipment (cold detector, level control...). All products are delivered with:
- wiring diagram
- Connection diagram
- installation instructions
- CE conformity certificate
- cable gland for each cable entry and exit
- Screws and plugs (4) for wall mounting.
- Differential,
- Circuit breaker protection
- Contactor,
- 24 h. programming clock. 3 positions:
- Auto / 0 / manual.
- Protected and controlled output for underwater light.
Informative note:
Depending on the nominal current of the filter pump, the type of cabinet must be selected
Data Sheet
- Type of current
- Three-phase
- For pumps
- 0.75 HP - 1 HP
- Lighting control
- Yes
- Transformer
- Without transformer
