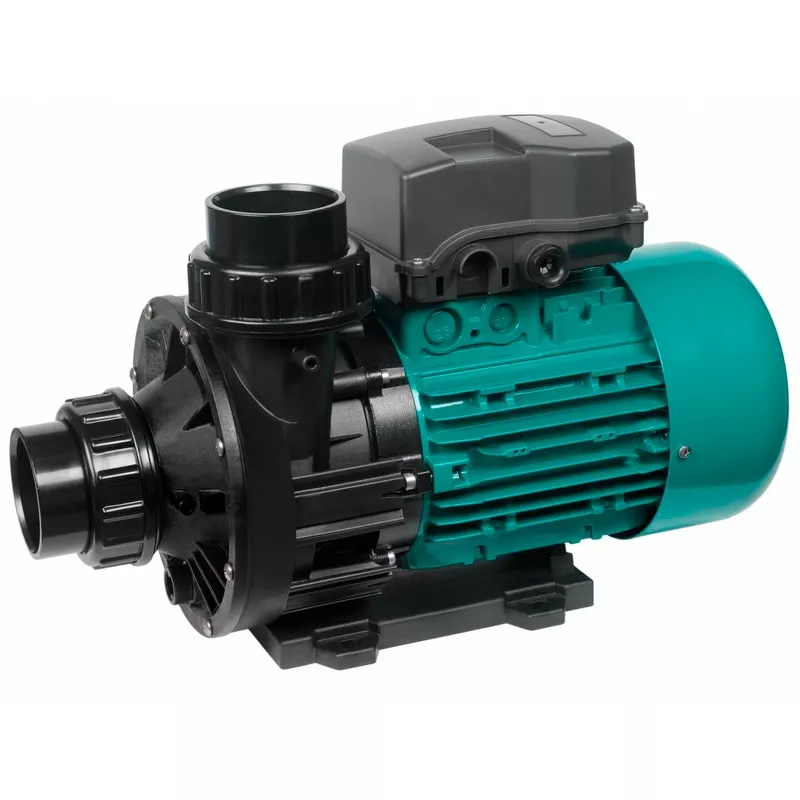

Pump Espa Wiper3 150T
ref: 05BO203176
ean13: 8421535149774
sku: 203176
- Single-stage centrifugal pump
- Power 1.5 hp
- Three-phase
- Central suction,
- Ideal for water recirculation in whirlpools, spas and removable pools.
- Single-phase versions with built-in thermal protector.
- Condenser P2 of 10000 hours.
- AISI 431 stainless steel motor shaft
€357.00
IVA included
Free shipping
Technical characteristics
Pump Espa Wiper 3 150 Three-phase:
1.5 hp THREE-PHASE pump, ideal for recirculating water in spas, whirlpools and removable pools.
Equipment
- Foot / Base: Included
- Fittings: Glued
- Drain plug: No
- Check valve: No
- Electrical characteristics
- Electrical insulation: Class F
- Service factor: S1
- Degree of protection: IP55
- Reset: Automatic
- Motor type: Asynchronous
- Motor rotation type: Constant speed
- Type of service: Continuous
- Constructive characteristics
- Intake diameter: D63
- Discharge diameter: D63
- Sealing by means of: Mechanical seal
- Stages: Single-stage centrifugal pump
- Motor cooling: Fan
- Suction connection type: Push-in fitting
- Type of connection on discharge side: Push-in fitting
- Impeller type: Closed
Materials
- Mechanical seal: Graphite-Steatite
- Suction casing: PPO + 30% GF
- Discharge casing: PP + 30% GF
- Pump shaft: AISI 431
- Motor shaft: Stainless steel AISI 431
- Motor casing: Aluminium
- Impeller(s): PPO + 30% GF
- Seals: NBR
- Base-foot material: PPO + 30% GF
- Seal base material: PP + 30% GF
- Screws: Stainless steel AISI 304
Limits of use
- Maximum number of motor starts (starts/minute): 0,5
- Maximum working pressure (bar): 6
- Temperature of the liquid (ºC): Min: 4 - Max: 35
Data Sheet
- Type of current
- Three-phase
- Type of use
- Continuous Use
- Pump type
- For Water
- Power (hp)
- 1.5 HP
