Pump Espa Wiper 0 70M
ref: 05BO203171
ean13: 8421535149729
sku: 215080
- Single-stage centrifugal pump
- Power 0,5 HP
- Central suction,
- Ideal for water recirculation in whirlpools, spas and removable pools.
- Single-phase versions with built-in thermal protector.
- Condenser P2 of 10000 hours.
- AISI 431 stainless steel motor shaft
€193.00
IVA included
Free shipping
Technical characteristics
Pump Espa Wiper 0 70 M
Single-phase 0.5 hp pump, ideal for recirculating water in spas, whirlpools and removable pools.
Equipment
- Foot / Base: Incorporated in motor casing
- Fittings: Threaded
- Drain plug: No
- Check valve: No
Electrical characteristics
- Electrical insulation: Class F
- Service factor: S1
- Degree of protection: IP55
- Reset: Automatic
- Motor type: Asynchronous
- Motor rotation type: Constant speed
- Type of service: Continuous

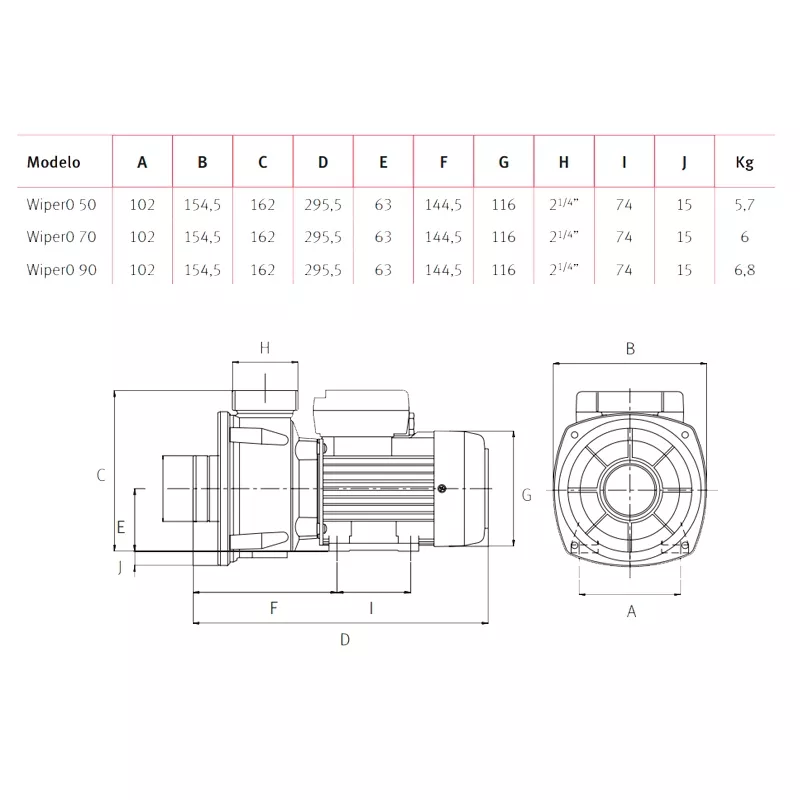

Constructive characteristics
- Intake diameter: D50
- Discharge diameter: D50
- Sealing by: Mechanical seal
- Stages: Single-stage centrifugal pump
- Motor cooling: Fan
- Suction connection type: Push-in fitting
- Type of connection on discharge side: Push-in fitting
- Impeller type: Closed
Materials
- Mechanical seal: Graphite-Steatite
- Suction casing: PP + 30% GF
- Discharge casing: PP + 30% GF
- Pump shaft: AISI 431
- Motor shaft: Stainless steel AISI 431
- Motor casing: Aluminium
- Impeller(s): PPO + 30% GF
- Seals: NBR
- Base-foot material: Aluminium
- Stamp holder: PP + 30% GF
- Screws: Stainless steel AISI 304
Limits of use
- Maximum number of motor starts (starts/minute): 0,5
- Maximum working pressure (bar): 6
- Liquid temperature (ºC): Min: 4 - Max: 35
| Wiper0 50M | Wiper0 70M | Wiper0 90M | |
| Electrical data | |||
| Type of current | Single phase | Single-phase | Single-phase |
| Current | 2,30 A | 2,90 A | 3,70 A |

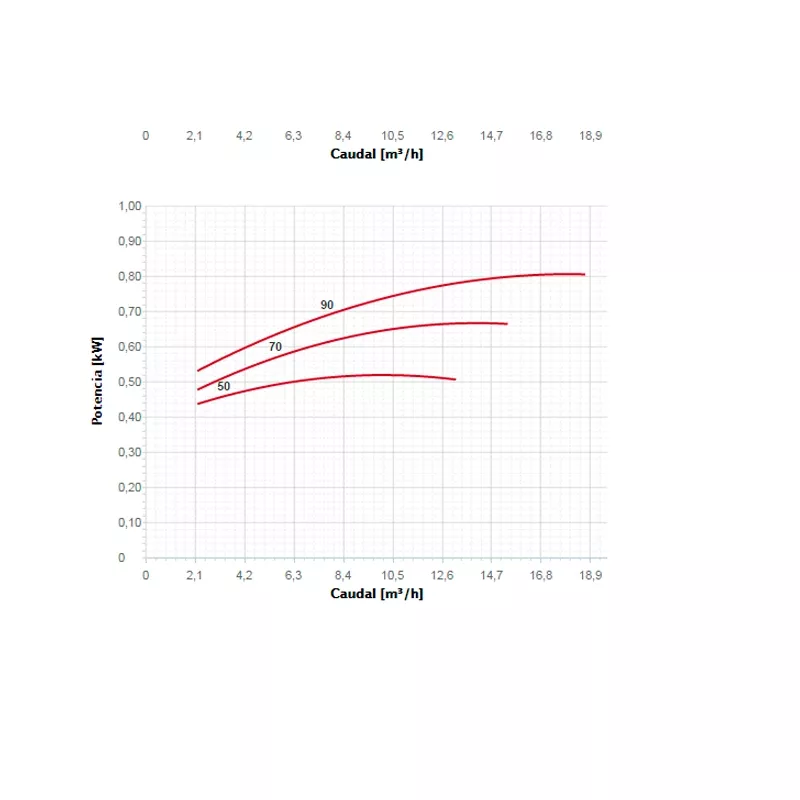

| Power absorbed | 0,50 KW | 0,65 KW | 0,85 KW |
| Motor power | 0.24 KW / 0.32 HP | 0,37 KW / 0,50 HP | 0,74 KW / 0,99 HP |
| Capacitor capacity | 12 µF - 450 V | 12 µF - 450 V | 12 µF - 450 V |
| Wiper0 50M | Wiper0 70M | Wiper0 90M | |

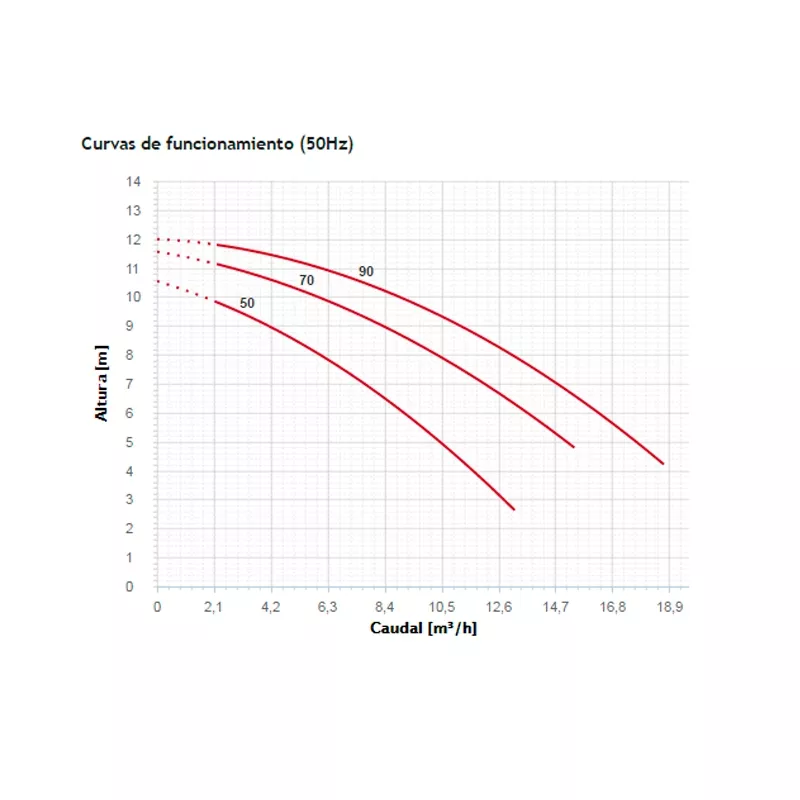

| Hydraulic data | |||
| Flow rate (m3/h) | Head (m) | ||
| 0,0 | 10,5 | 11,6 | 12,0 |
| 2,2 | 9,8 | 11,1 | 11,8 |
| 4,4 | 8,9 | 10,5 | 11,4 |
| 6,6 | 7,7 | 9,7 | 10,8 |
| 8,8 | 6,2 | 8,8 | 10,1 |
| 11,0 | 4,5 | 7,6 | 9,1 |
| 13,2 | 2,6 | 6,3 | 7,9 |
| 15,4 | - | 4,8 | 6,6 |
| 17,6 | - | - | 5,1 |
Data Sheet
- Type of use
- Continuous Use
