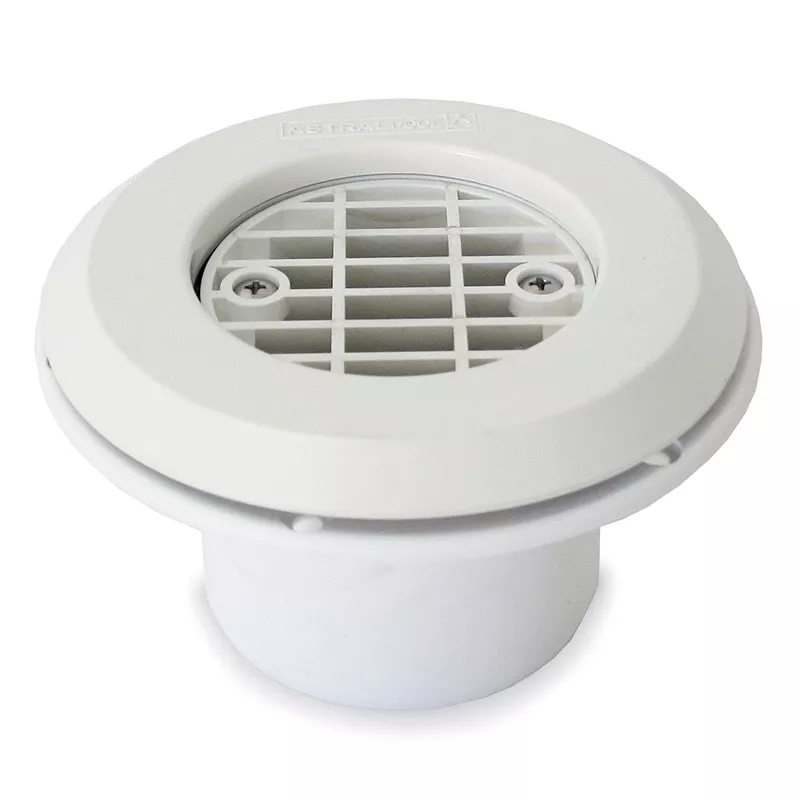

High-flow suction / delivery nozzle for prefabricated swimming pool
ref: 03BO41521
ean13: 8432611139411
sku: 41521
- High flow rate suction-pressure nozzle for prefabricated swimming pools
- Cod. 41521
- Connection for Ø75 or Ø90 pipe
- PVC body, ABS grille, PA flange and AISI 304 screws
- The grille holes do not exceed 8 mm according to EN 13451-1 standard.
- Maximum flow rate flow 30m3/h. suction 5m3/h. in accordance with standard EN 13451-1
- Jet inclined at 30º adjustable 360º.
€61.90
IVA included
Technical characteristics
Nozzle Astralpool 41521
Discharge nozzle for high flow rates, can also be used as suction nozzle.
- PVC body,
- ABS grille,
- PA flange and AISI 304 screws.
- The grille holes do not exceed 8 mm according to EN 13451-1 standard.
- Maximum supply flow 30m3/h for a maximum flow velocity of 4 m/s according to EN 13451-1.
- Maximum suction flow rate 5m3/h for a maximum flow velocity of 0.5 m/s according to EN 13451-1.
Data Sheet
- Coating
- Liner/ Polyester
- Manufactured in
- Titanium
- Type of accessory
- Discharge nozzle
