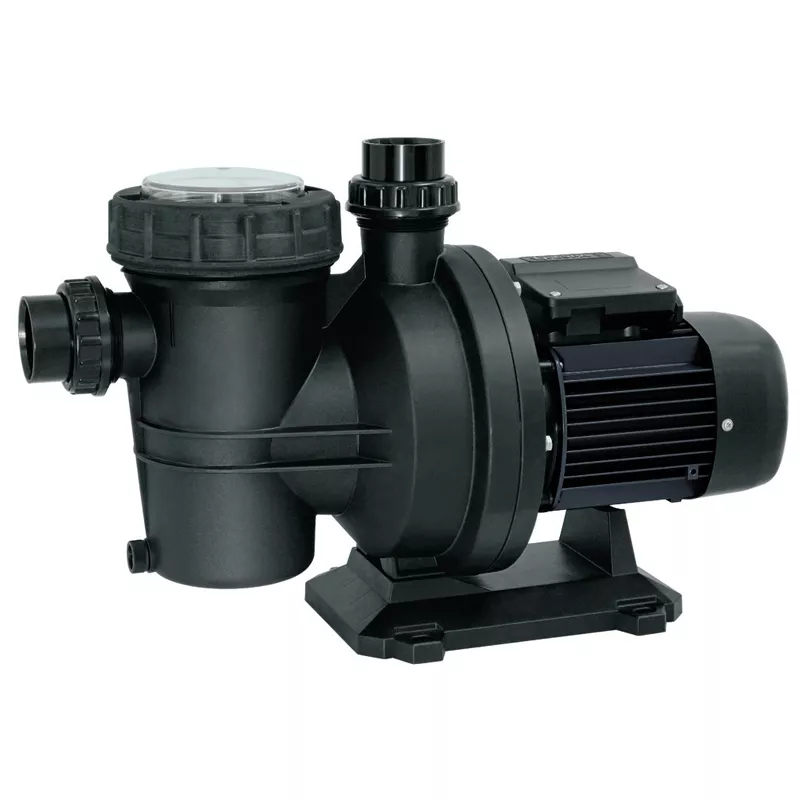

Jardino Pool Nox 100 18M single-phase swimming pool pump
ref: 05BO203185
ean13: 8421535149033
sku: 203185
- Swimming pool pump Jardino Pool Nox 100 18M
- Power: 1 HP single-phase
- Manufacturer: ESPA
- Code: 203185
- ULTRASILENT
- Pre-filter with transparent cover and anti-blockage seal.
- Supplied with suction and delivery fittings to be glued Ø50 mm.
- Compatible with chlorinated and salt water (up to 7 gr/l)
- Compact design
€229.00
IVA included
€237.00
-€8.00
Free shipping

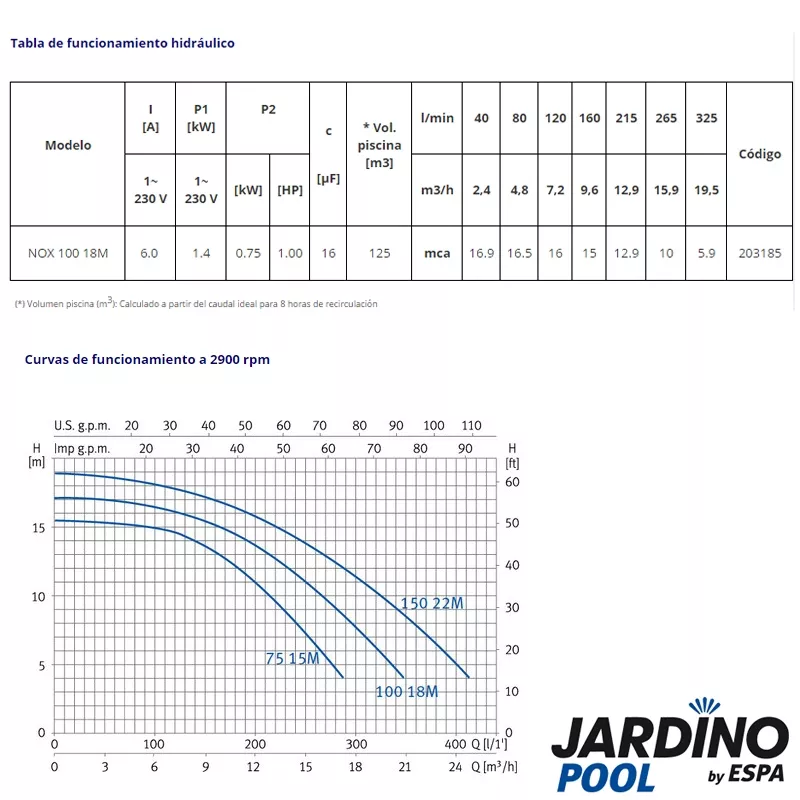

Technical characteristics
Swimming pool pump ESPA Jardino Pool Nox 100 18M
Power: 1 hp single-phase
Ultra-quiet
Self-priming up to 4 metres
Warranty: 3 years
NOTE: This model replaces the ESPA SILEN 100M pump. Both share the same dimensions, so they are interchangeable without the need to make any modifications to the installation.
Main features
MATERIALS
- Motor housing: aluminium
- Mechanical seal: alumina-graphite
- Intake body: technopolymer
- Enclosing body: technopolymer
- Discharge body: technopolymer
- Diffuser: technopolymer
- Drive shaft: stainless steel AISI-431
- Impeller: technopolymer
- Seals: NBR/EPDM
- Pre-filter: technopolymer
EQUIPMENT INCLUDED
- Suction and delivery connectors
- Two metres of cable
Compatible with chlorinated water and salt water (up to 7 grams/litre).
CONSTRUCTIVE CHARACTERISTICS
- Intake diameter: 50 mm
- Discharge diameter: 50 mm
- Sealing by mechanical seal
- Suction connection type: push-in fitting
- Supply connection type: push-in fitting
ELECTRICAL CHARACTERISTICS
- Electrical insulation: Class F
- Service factor: S1
- Degree of protection: IPX5
- Reset: automatic
- Motor type: asynchronous
OPERATING LIMITS
- Maximum suction: 4 metres
- Maximum liquid temperature: 40ºC
Commissioning
PRELIMINARY CHECKS
1. Check that the mains voltage and frequency correspond to the voltage and frequency indicated on the rating plate.
2. Make sure that the pump shaft rotates freely.
3. Fill the pump body completely with water by unscrewing the pre-filter cover. Make sure that there are no leaking seals or fittings.
4. Put the pre-filter cover back in place and screw it on correctly.
THE PUMP MUST NEVER RUN DRY.
COMMISSIONING
1. Open all shut-off valves in the pipelines, both suction and discharge.
2. Turn on the supply switch. It may take a few seconds for the water to run through the entire length of pipe.
3. Check the direction of rotation of the motor, this should be clockwise as seen from the fan. On three-phase pumps there is a possibility that the motor will turn in the reverse direction, in which case the flow rate will be less than expected. If this happens, invert two phases of the power supply in the connection board.
4. Check that the absorbed current is equal to or less than the maximum current indicated on the nameplate. Readjust the thermal relay if necessary.
5. If the motor does not work or does not draw water, try to find out the anomaly by means of the list of the most common possible faults and their possible solutions provided on the following pages.
MAINTENANCE
The swimming pool pumps do not require any specific maintenance, but it is recommended to clean the pump filter periodically and to empty the pump body during periods of low temperatures through the drain plug.
If inactivity persists, it is advisable to empty the pump of water, clean it and replace the filter cover with vaseline on the rubber seal, making sure that the room where it will be stored remains dry and ventilated.
In the event of a fault, the user must not tamper with the pump. Contact an authorised service centre.

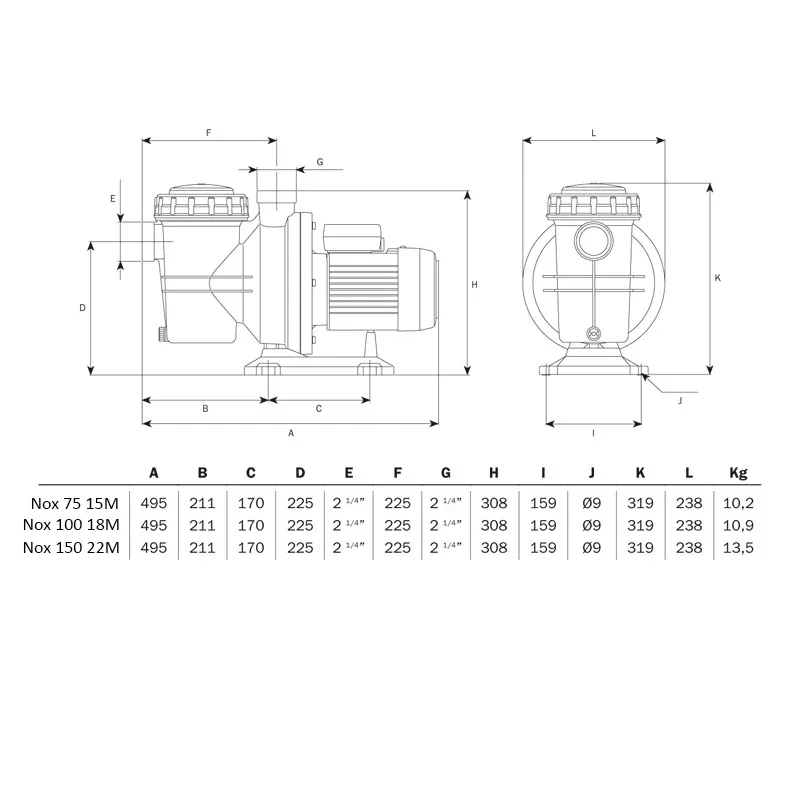

Dimensions and weight
Guarantee
The warranty period is 3 years from the date of purchase invoice of the product.
Under the terms of the standard warranty, all components subject to wear and tear of the pump during normal use are excluded, such as:
- Mechanical seal
- Seals
- Condenser
- Bearings
- Pre-filter basket
In case of failure, do not handle the pump and contact an Authorised Service Centre.
ESPA Service Locator:
https://www.espa.com/es/asistencia/recambios-y-reparaciones/
Data Sheet
- Type of current
- Single-phase 220V
- For Filters
- 600mm-650mm
- Brand
- Espa
- Variable Speed
- No
- Power (hp)
- 1 CV
