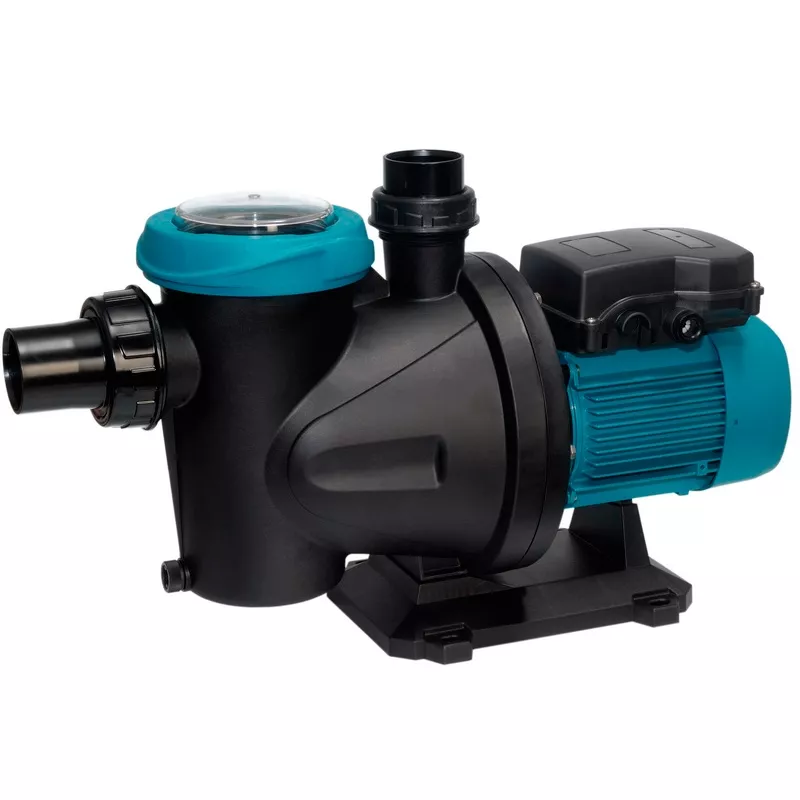

Swimming pool pump Espa Silen S 100 18 Three-phase

Description Swimming pool pump Espa Silen S 100 18

• Swimming pool pump Espa Silen S 100 18, 1 HP THREE-PHASE
• Very compact single-stage centrifugal pumps, with great suction power and designed for recirculating water in removable or in-ground swimming pool systems.
• Supplied with suction and delivery fittings for connection to filtration systems with 50 mm diameter pipes.
• Completely silent and continuous service, with built-in thermal protector, drain plug, pre-filter with transparent cover and anti-blockage seal.
• Improved hydraulic performance.

Materials, Motor and Equipment

• Pump body, pump foot, impeller, seal support and diffuser in technopolymer.
• Motor shaft in stainless steel AISI 431.
• Special mechanical seal in AISI 316.
• Aluminium motor casing. Seals in NBR.
• Bearings up to 160°C
• IP 55 protection, externally ventilated.
• Single-phase 1 x 230 V, with built-in thermo-amperometric protector and corresponding condenser.
• Condenser P2 10.000 hours.
• Aspiration: fitting for socketing Ø 63 mm and adaptor fitting for socketing Ø 63-50 mm.
• Supply: Ø 50 mm glue fitting.
