Swimming pool filter M3000 480 TOP
ref: 06FI29574
ean13: 2000000295749
sku: 29574
- Swimming pool filter series M3000
- Order No. 29574
- Diameter 480 mm
- Made of injected plastic

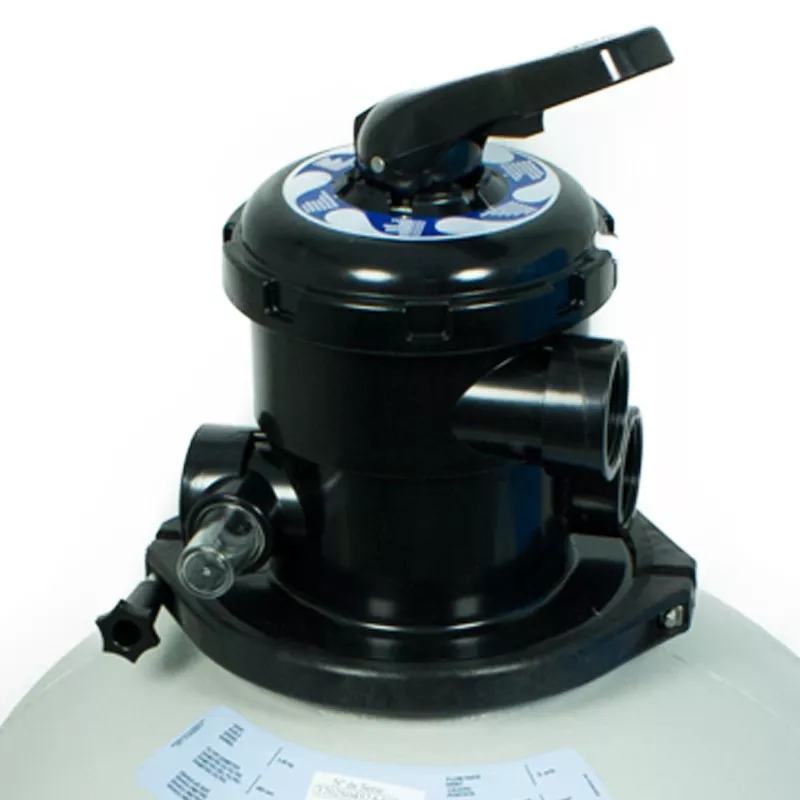

- INCLUDES 6-WAY TOP SELECTOR VALVE OF 1" 1/2.
- Pressure gauge located on the valve itself
€269.00
IVA included
Free shipping
Technical characteristics
Swimming pool filter M3000 480 TOP
Ideal for pools up to 50 m3 .
Features Filter M3000 480 TOP
- Filter made of one-piece plastic material.
- Equipped with integrated pressure gauge and air-water drain.
- Light grey colour.
- Selector valve included.
- Maximum flow rate: 9000 lts/hour.
- Silex load: 85 kg.
- Zelbrite load: 64 kg.
- Maximum working pressure: 2,5 Kg/cm2.
- Filtration speed: 50 m3/h/m2.
Dimensions of pool filter M3000 TOP
 |
|
|
|
| M3000 TOP 430 | M3000 TOP 480 | M3000 TOP 560 | |
| Diameter (mm) | 430 | 480 | 560 |
| H (mm) | 935 | 975 | 1050 |
| H (mm) | 346 | 398 | 398 |
| M (mm) | 783 | 832 | 898 |
| N (mm) | 703 | 752 | 818 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 |
| Flow rate (m3/h) | 7 | 9 | 12 |
| Sand load (kg) | 70 | 85 | 135 |
| Net weight (kg) | 12,5 | 15 | 18 |
| WARRANTY | 2 years | 2 years | 2 years |
Data Sheet
- Recommended pool size
- 20-50 m3
- Filter diameter
- 480 mm
- For pumps
- 0.5 HP
- Valve
- Upper 1 1/2
- Sand load (kg)
- 50 - 100 kg
- Material
- Injected plastic
- Type of filtration
- Sand
