Pool filter M3000 560 lateral
ref: 06FI29578
ean13: 2000000295787
sku: 29578
- Swimming pool filter M3000 series
- Code 29578
- Diameter 560 mm
- Made of injected plastic
- INCLUDES 6 WAY SELECTOR VALVE OF 1" 1/2.

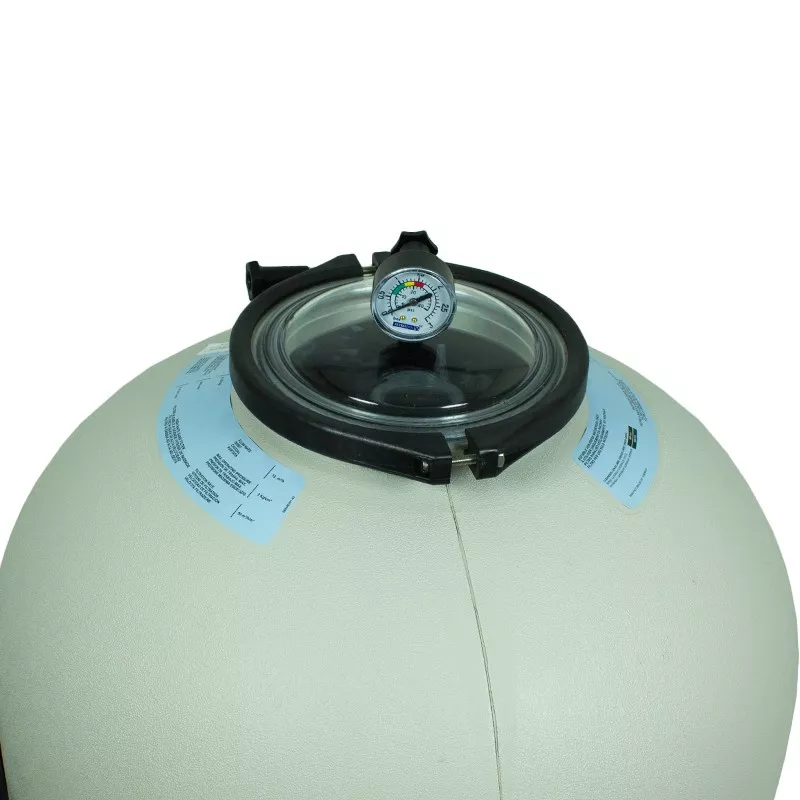

- Manometer on the upper part
- Transparent cover with quick release fastener with strap
€329.00
IVA included
€385.00
-€56.00
Free shipping
Technical characteristics
Swimming pool filter M3000 560 Lateral
For pools up to 60 m3
Features M3000 560 Lateral filter
- Equipped with integrated pressure gauge and air-water drain.
- Light grey colour.
- Selector valve included.
- Filters made of one-piece plastic material.
- Maximum flow rate : 12000 lts/hour.
- Silex load: 125 kg.
- Zelbrite load: 94 kg.
- Maximum working pressure: 2,5 Kg/cm2.
- Filtration speed: 50 m3/h/m2.
Dimensions of pool filter M3000 Lateral
 |
|
|
|
| M3000 LATERAL 430 | M3000 LATERAL 480 | M3000 LATERAL 560 | |
| Diameter (mm) | 430 | 480 | 560 |
| H (mm) | 690 | 729 | 816 |
| H (mm) | 346 | 398 | 398 |
| N (mm) | 272 | 295 | 345 |
| M (mm) | 397 | 420 | 470 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 |
| Flow rate (m3/h) | 7 | 9 | 12 |
| Sand load (kg) | 70 | 80 | 135 |
| Net weight (kg) | 10 | 11 | 14 |
| WARRANTY | 2 years | 2 years | 2 years |
Data Sheet
- Recommended pool size
- 50-80 m3
- Filter diameter
- 560 mm
- For pumps
- 0.75 HP - 1 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 100 - 150 kg
- Material
- Injected plastic
- Type of filtration
- Sand
