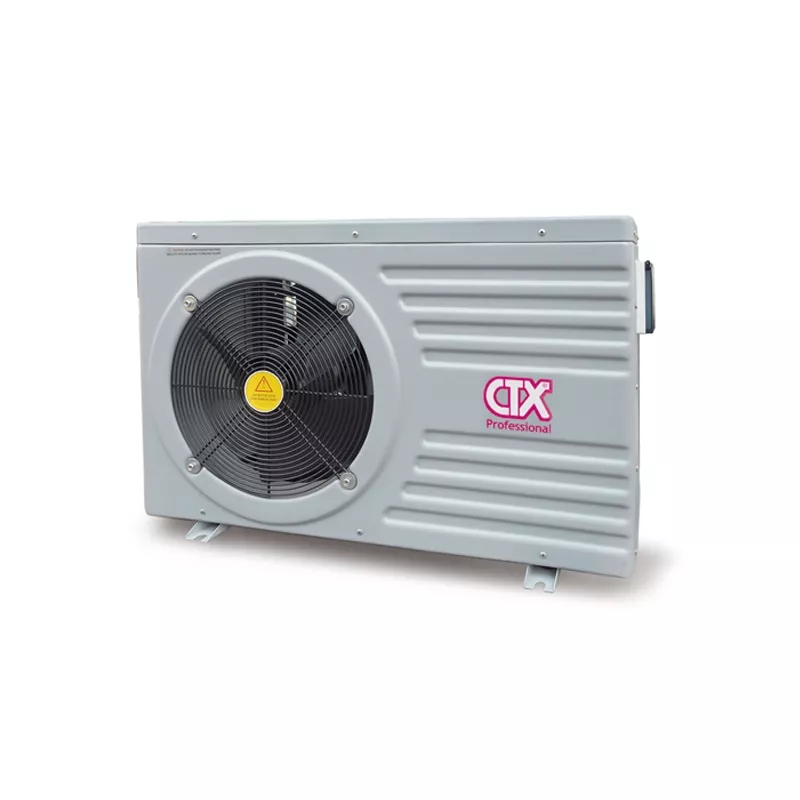

Certikin StarLine 25 three-phase pool heat pump

Description Heat Pump Certikin StarLine 25 three-phase heat pump

Environmentally friendly, a Certikin heat pump is synonymous with maximum technology.
And with savings, too. It is the most economical solution for extending the swimming season in an outdoor pool. The equipment uses the heat energy from the air and, with the help of a refrigeration circuit, transfers it to the pool water, thus obtaining up to 5kW of heat for each kW consumed. With Certikin, we guarantee that the pool water is kept at 28ºC throughout the season.

Certikin StarLine 25 three-phase air-to-water heat pumps

The most effective and economical system for maintaining the water temperature for a continuous period of time.
Operating costs 3 to 4 times better than electric boilers and heat exchangers.
Investment can be amortised in a maximum of 2 years.

Certikin StarLine 25 three-phase model

Air/water heat pump for heating swimming pools in the most economical way.
Private pools up to 80 m3. This technology makes it possible to extend the swimming season to enjoy the pool for more months of the year. Its capacity to extract energy from the air allows up to 5 times the energy it consumes, obtaining low consumption and therefore more respectful
with the environment.
The heat pump with the best quality-price ratio on the market.
StarLine is specially designed for the climates it will be used in, ensuring high energy gains for low temperatures.

• The higher the COP, the higher the energy gain and the lower the energy costs.
• StarLine pumps have oversized components such as: A1 Titanium Double Spiral Evaporator and Exchanger.
• Electrical resistance in lower tray to prevent ice formation at the base of the unit.
• Reverse Cycle Defrosting
• Refrigerant R410A
• Minimum working air temperature 0ºC
• Heat and cold, regulated to maintain constant temperature
• ABS housing
• Digital control, watertight electrical panel
• High and low pressure flow switch
• Winter cover included

Power calculations carried out under the following conditions: Air 15ºC, 70% humidity, water at 26ºC

MODEL		STARLine6	STARLine10	STARLine13	STARLine15	STARLine20	STARLine25	STARLine35
Technical characteristics
24ºC T Air 26ºC T Water	Power	4.8 kW	8.2 kW	11.6 kW	17.5 kW	23.2 kW	22.5 kW	33.1 kW
	COP	5	5.1	5.4	5.1	6.2	5.4	5.5
15ºC T Air 26ºC T Water	Power	3.6 kW	6.2 kW	8.7 kW	12.9 kW	17.9 kW	16.9 kW	24.8 kW
	COP	3.8	3.8	4.1	3.8	4.8	4.1	4.1
5ºC T Air 26ºC T Water	Power	2.5 kW	4.2 kW	5.6 kW	9.1 kW	9.7 kW	10.8 kW	15.6 kW
	COP	2.7	2.7	2.9	2.6	3.6	2.9	2.9
Input		1 kW	1.1 kW	2.1 kW	3.5 kW	3.7 kW	4.2 kW	6 kW
Absorbed current		4.5 A	7.3 A	9.5 A	15.9 A	16.8 A	7.1 A	10.1 A
Voltage		220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	380-400 V	380-400 V
Fuse rating		10 A	13 A	20 A	25 A	25 A	3x16 A	3x20 A
Power supply cable	Max 20 m Max 50 m	2x2.5 mm2 2x4 mm2	2x2.5 mm2 2x2.5 mm2 2x4 mm2	2x4 mm2 2x6 mm2 2x6 mm2	2x6 mm2 2x6 mm2 2x6 mm2	2x6 mm2 2x6 mm2 2x6 mm2	3x4 mm2 3x6 mm2 3x6 mm2	3x6 mm2 3x6 mm2 3x6 mm2 3x6 mm2 3x6 mm2 3x6 mm2 3x6 mm2
Control		LED/LCD	LED/LCD	LED/LCD	LED/LCD	LED/LCD	LED/LCD	LED/LCD
Number of fans		1	1	1	1	1	1	2
Noise level		50 dB	53 dB	54 dB	56 dB	56 dB	56 dB	57 dB
Water connection		1"1/2	1"1/2	1"1/2	1"1/2	1"1/2	1"1/2	1"1/2
Water flow min		1.3 m3/h	2.2 m3/h	3.6 m3/h	4.9 m3/h	6 m3/h	6 m3/h	13 m3/h
Indicative volume (pool with cover)	m3 Max	12	19	30	45	60	56	80
	m3 Min	5	15	19	27	37	35	52
Dimensions	LxWxH	778x293x511mm	938x360x581mm	1015x370x621mm	1080x416x708mm	1078x416x958mm	1078x416x958mm	1078x416x1258mm
Weight	Net/Gross	33/38 Kg	48/56 Kg	60/67 Kg	91/104 kg	99/114 Kg	99/114 Kg	120/136 Kg
