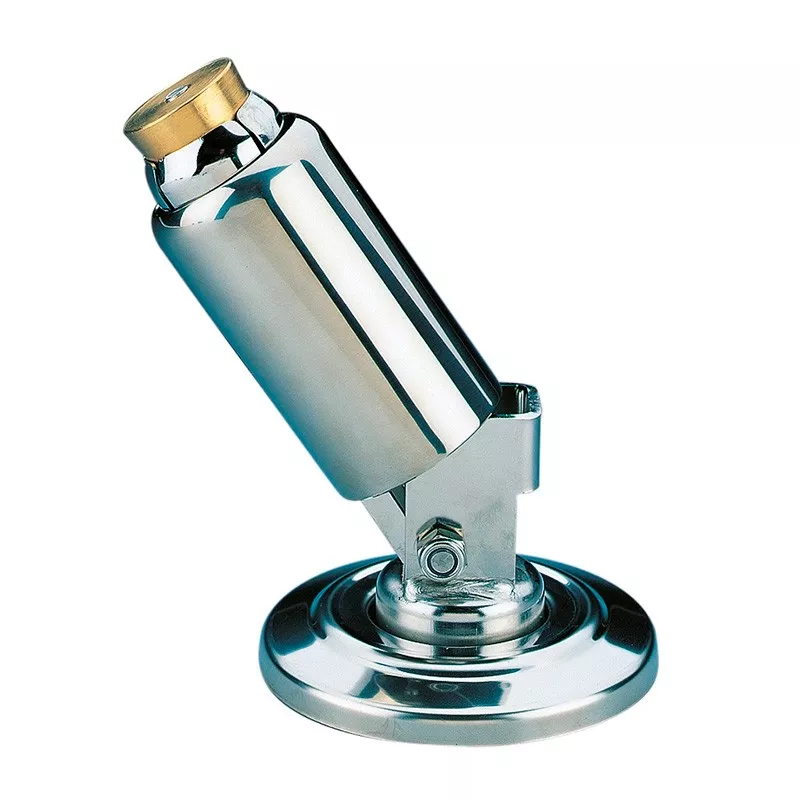

Articulated swimming pool ladder anchorage with plate

Articulated swimming pool ladder anchoring with plate

In the model with plate, we will proceed to fix it to the ground using the fixing screws supplied for this purpose. For the model with recessed anchorage, we will have to insert the articulated anchorage and proceed to fix it.

Insert the anchor trim and the anchor cover into the handrail, and then insert the articulated anchor into the handrail as far as possible. In the folded ladder position, fix the articulated anchor to the ladder by tightening the DIN-912 M8 screw (4) until the strength of the fixation is checked.

The tilting bolt should be tightened with its corresponding nut to give greater rigidity to the movement of the anchor
