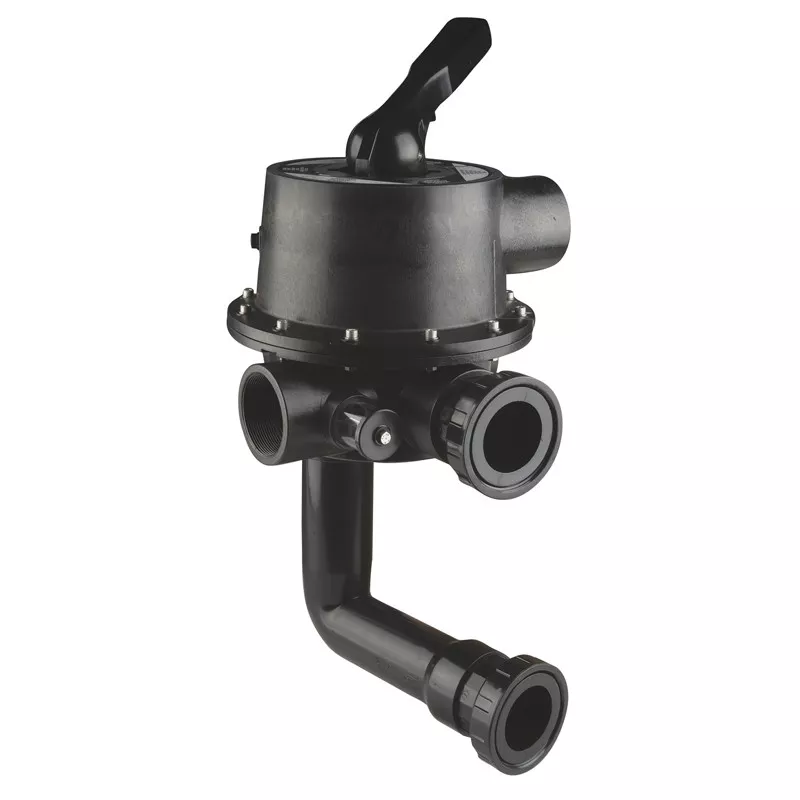

Magnum 2 1/2" selector valve with linkages

Selector valve Astralpool Magnum 2" 1/2

The selector valve is considered an indispensable component in sand filters for the purification of swimming pools. The handle is used to select between the different functions in a hydraulic circuit: filtering, emptying, closing, washing, recirculation and rinsing of the filter.

Specially designed to withstand high working pressures and their coupling to large filters that require special connections. Choose from the models offered in the range, 2 ½", 3" and 4" selector valves.

Features Valve 24837

• 2 ½" and 3" models: ABS and fibreglass body and cover; PPO manifold; EPDM seals and stainless steel metal parts.
• 4" model with polyurethane cover, handle and manifold (BSP thread).
• 6-way manual selector valves.
• BSP or NPT threads for 2 ½" and 3" models.
• Raised handle positioners to avoid dirt accumulation (3" and 4" models).
• Improved shaft sealing system.
• Low load losses.
• Maximum working pressure: 3,5 kg/cm2
