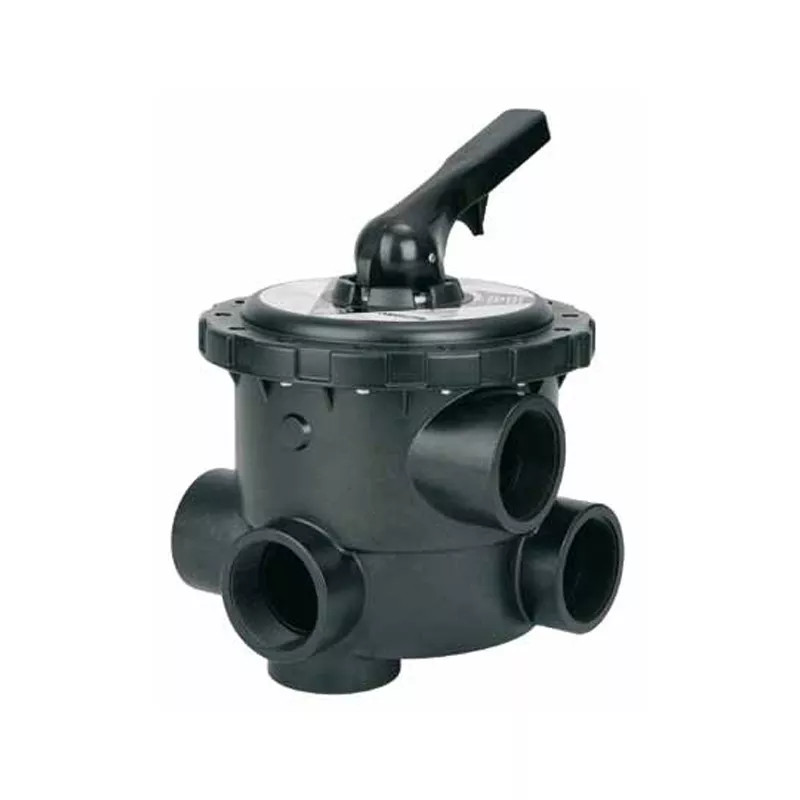

Magnum 3" selector valve without linkages

Selector valve Astralpool Magnum 3"

Six-function side selector valve. Supplied without filter connection. All ports are open and 2 threaded plugs are supplied to select the desired working position.

Specially designed to withstand high working pressures and for coupling to large filters that require special connections. Choose among the models offered in the range, 2 ½'', 3'' and 4'' selector valves.
6-function side selector valve with filter connections. ABS+FV injected body and cover. ABS injected handle. Stainless steel screw locking system. Supplied with two plugs so that the customer can transform the valve into the most suitable type of variation for the installation.

Specially designed to withstand high working pressures and for coupling to large filters that require special connections. Choose from the models offered in the range, 2 ½", 3" and 4" selector valves.

Features Valve 28515:

• 2 ½" and 3" models: ABS and fibreglass body and cover; PPO manifold; EPDM sealing gaskets and stainless steel metal parts.
• 4" model with polyurethane cover, handle and manifold (BSP thread).
• 6-way manual selector valves.
• BSP or NPT threads for 2 ½" and 3" models.
• Raised handle positioners to avoid dirt accumulation (3" and 4" models).
• Improved shaft sealing system.
• Low load losses.
• Maximum working pressure: 3,5 kg/cm2
