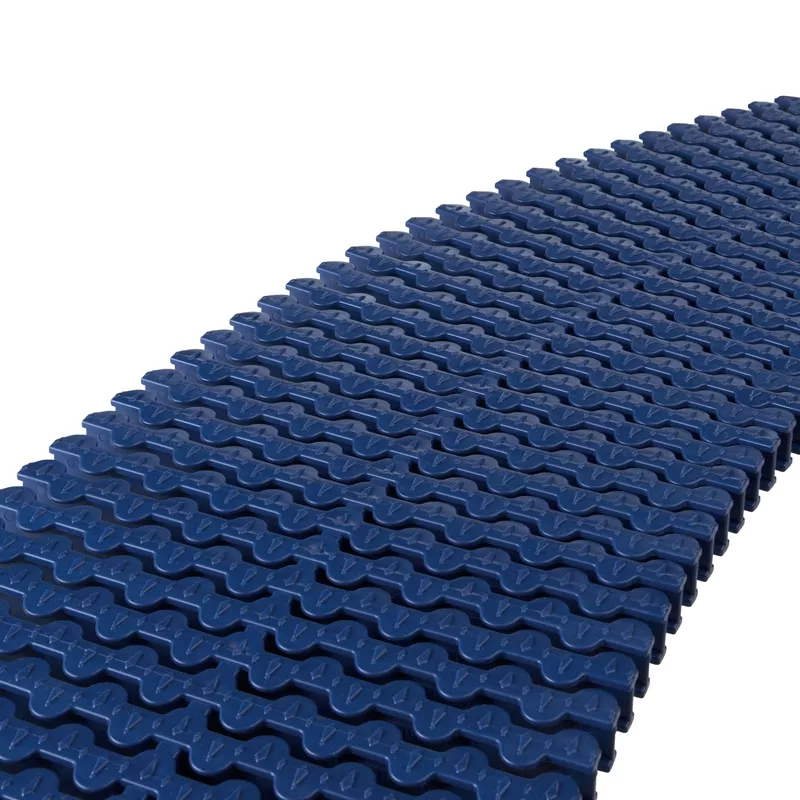

Cross grille module navy blue for curves Astralpool 22/295 mm
ref: 02RE34192-CL60
- Multi-purpose overflow grating for both CURVES AND STRAIGHT , navy blue colour
- Cod. 34192-CL60
- Manufacturer Astralpool
- Height 22 mm Width 295 mm
- Product certified by the EN-13451-1 safety standard
- Made of UV stabilised polypropylene
- Union by tightening coupling between modules
- 52 units per metre
€0.93
IVA included
Bought together Usually
Actual product
Items:
1
Total price:
€0.93
Technical characteristics
Grating Astralpool 34192-CL60
Transversal grating specially designed for pools with curves around the perimeter. Made of polypropylene for protection against UV rays.
The range is composed of 5 colours for a better adaptability to the aesthetic needs of your pool. The range also offers two different heights and five different lengths. A real advantage for the construction of your pool overflow.
The product is certified to the EN-13451-1 safety standard (8 mm).
The modules are reversible in the 35 mm height model.
It is recommended to build the overflow channel 5mm wider than the grating so that it can be easily adapted and avoid possible expansion.
how are the gratings joined?
These gratings are joined together by means of a tightening coupling between modules.
how do I know how much I need?
Each linear metre is made up of 52 units.

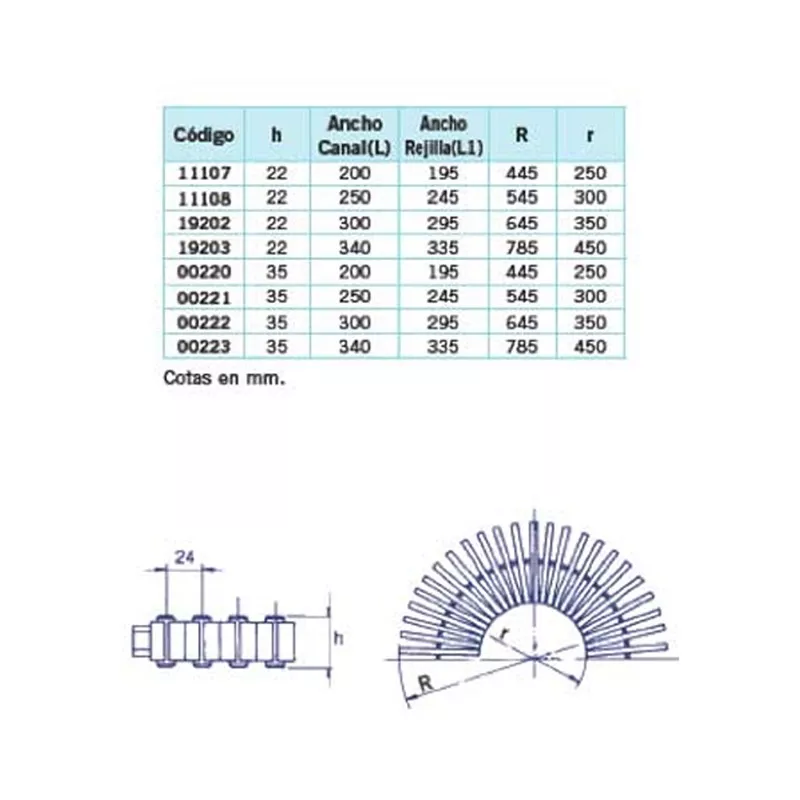

The measurements are: height 22 mm and width 295 mm.
Data Sheet
- High
- 22 mm
- Width
- 295 mm
- Colour
- Colour
- Type
- Grid
