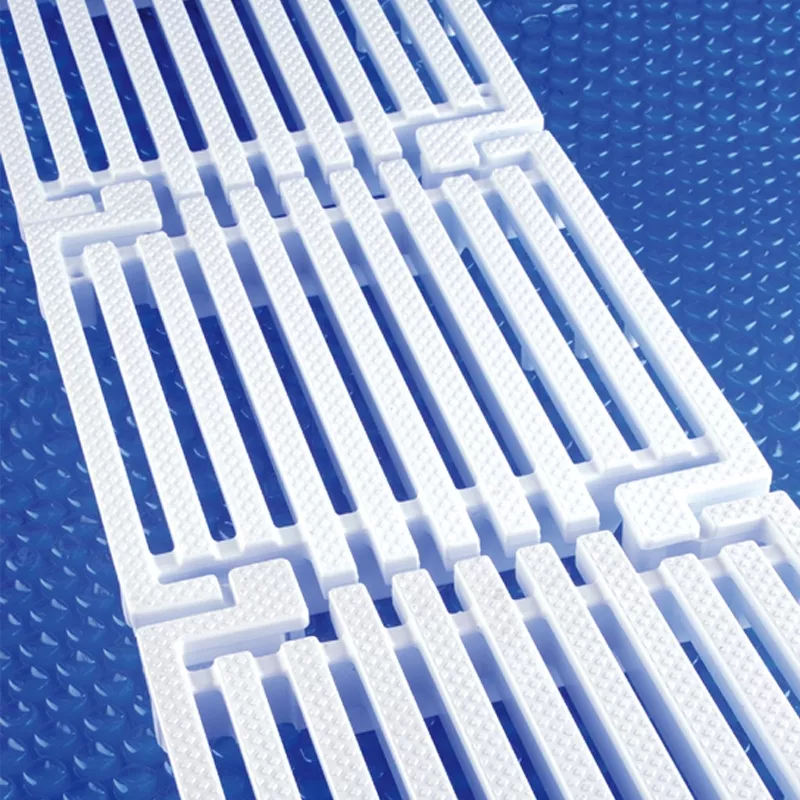

Grating for pool overflow longitudinal plate 24/245 mm.
- Longitudinal overflow grille white colour
- Cod. 05582
- Height 24 mm. Width 245 mm.
- Made of UV stabilised PP (homopolymer)
- Modules with male and female anchorages for easy and quick assembly
- 5 units are 1,024 mts
Bought together Usually
Technical characteristics
Grille Astralpool 05582
Made of UV-stabilised PP (Polypropylene). White colour throughout the range. It is recommended to build the overflow channel 5mm wider than the grating so that it can be easily adapted and avoid possible dilatation. The longitudinal design of this model ensures the complete assimilation of the sheet of water, preventing it from passing through the multiple transversal channels that it finds in its path, keeping the floor around the pool practically dry. The flexibility of its units allows radii of up to 5 m.
how are they joined?
They are joined by male-female couplings on the same plate.
how do I know how many I need?
- 5 units make 1.024 metres.
- Height: 24 mm
- Width: 245 mm
Data Sheet
- High
- 24 mm
- Width
- 245 mm
- Colour
- White
- Type
- Grid
