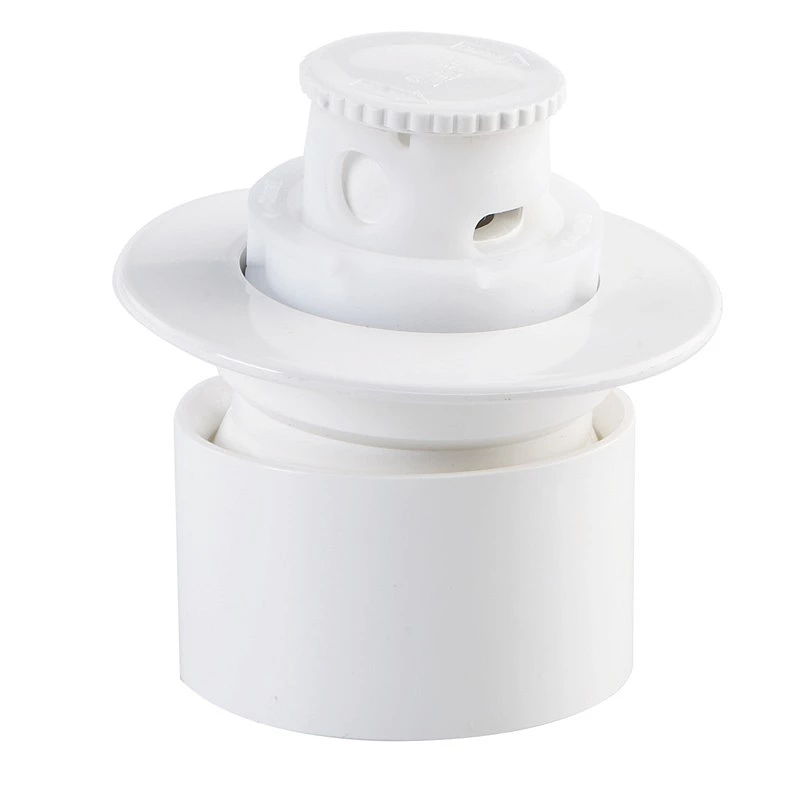

Net'N'Clean concrete nozzle with swivel joint

NET'N'CLEAN nozzle with swivel joint

Designed for glass-lined concrete pools. AstralPool has developed a range of nozzles to meet the needs that arise. For in-ground pools, we offer the variants of the swivel or fixed nozzle. Both models incorporate the possibility of the round hole or the horizontal slot (wide water jet avoiding intermediate areas without sweeping, recommended for the bottom of the pool).
They are quick and easy to install by gluing them to the inside of the PVC pipe previously cut flush with the bottom of the pool. In addition, the ball joint nozzles (for concrete pools) have the advantage over other nozzles on the market of being able to oscillate in their housing, which makes it possible to correct a deviation of up to 8º in the inclination of the PVC pipe with respect to the bottom of the pool.
Different finishes can be chosen from a range of colours, so that the nozzles blend in better with the bottom of the pool.

what is NET'N'CLEAN?

The Net'n'Clean system consists of a series of nozzles that are installed on the bottom of the pool - depending on the size and shape of the pool there will be more or less nozzles - as well as one or more distribution valves that direct the pressurised water through each branch of nozzles sequentially.
The water comes out of the nozzles at full pressure and causes the dirt from the bottom to rise to the surface of the pool where it is collected by the filtration system (skimmer or overflow).

where can NET'N'CLEAN be installed?

In any type of newly built pool.
There are two basic models of Net'n'Clean nozzles in various versions: a model for installation in in-ground pools (concrete with gresite etc.) and a model for liner pools (prefabricated or panel pools with a concrete floor). They are normally installed when the pool is built.

what does the user have to do?

The operation of Net'n'Clean is very simple for the pool user: he does not have to worry about anything at all. If the construction and installation design is correct, the system will carry out the cleaning work without the owner or user noticing.
You will completely forget the problems that cleaning your pool used to cause.

what are the advantages?

The integrated Net'n'Clean system, apart from completely cleaning your pool, whatever its shape or use, also allows the chemical products to act more effectively, thanks to their better distribution in the water. In the same way, heating costs are reduced, as the heated water can be introduced through the lower nozzles, achieving a more homogeneous distribution of the water temperature. In addition, the sometimes cumbersome installation of automatic pool cleaners is eliminated.
In a word: With the minimum energy and therefore the minimum cost, the integrated Net'n'Clean system completely cleans all types of
pools.
