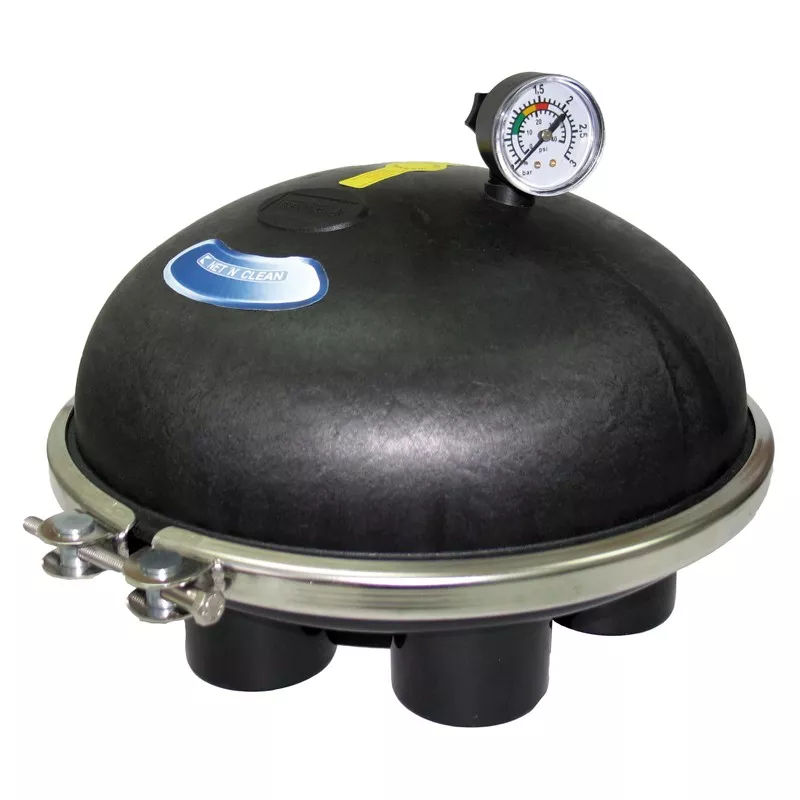

Net'N'Clean distribution valve D.63 mm

Distributor valve

The distribution valve is responsible for distributing the water to the sweeping nozzles. There are two basic models: the "Net'n'Clean", for small volume pools with fully hydraulic operation.
The Net'N'Clean is an efficient cleaning system, consisting of a six-way distributor valve, which receives the water from a suction system independent of the filtration system and distributes it sequentially to a series of nozzles located at the bottom of the pool. This type of distribution from the bottom keeps the particles in suspension so that they are collected by the skimmer and sump and retained by the filter.

Net'N'Clean features

• Fully hydraulic mechanism.
• Easier assembly and maintenance: water inlet at the bottom.
• It has 6 outlets of Ø63 (European connection) or Ø1 1/2" (USA connection).
• Closing with a strap.
• Easy regulation of the actuation time of each outlet by means of an easily accessible device that also serves to stop the valve at the desired nozzle branch without affecting the valve's internal mechanism.
• The spool valve is easy to maintain, as no tools are required for assembly and disassembly, and because the number of internal parts has been greatly reduced.
• The valve is more resistant to oxidation as the only metal parts are made of titanium, resistant to salt treatment.
• Each outlet can be fitted with 2, 3 or 5 nozzles depending on their location in the pool and the outlet diameter of each of them.

what is NET'N'CLEAN?

The Net'n'Clean system consists of a series of nozzles that are installed on the bottom of the pool - depending on the size and shape of the pool there will be more or less nozzles - as well as one or more distribution valves that direct the pressurised water through each branch of nozzles sequentially.
The water comes out at full pressure through the nozzles and causes the dirt from the bottom to rise to the surface of the pool where it is collected by the filtration system (skimmer or overflow).

where can NET'N'CLEAN be installed?

In any type of newly built pool.
There are two basic models of Net'n'Clean nozzles in various versions: a model for installation in in-ground pools (concrete with gresite etc.) and a model for liner pools (prefabricated or panel pools with a concrete floor). They are normally installed during the construction of the pool.

what does the user have to do?

The operation of Net'n'Clean is very simple for the pool user: he does not have to worry about anything at all. If the construction and installation design is correct, the system will carry out the cleaning work without the owner or user noticing. You will completely forget about the hassle of cleaning your pool in the past.

what are the advantages?

The integrated Net'n'Clean system, apart from completely cleaning your pool, whatever its shape or use, also allows the chemical products to act more effectively, thanks to their better distribution in the water. In the same way, heating costs are reduced, as the heated water can be introduced through the lower nozzles, achieving a more homogeneous distribution of the water temperature. In addition, the sometimes cumbersome installation of automatic pool cleaners is eliminated.
In a word: With the minimum energy and therefore the minimum cost, the integrated Net'n'Clean system completely cleans all types of
pools.
