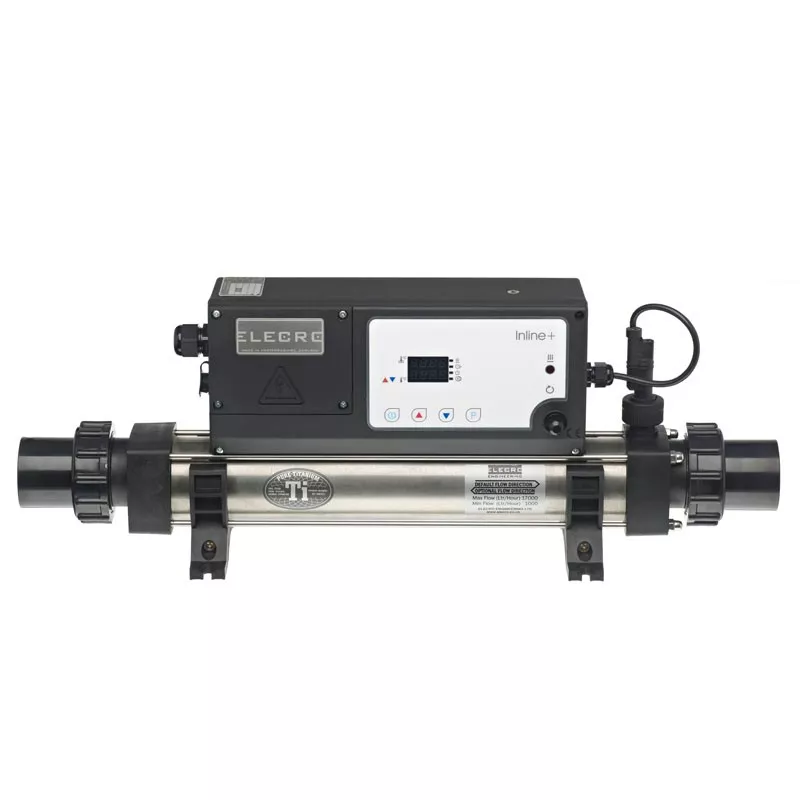

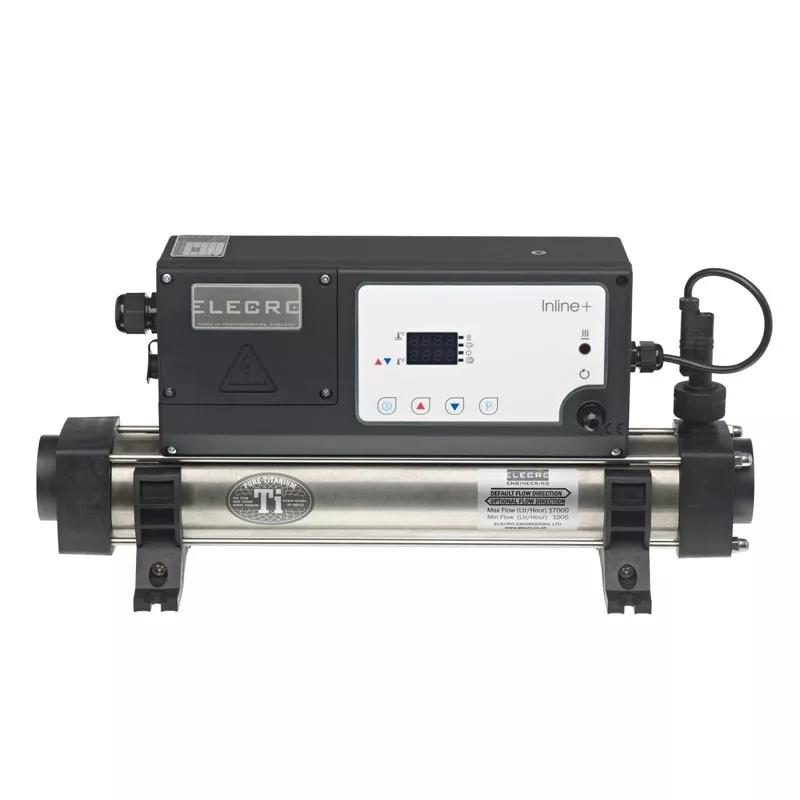

Swimming Pool Heater Elecro Digital Titanium 18 kw tri

ref: 08CA831011TOD
  • Pool heater Elecro mod. In-Line
  • Cod. 8T3CD
  • 18KW three-phase power
  • Titanium heating element and stainless steel casing. BS 316 STAINLESS STEEL CASING
  • Digital thermostat 0-45ºC and safety thermostat 55ºC
  • Easy to install upright or wall mounted, simple to use, a durable and robust solution
  • Dimensions length 592 mm. height 220 mm and width 160 mm
  • Female connections 1.5" BSP with adapters for 50 mm Ø pipes

Free shipping
Free Shipping + info

Technical characteristics

MAIN CHARACTERISTICS

  • Power of 18 kw three-phase.
  • Easy to install
  • Simple to use
  • Robust and durable
  • Safe and reliable
  • Can be used in low or high water flow systems
  • Digital control provides increased accuracy and "heating priority" function
  • Direct flow" design for easy installation, lower pressure loss and higher flow rate
  • Ultra-reliable digital flow signal
  • Titanium heaters
  • Stainless steel tube BS 316 EN(1.4432)
  • Available with seawater compatible titanium tubing
  • Ultra-reliable flow detector allows safe use from 1000 litres per hour only
  • Floor or wall mounted
  • Safety thermostat with manual reset button
  • 3 years warranty
  • 100% efficiency for the entire operational life of the product


The innovative and modern design of the Elecro In-Line+ heater offers superior efficiency, precision and reliability.

All heaters comprise unique and proven loop heaters, through which the water flows in a vortex.
This technology provides superior efficiency and an extended life expectancy for the product, allowing it to prevent the formation of deposits on the heaters.

The In-Line+ heater is a superior version of the proven heater. It offers the benefits of the Evolution model with increased accuracy and reliability thanks to its digital thermostat that includes the "heating priority" function. When activated, the heater starts the filtration pump and the heating process if necessary.

The heater can be floor or wall mounted. The inlet and outlet connections are designed to fit metric pipe standards. In addition, the shape of the connections eliminates the risk of air bubbles forming inside the heater.

Data Sheet

Type of current
Three-phase
Power input (at 15ºC)
16 - 18 kw
Resistance in
Titanium
Thermostat
Digital
