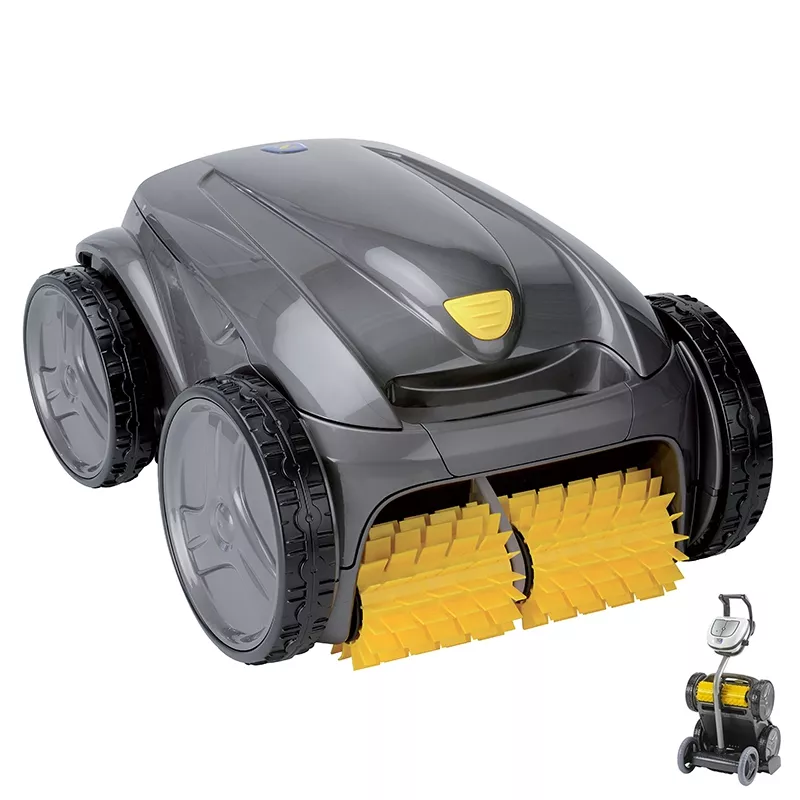

Zodiac Vortex OV 3400 pool cleaner robot

* sending a photo of the old robot

Electric cleaner OV3400 for cleaning the bottom, walls and water line. Large capacity rigid filter with access from the top of the cleaner. Supplied with transport trolley. On Quimipool you will be able to discover a wide range of robot pool cleaner Zodiac so that you can compare which one best suits your needs. In the table below we offer you a comparison between the OV3300, the OV3400 and the OV3500.

What pools are automatic pool cleaners for? Zodiac OV3400?

• Type: Private in-ground pools and above-ground pools with rigid walls up to 12 x 6 m (40 x 20 ft).
• Shapes: Rectangular, oval, free-form shapes.
• Bottoms: Flat, gentle slope, compound slope, diamond point.
• Coatings: Gresite, liner, polyester hull, reinforced PVC, painted concrete.

General Background Cleaner Zodiac OV3400

• Cleaning zone: Bottom / walls / water line.
• Number / Duration of cleaning cycles: 1 cycle (only bottom and bottom/ walls/ water line) / 2h30.
• Power source: Autonomous connected to 230 V.
• Displacement: Preprogrammed.
• Drive system: 2-wheel drive.
• Transmission: Gears
• Brushes: Yes
• Lift System: No
• Filter full indicator: No
• Remote control: No
• Safety: Beach system, automatic out-of-water stop, electronic motor protection.

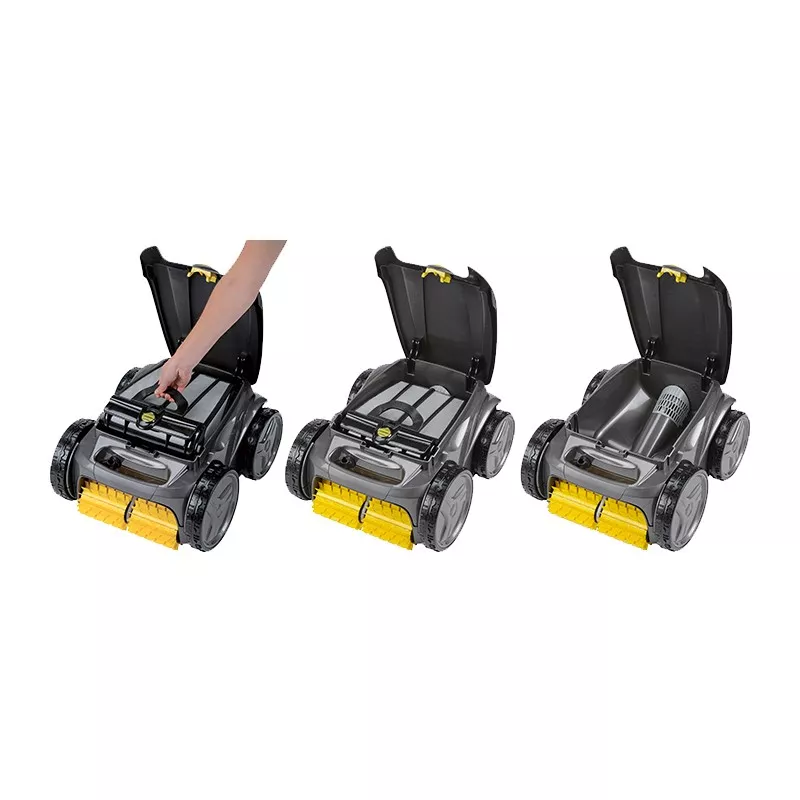

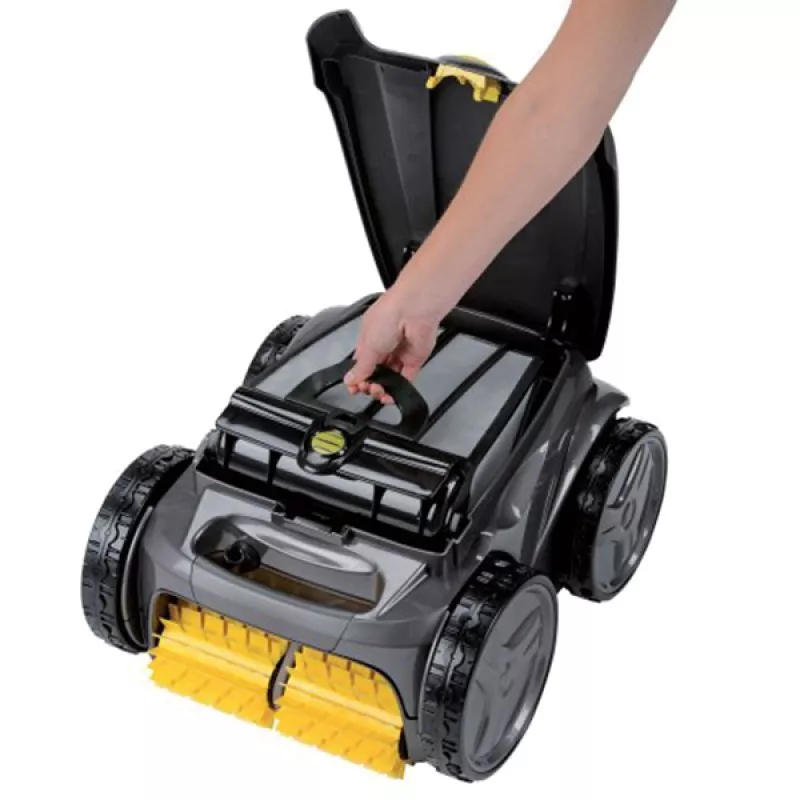

• Filter Type / Access: Rigid filter with access from the top of the cleaner.

Characteristics of the Zodiac OV3400

• Number of motors: 3
• Control system supply voltage: 200-240 VAC ; 50 Hz
• Power supply voltage of the cleaner: 30 VDC
• Power consumption: 150 W
• Cable length: 18 m.
• Dimensions of the cleaner (L x W x H): 43 x 48 x 27 cm.
• Packing dimensions (L x W x H): 56 x 56 x 46 cm.
• Weight of the cleaner: 9.5 kg (weight with packaging 19.2 kg).
• Filtering surface / Filtration level: 1280 cm2 / 100μ
• Filter capacity: 5 L.
• Cleaning coverage: 27 cm
• Pump flow rate: 16 m3 / h.

Consult the best products of automatic pool cleaners of the market, with a great quality/price ratio.

	VORTEX 4	OV 3400	OV 3480	OV 3500	OV 3505
BACKGROUND	Yes	Yes	Yes	Yes	Yes
WALLS	Yes	Yes	Yes	Yes	Yes
WATERLINE	Yes	Yes	Yes	Yes	Yes
SURFACES	Gresite, concrete, liner, polyester	Gresite, concrete, liner, polyester	Gresite, concrete, liner, polyester	Gresite, concrete, liner, polyester	Gresite, concrete, liner, polyester
ACTIVE BRUSHES	2 strikers	2 strikers	2 strikers	2 strikers	2 strikers
FILTRATION SYSTEM	100 μ	100 μ	100 μ	100 μ	100 μ
FILTER CAPACITY	5 liters	5 liters	5 liters	5 liters	5 liters
FILTER ACCESS	Superior	Superior	Superior	Superior	Superior
FILTER FULL INDICATOR	No	No	No	No	No
CLEANING CYCLES	5	1	2 (1 for bottom only and 1 for bottom, walls and water line)	6 (3 bottom only and 3 bottom, walls and waterline)	6 (3 bottom only and 3 bottom, walls and waterline)
DURATION OF THE CYCLE	1 / 1,5 / 2 / 2,5 / 3,5 hours	2.5 hours	1.5 / 2.5 hours	1 / 1.5 / 2 / 2 / 2.5 / 3 hours	1 / 1.5 / 2 / 2 / 2.5 / 3 hours
SWIVEL	No	No	No	No	No
LIFT SYSYEM	No	No	No	No	No
CABLE LENGTH	21 meters	18 meters	18 meters	18 meters	18 meters
NO. ENGINES	3	3	3	3	3
REMOTE CONTROL	Yes	No	No	Yes	Yes
TRANSPORT TROLLEY	Yes	Yes	Yes	Yes	Yes
WEIGHT	9.5 kg	9.5 kg	9.5 kg	9.5 kg	9.5 kg
MAXIMUM POOL LENGTH	12 meters	12 meters	12 meters	12 meters	12 meters
SECURITY	Beach system, automatic stop out of the water	Beach system, automatic stop out of the water	Beach system, automatic stop out of the water	Beach system, automatic stop out of the water	Beach system, automatic stop out of the water
WARRANTY	3 years	3 years	3 years	3 years	3 years
