Automatic Pool Cleaner Zodiac OV3300
ref: 07LAEWR000022
ean13: 9317545014302
- Cleaner Zodiac OV 3300
- Cod. RV000022
- For pools up to 10x5 metres.
- Cleans bottom, walls and waterline.

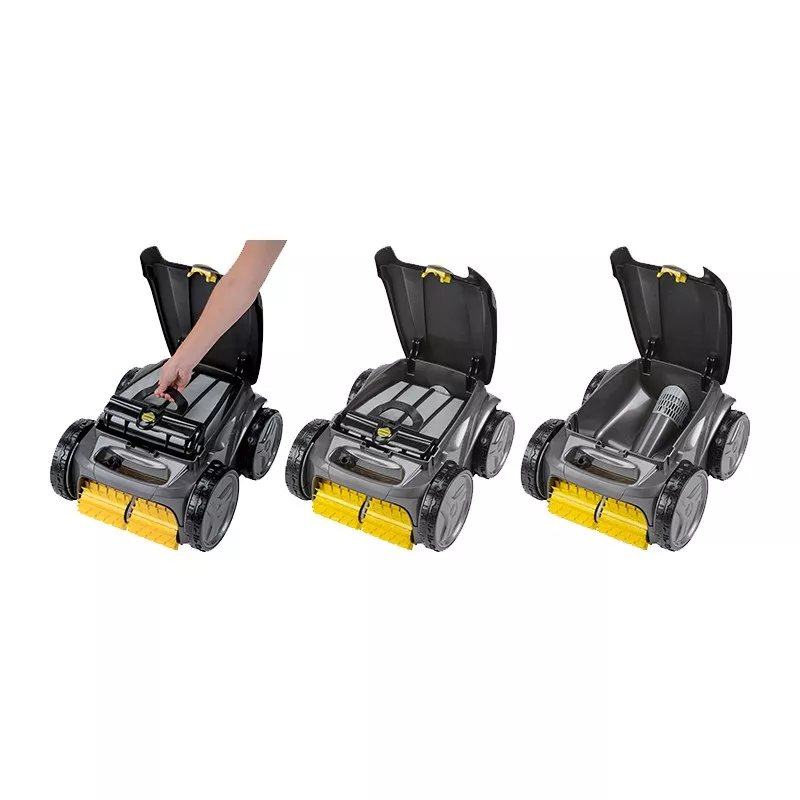

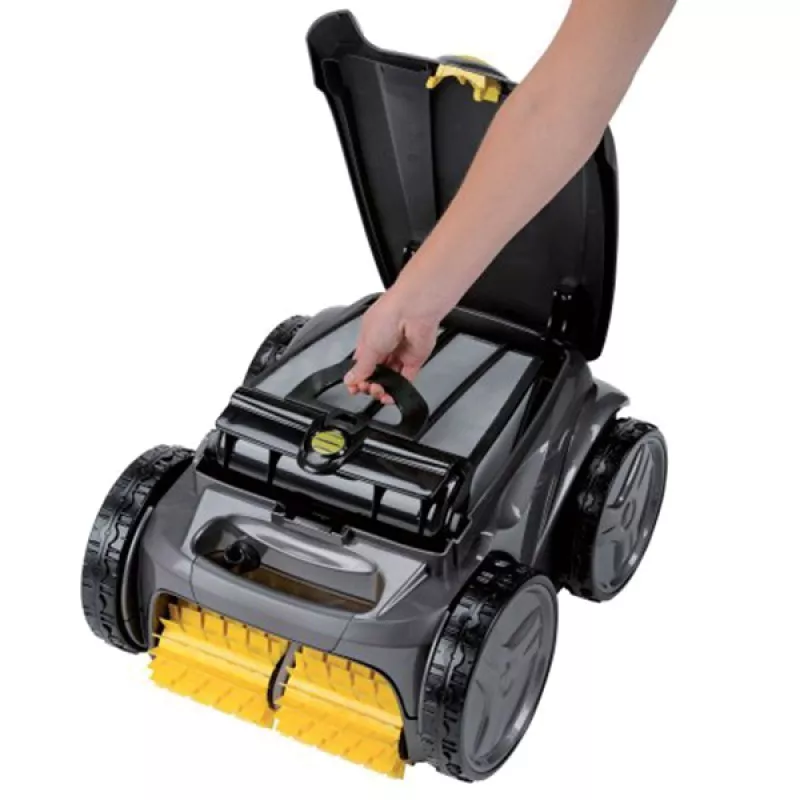

- With top access rigid filter for easy and comfortable cleaning
- Cyclonic suction system without loss of suction
- With 15 mts of cable and 100 micron filter
eQUIPMENT DISCONTINUED!
The new model that replaces it is the ZODIAC OV 3480
Technical characteristics
Description Cleaner Zodiac OV3300
Electric cleaner OV3300 for cleaning the bottom, walls and water line. Large capacity rigid filter with access from the top of the cleaner. No transport trolley
Suitable for:
- Type: private inground pools and above ground pools with rigid walls up to 10 x 5 m.
- Shapes: Rectangular, oval, free-form.
- Bottoms: Flat, gentle slope, compound slope, diamond point.
- Coatings: Gresite, liner, polyester shell, reinforced PVC, painted concrete.
Generalities Cleaner Zodiac OV3300
- Cleaning zone: Bottom / walls / water line.
- Number / Duration of cleaning cycles: 1 cycle (only bottom and bottom / walls / water line) / 2h30.
- Power source: Autonomous connected to 230V.
- Displacement: Pre-programmed.
- Drive system: 2 wheel drive.
- Transmission: Gears
- Brushes: Yes
- Lift System: No
- Filter Full Indicator: No
- Remote Control: No
- Safety: Beach system, automatic out of water shutdown, electronic motor protection.
- Filter Type / Access: Rigid filter with access from the top of the cleaner.
Technical Characteristics Zodiac OV3300
- Number of motors: 3
- Control system power supply voltage: 200-240 VAC ; 50 Hz
- Power supply voltage of the cleaner: 30 VDC
- Power consumption: 150 W
- Cable length: 15 m.
- Dimensions of cleaner (L x W x H): 43 x 48 x 27 cm.
- Packaging dimensions (L x W x H): 69 x 43 x 43 x 46 cm.
- Weight of cleaner: 9.5 kg (Weight with packaging 19.2 kg).
- Filtering surface / Filtration level: 1280 cm2 / 100μ
- Filter capacity: 5 L.
- Cleaning coverage: 27 cm
- Pump flow rate: 16 m3 / h.
 |
 |
 |
|
| VORTEX OV RANGE | OV3300 | OV3400 | OV3500 |
| General information | |||
| Maximum recommended pool | 10 x 5 m | 12 x 6 m | 12 x 6 m |
| Cleaning area | Bottom / walls | Bottom / walls | Bottom / walls / waterline |
| Number / Duration of cycles | 1 cycle / 2,5 h | 1 cycle / 2,5h | 6 cycles / 1h-1,5h-2h (bottom) 2h-2,5h-3h (bottom and wall) |
| Power supply | Autonomous at 230 V | Autonomous at 230 V | Autonomous at 230 V |
| Displacement | Pre-programmed | Pre-programmed | Pre-programmed |
| Drive system | 2-wheel drive | 2-wheel drive | 2-wheel drive |
| Transmission | Gears | Gears | Gears |
| Brushes | Yes | Yes | Yes |
| Lift System | No | No | No |
| Filter Full Indicator | No | No | No |
| Remote control | No | No | Yes |
| Transport trolley | No | Yes | Yes |
| Safety | Beach system, automatic out-of-water stop | Beach system, automatic out-of-water stop | Beach system, automatic stop out of water |
| Filter type / access | Rigid top access filter | Rigid top access filter | Rigid top access filter |
| Technical specifications | |||
| Number of motors | 3 | 3 | 3 |
| Supply voltage | 200-240 VAC 50Hz | 200-240 VAC 50Hz | 200-240 VAC 50Hz |
| Power supply voltage for bottom cleaner | 30 VDC | 30 VDC | 30 VDC |
| Power consumption | 150 W | 150 W | 150 W |
| Cable length | 15 m | 18 m | 18 m |
| Weight of cleaner | 9,5 kg | 9,5 Kg | 9,5 Kg |
| Filtering surface / Filtration level | 1280 cm2 / 100 micron | 1280 cm2 / 100 micron | 1280 cm2 / 100 micron |
| Filter capacity | 5 L | 5 L | 5 L |
| Cleaning coverage | 27 cm | 27 cm | 27 cm |
| Pump flow rate | 16 m3/h | 16 m3/h | 16 m3/h |
Data Sheet
- Years of guarantee
- 3 years
- Maximum pool size
- Up to 12-13 m
- Type of cleaning
- Bottom, walls and waterline
- Remote control
- No
- Trolley
- Yes
- Filter type
- Cassette
- No. of engines
- 3
- Metres of cable
- 18 m
- Cable anti-twist
- No
- Cleaning cycle time
- 2.5 hours
- Active brush extra
- No
- Dirty bag indicator
- No
- Type of use
- Private Swimming Pool
- Type of cleaner
- Electric
- no. of cleaning cycles
- 1
